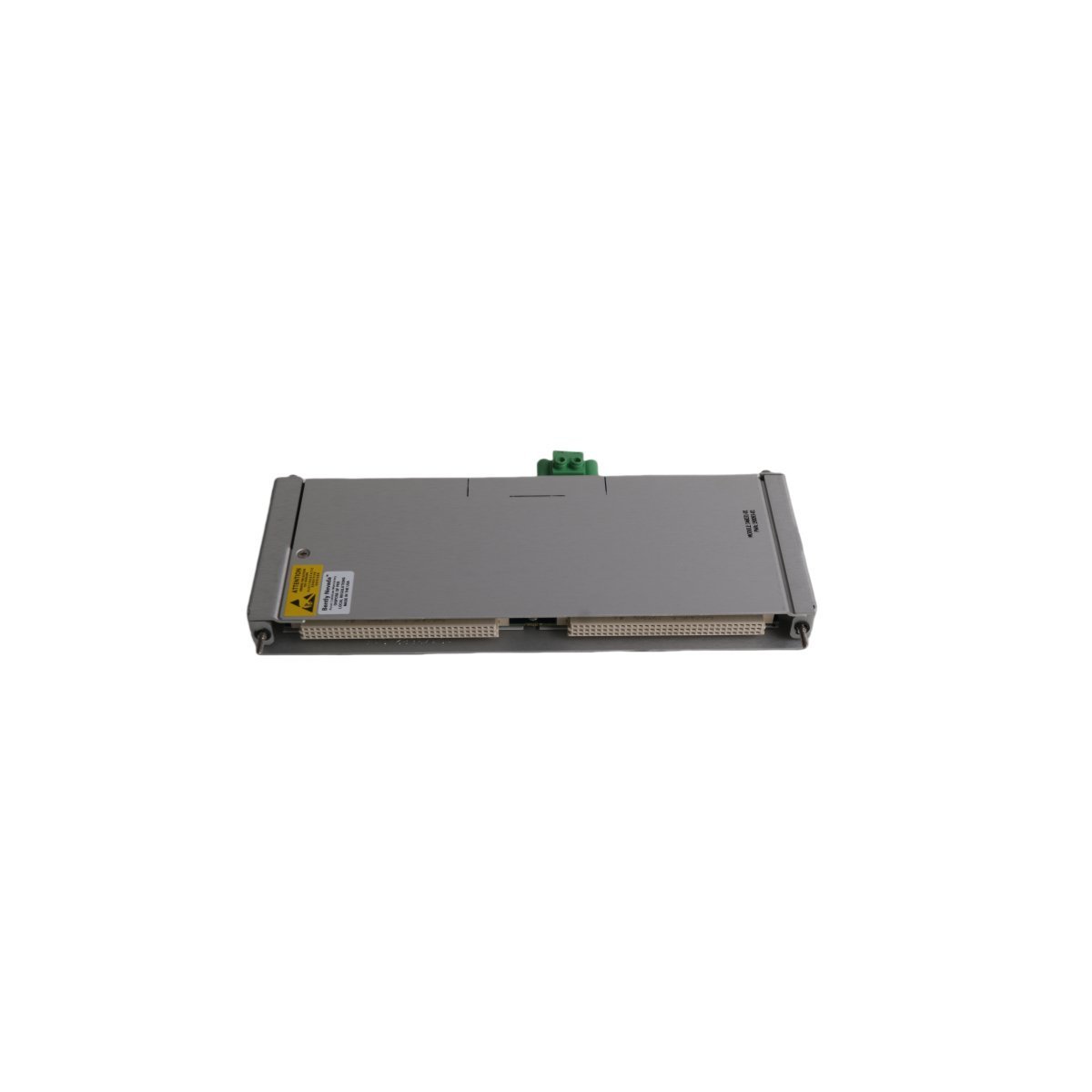

Bently Nevada 146031-01 3500/22 Transient Data Interface Module

The Bently Nevada 146031-01 is a high-performance I/O module for the 3500/22 Transient Data Interface. It enables seamless Ethernet-based communication and high-speed data acquisition for the 3500 Series monitoring system, providing essential transient and steady-state machinery diagnostics for industrial asset management.

Request a Quote

Product Overview

The Bently Nevada 146031-01 serves as the primary communication link between the 3500 monitoring system and compatible software packages, such as System 1 Asset Management and Data Acquisition. This specific component is the I/O module designed for the 3500/22 Transient Data Interface (TDI). It facilitates the high-speed collection of steady-state and transient waveform data, allowing for sophisticated diagnostic analysis of rotating machinery. By processing signals from various proximity probes and seismic sensors, the module enables operators to identify mechanical shifts during machine startup and shutdown phases.

Technical Capabilities

  • Manufacturer: Bently Nevada (Baker Hughes)
  • Series Identification: 3500 Series Vibration Monitoring System
  • Component Type: Transient Data Interface (TDI) I/O Module
  • Part Number: 146031-01
  • Communication Protocol: Support for 10/100 Base-T Ethernet and USB connections
  • Signal Compatibility: Interfaces with dynamic signal inputs for vibration, position, and speed
  • Physical Weight:  0.38 kg
  • Physical Dimensions: 25 cm x 23.5 cm x 4.1 cm
  • Mounting Requirement: Installs in the rear I/O slot of the 3500 rack, directly behind the 3500/22 TDI controller
  • Data Integrity: Provides high-resolution transient captures for orbit, spectrum, and time-base analysis

Operational Applications

Industrial facilities utilize the 146031-01 module to bridge the gap between hardware sensors and digital monitoring platforms. Furthermore, the module plays a critical role in Turbomachinery Instrumentation (TSI) by capturing rapid data changes that standard monitors might overlook. Consequently, maintenance teams can detect early signs of shaft misalignment, rotor unbalance, and bearing degradation. This module is essential for critical assets such as steam turbines, centrifugal compressors, and large-scale cooling fans where unplanned downtime results in significant financial loss.
