SKU: KJ4001X1-CH1 12P1811X032

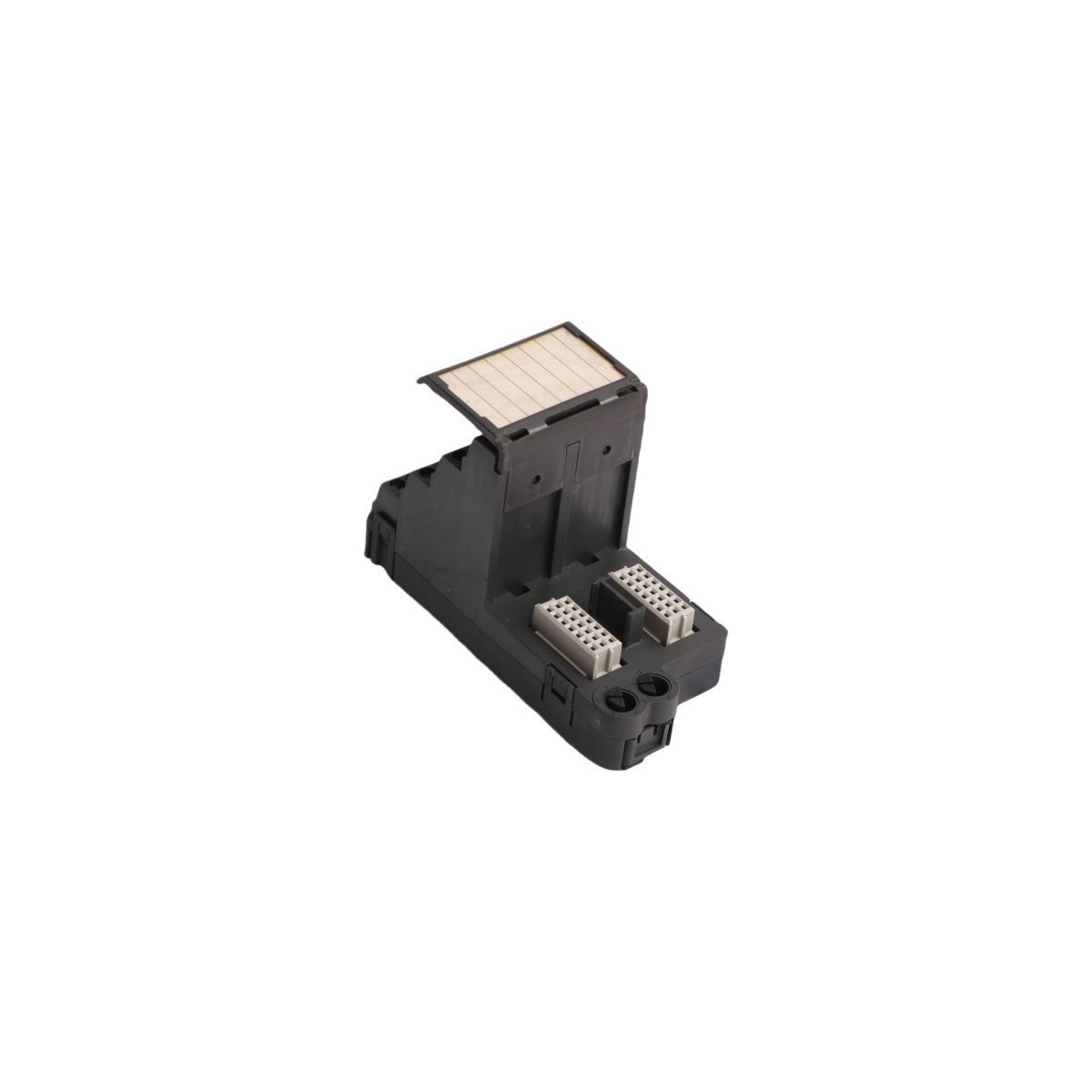

Emerson DeltaV KJ4001X1-CH1 12P1811X032 RTD Device Terminal Block

The Emerson KJ4001X1-CH1 (12P1811X032) is an 8-channel RTD terminal block for the DeltaV M-series I/O subsystem. It supports 2, 3, and 4-wire sensor configurations, providing high-accuracy temperature signal termination and lead-wire compensation for critical process control applications.

Product Description

The Emerson KJ4001X1-CH1, also identified by part number 12P1811X032, functions as a specialized 8-channel RTD (Resistance Temperature Device) terminal block designed for the DeltaV M-series I/O subsystem. This module provides the critical physical interface between field-mounted temperature sensors and the controller’s analog input cards. Because temperature regulation in process industries requires high levels of signal integrity, the KJ4001X1-CH1 incorporates precision termination points that minimize contact resistance and prevent signal degradation.

Furthermore, this terminal block simplifies complex wiring by supporting 2-wire, 3-wire, and 4-wire RTD configurations. The board features integrated compensation for lead-wire resistance, which ensures that the DeltaV system receives an accurate thermal profile of the process. Since the unit mounts directly onto the I/O carrier, it establishes a secure electrical path to the backplane while maintaining galvanic isolation between field circuits. This robust design effectively shields sensitive microprocessor logic from the common-mode noise and electrical transients often encountered in heavy industrial environments.

Key Technical Characteristics

Manufacturer: Emerson (DeltaV Series)
Model Identification: KJ4001X1-CH1
Order Number: 12P1811X032
Module Type: RTD Terminal Block (M-Series)
Capacity: 8 Independent Input Channels
Sensor Compatibility: 2-wire, 3-wire, and 4-wire RTDs (e.g., Pt100, Cu10)
Mounting Type: Carrier-mounted (Plug-and-play into DeltaV I/O racks)
Environmental Rating: Standard industrial indoor protection
Terminal Style: Screw-type compression terminals for secure field connections
Isolation: Integrated circuit protection between field wiring and internal I/O bus

Industrial Applications

Instrumentation technicians and automation engineers deploy the KJ4001X1-CH1 to manage thermal monitoring across diverse plant architectures. Specifically, the module supports the following tasks:

Heat Exchanger Monitoring: Tracking inlet and outlet temperatures to optimize energy transfer efficiency.
Reactor Vessel Control: Providing the high-accuracy feedback necessary for managing exothermic chemical reactions.
Storage Tank Management: Ensuring stable temperature profiles for volatile fluids and liquefied gases.
HVAC Process Integration: Monitoring ambient and duct temperatures for large-scale industrial climate control systems.
