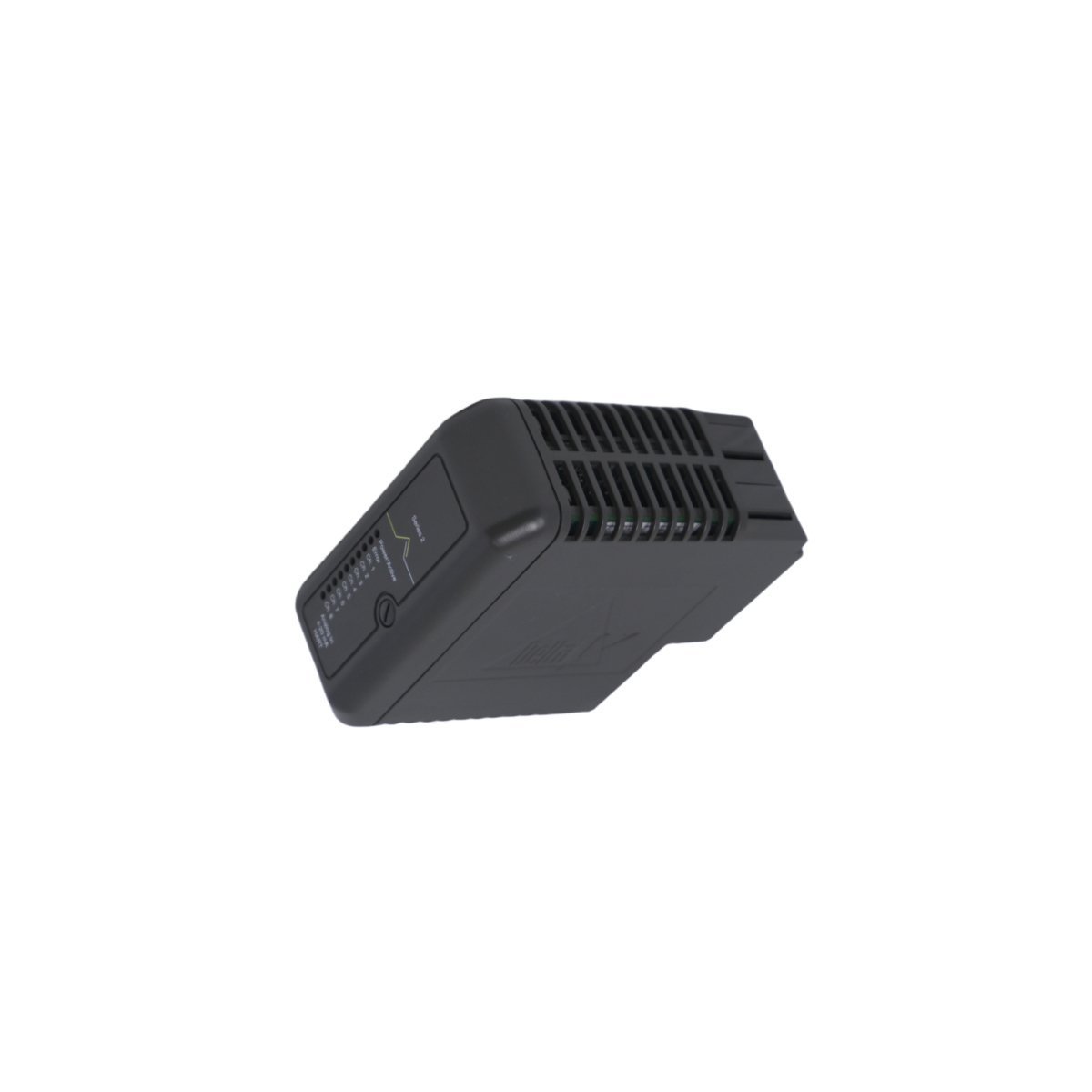

Emerson KJ3222X1-BA1 12P2532X072 DeltaV VE4003S2B2 Terminal Block

Technical Overview

The Emerson KJ3222X1-BA1, also identified by part numbers 12P2532X072 and VE4003S2B2, functions as a high-density 32-channel mass termination block for the DeltaV distributed control system (DCS). This component provides the physical interface between field wiring and the DeltaV I/O environment, specifically designed for use with 32-channel S-series I/O cards. Because it facilitates organized signal routing, the KJ3222X1-BA1 ensures that high-density data remains manageable and electrically isolated. Consequently, this module acts as a critical link in large-scale automation architectures where space efficiency and signal integrity are primary requirements.

Operational Functionality

This termination block mounts directly onto the DeltaV I/O carrier, allowing the corresponding I/O interface to seat firmly against the field wiring terminals. It simplifies complex wiring tasks by providing clearly labeled terminal points for up to 32 discrete or analog signals. Furthermore, the VE4003S2B2 incorporates fused protection for individual channels, which prevents localized field faults from damaging the expensive I/O card or affecting adjacent loops. By utilizing a modular “plug-and-play” design, the terminal block allows maintenance personnel to replace I/O cards under power—a feature known as “hot-swapping”—without disturbing the permanent field wiring.

Key Technical Characteristics

• Channel Density: Supports up to 32 independent channels, maximizing rack space for high-count I/O applications.
• Connection Type: Features secure screw-terminal or tension-clamp connections for robust mechanical stability in high-vibration environments.
• Hot-Swappable Design: Permits the removal and insertion of I/O modules without powering down the carrier or disconnecting field leads.
• Integrated Protection: Includes individual channel fusing or current-limiting circuitry to safeguard the internal system electronics.
• Signal Compatibility: Optimized for S-series 32-channel Discrete Input, Discrete Output, and Analog Input cards.
• Mechanical Keying: Utilizes physical keying mechanisms to ensure that only the correct type of I/O module can be installed on the terminal block.

Primary Industrial Applications

• Chemical Processing: Managing high-density discrete signals for valve status and motor start/stop sequences.
• Oil and Gas Refining: Providing the interface for hundreds of temperature and pressure sensors across vast distillation units.
• Pharmaceutical Manufacturing: Ensuring precise, isolated signal transmission for batch control systems where data accuracy is non-negotiable.
• Water and Wastewater: Consolidating remote telemetry signals into a centralized DeltaV controller for regional pump station management.

Technical Specifications

• Brand: Emerson
• Model Number: KJ3222X1-BA1
• Alternate Part Numbers: 12P2532X072 / VE4003S2B2
• System Series: DeltaV S-series
• Module Type: 32-Channel Terminal Block
• Power Requirements: Nominal 24 VDC Ambient Temperature: -40°C to +70°C
• Weight: 0.55 kg
