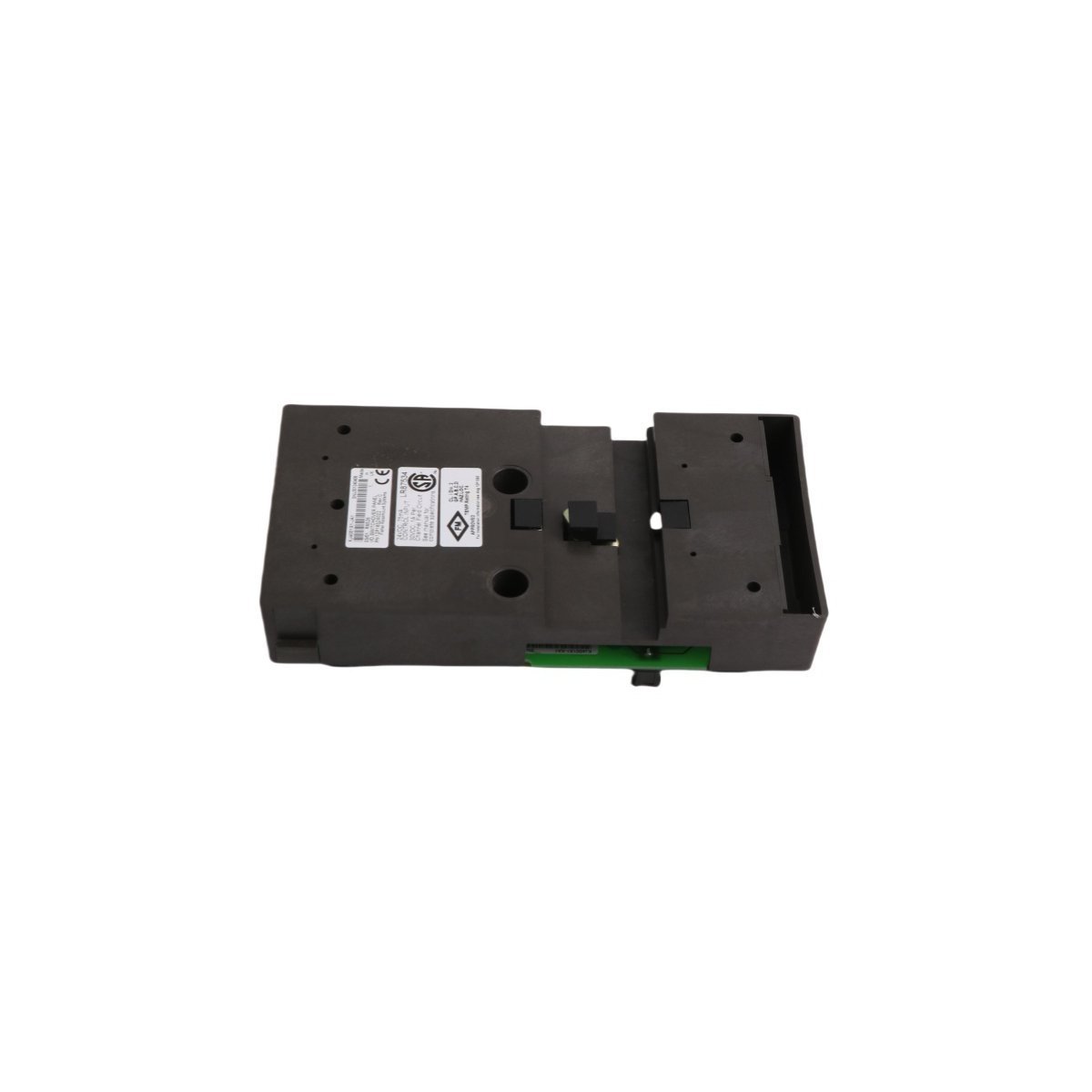

Emerson KJ4001X1-JA1 12P1832X022 Redundant SLS Terminal Block

The Emerson KJ4001X1-JA1 (12P1832X022) is a redundant SLS terminal block designed for the DeltaV SIS safety system. It provides the high-integrity interface required for redundant SLS 1508 logic solvers in SIL 3 applications. This module supports hot-swapping and ensures continuous safety-critical monitoring for emergency shutdown and fire and gas systems.

Technical Overview

The Emerson KJ4001X1-JA1, also categorized by part number 12P1832X022, is a specialized Redundant Safety Logic Solver (SLS) Terminal Block designed for the DeltaV SIS (Safety Instrumented System). This component provides the critical physical interface for redundant SLS 1508 logic solvers, which manage safety-critical loops in industrial environments. Because safety systems require maximum availability, the KJ4001X1-JA1 supports a redundant architecture that ensures the safety function remains active even if a single component fails. Consequently, it serves as the foundation for SIL 3 (Safety Integrity Level 3) applications where process downtime or safety risks are unacceptable.

Operational Functionality

This terminal block mounts onto a redundant carrier and accepts two SLS 1508 modules simultaneously. It manages the routing of input and output signals from the field to both logic solvers, allowing them to operate in a 1-out-of-2 (1oo2D) voting configuration. Furthermore, the KJ4001X1-JA1 includes integrated passive circuitry that permits the hot-swapping of a failed logic solver without interrupting the safety loop. By providing dedicated termination points for field sensors and final control elements, the block simplifies the wiring of safety-critical interlocks and emergency shutdown (ESD) valves.

Key Technical Characteristics

Redundancy Support: Specifically engineered to host a pair of SLS 1508 Logic Solvers for high-availability safety monitoring.
SIL 3 Capability: Facilitates the hardware fault tolerance required for Safety Integrity Level 3 loops when used within a DeltaV SIS architecture.
Field Wiring Interface: Provides secure, high-integrity termination points for both digital and analog safety-related I/O.
Passive Design: Utilizes a passive backplane design to increase reliability, as the terminal block itself contains no active logic that could fail.
Hot-Replacement: Allows maintenance teams to replace logic solvers while the process is running, ensuring continuous machinery protection.
Compact Footprint: Optimizes cabinet space by consolidating redundant logic solver connections into a single, specialized block.

Primary Industrial Applications

Emergency Shutdown (ESD): Routing signals for critical valves and actuators that must close instantly during a process excursion.
Fire and Gas Systems (F&G): Connecting flame detectors and gas sensors to a redundant logic solver for rapid facility protection.
Burner Management Systems (BMS): Ensuring the safe start-up, operation, and shutdown of industrial boilers and furnaces.
High-Pressure Protection (HIPPS): Managing the high-speed logic required to protect downstream piping from overpressure events.
