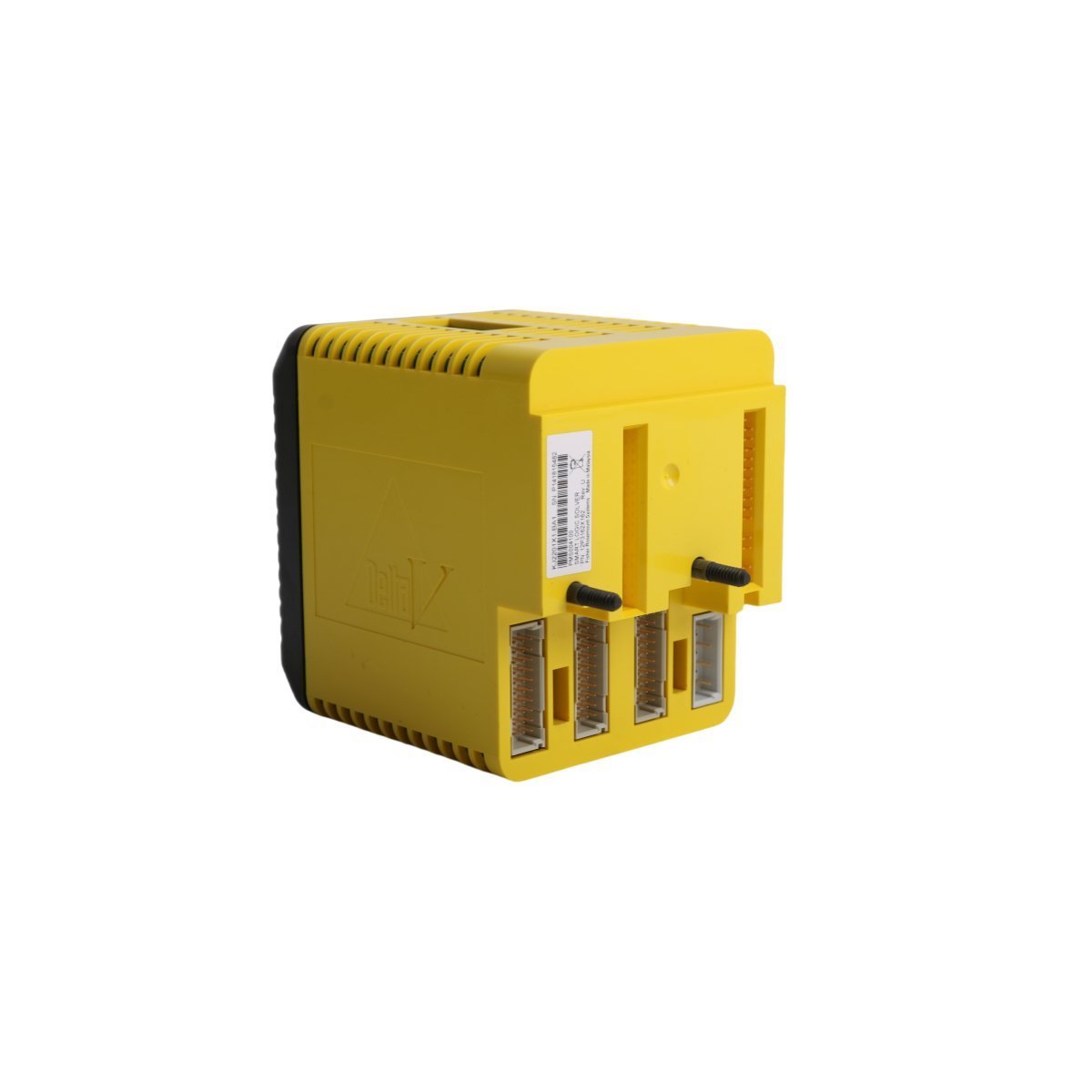

Emerson KJ2201X1-BA1 12P3162C092 SLS1508 VS3202 Analog Input HART Module

The Emerson KJ2201X1-BA1 serves as a foundational component within the DeltaV SIS™ process safety system. This SLS1508 Smart Logic Solver manages critical analog inputs while supporting HART digital communication. It ensures high-integrity monitoring for essential industrial safety loops.

Operational Role and Function

This module provides the intelligence required for Safety Instrumented Systems (SIS). It continuously monitors field sensors for pressure, temperature, and flow variables. The unit processes these signals to execute safety logic independently of the basic control system. Consequently, it maintains plant safety even during primary controller failures.

Key Technical Attributes

• HART Integration: Enables advanced instrument diagnostics and remote configuration through the HART protocol.
• Redundant Capability: Supports redundant configurations to prevent nuisance trips and increase system uptime.
• Safety Integrity: Designed specifically for use in SIL 3 safety applications.
• Real-Time Processing: Delivers high-speed logic execution for rapid response to process upsets.
• Robust Hardware: Operates reliably in harsh industrial environments with a compact form factor.
• Seamless Connectivity: Integrates directly with the DeltaV architecture for centralized safety management.

Technical Specifications
