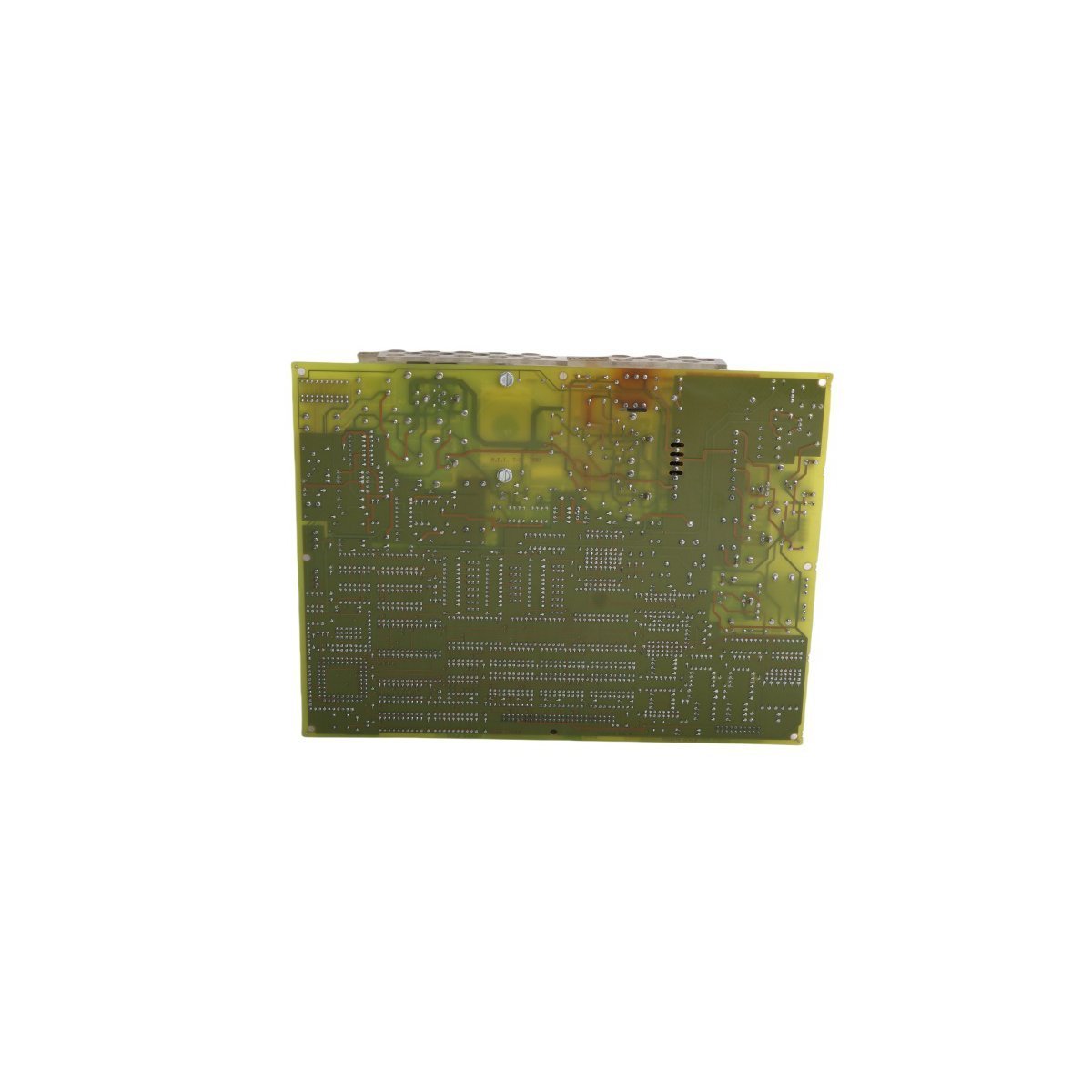

GE DS200TCEAG1BTF Emergency Overspeed Protection Board
The GE DS200TCEAG1BTF is a dedicated Emergency Overspeed Board for the Mark V turbine control system. It features an integrated microprocessor and hardware-based protection to monitor turbine velocity and execute critical safety trip functions reliably.
Product Overview
The GE DS200TCEAG1BTF operates as a critical Emergency Overspeed Board within the Mark V turbine control series. Engineers utilize this module to monitor rotational velocity and initiate protective trip sequences when machinery exceeds established safety parameters. By integrating high-speed signal processing with precise hardware-level protection, the board safeguards industrial turbines against mechanical failure caused by catastrophic overspeed events.
Technical Specifications
- Model Number: DS200TCEAG1BTF
- System Compatibility: Mark V Series
- Module Type: Emergency Overspeed Protection
- Processor: Integrated high-speed microprocessor
- Memory Support: Multiple EPROM sockets for firmware execution
- Circuit Protection: Three localized factory-identified fuses
- Configuration Hardware: Thirty selectable jumpers
- Interface: Dual bayonet connectors
- Dimensions: 27.8 cm x 21.2 cm x 4.8 cm
- Weight: 1.4 kg
Functional Characteristics
The DS200TCEAG1BTF board incorporates a specialized microprocessor architecture to evaluate turbine speed inputs in real-time. Because the system utilizes programmable EPROM modules, maintenance technicians adapt the board’s logic to specific operational requirements within the Mark V environment. Furthermore, the hardware design prioritizes circuit isolation; consequently, the integrated fuses effectively defend sensitive logic components against electrical spikes or unexpected supply fluctuations. By maintaining strict control over velocity thresholds, the board ensures that critical trip signals propagate without delay.
System Integration and Maintenance
Operational reliability remains a cornerstone of the Mark V architecture, and this board plays a central role in that safety mandate. Maintenance teams utilize the onboard jumpers to configure signal paths, which allows for precise calibration during initial commissioning or system retrofits. Moreover, the inclusion of clearly identified fuses simplifies troubleshooting procedures, as technicians identify potential power issues with visual inspections. Furthermore, because the module employs robust bayonet connectors, it maintains secure electrical contact under conditions of constant mechanical vibration. By facilitating rapid fault detection and reliable trip execution, the DS200TCEAG1BTF enhances the safety and longevity of industrial power generation assets.
