The GE IS220PSCAH1A is a Serial Modbus Interface Pack for Mark VIe systems. It supports RS-232/422/485 protocols, dual Ethernet redundancy, and RTU Master services.

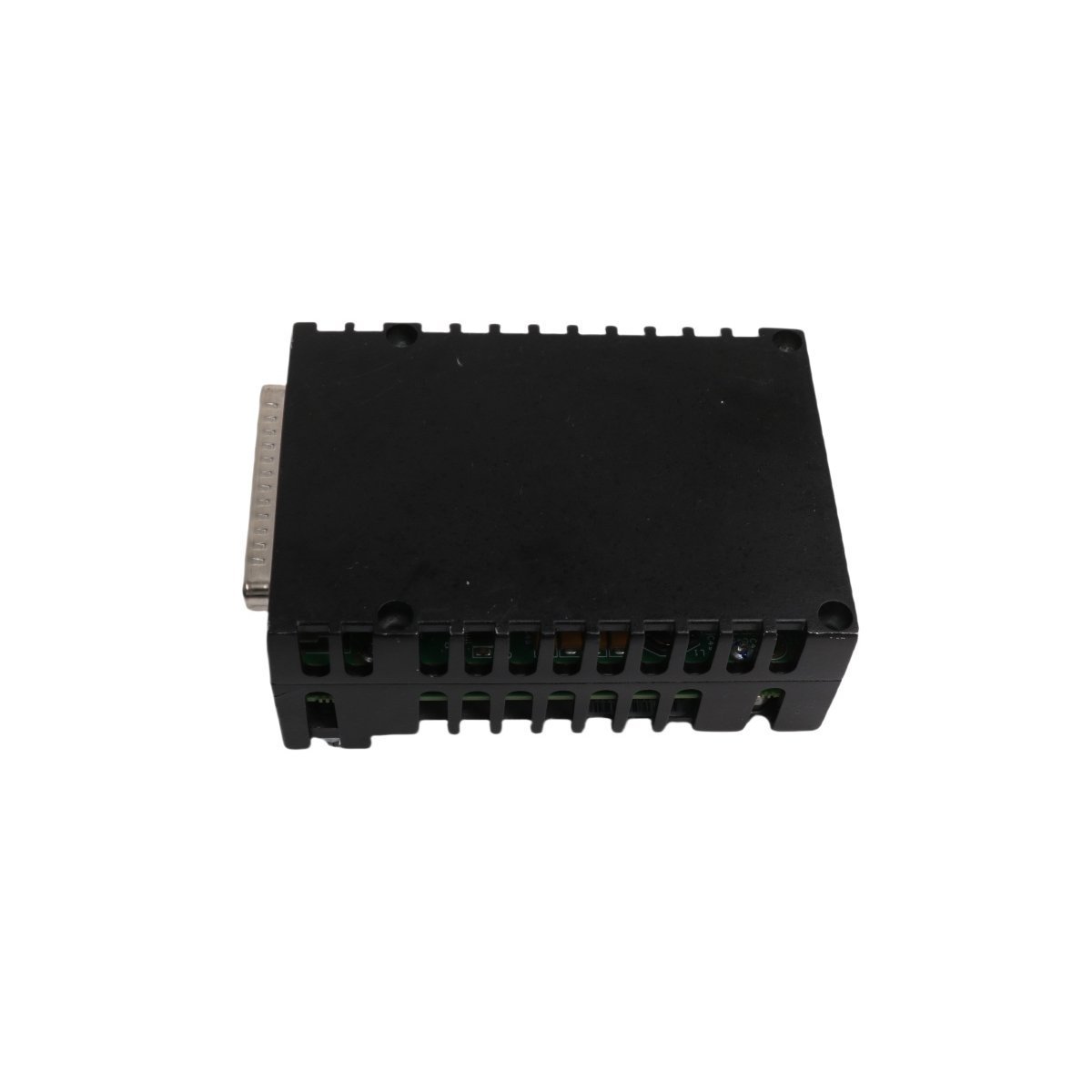

The GE IS220PSCAH1A is a high-performance serial communication interface designed for the Mark VIe control architecture. This module serves as a bridge between the controller and various serial-based field devices. Specifically, it provides a dedicated Serial Modbus Master Service for RTU mode operations. The hardware supports dual Ethernet connectivity to ensure network redundancy within critical DCS infrastructures. Because it manages real-time data exchange, it remains essential for turbine and plant automation. Its compact design allows for efficient mounting on serial communication terminal boards.
| Feature | Specification Details |
| Manufacturer | General Electric (GE) |
| Model Number | IS220PSCAH1A |
| Series | PACSystems Mark VIe |
| Communication Protocols | Modbus RTU Master |
| Supported Interfaces | RS-232, RS-422, RS-485 (Half-Duplex) |
| Channel Count | 3 Port Channels |
| Module Weight | 0.38 kg |
| Physical Dimensions | 4.5 x 13.5 x 8.3 cm |
| Network Support | Dual 10/100 Ethernet Ports |
The IS220PSCAH1A module offers extensive flexibility through its three independent port channels. These ports accommodate RS-232, RS-422, and RS-485 half-duplex standards to meet diverse field requirements. Furthermore, users can configure specific communication parameters such as baud rates, parity, and data bits. The module also manages station addresses for complex Modbus network topologies. This adaptability enables seamless integration with legacy instruments and modern smart sensors. Consequently, the interface pack simplifies the centralization of field data into the Mark VIe system.
Reliability is a core feature of the IS220PSCAH1A communication pack. The module includes internal self-diagnostic routines that monitor hardware health and link integrity. Additionally, it tracks analog inputs for position and pressure data via the terminal board. Configurable alarm limits allow operators to detect communication timeouts or electrical faults immediately. If a network path fails, the dual Ethernet ports facilitate an automatic switchover to the backup link. These features significantly reduce the time required for troubleshooting and maintenance.
