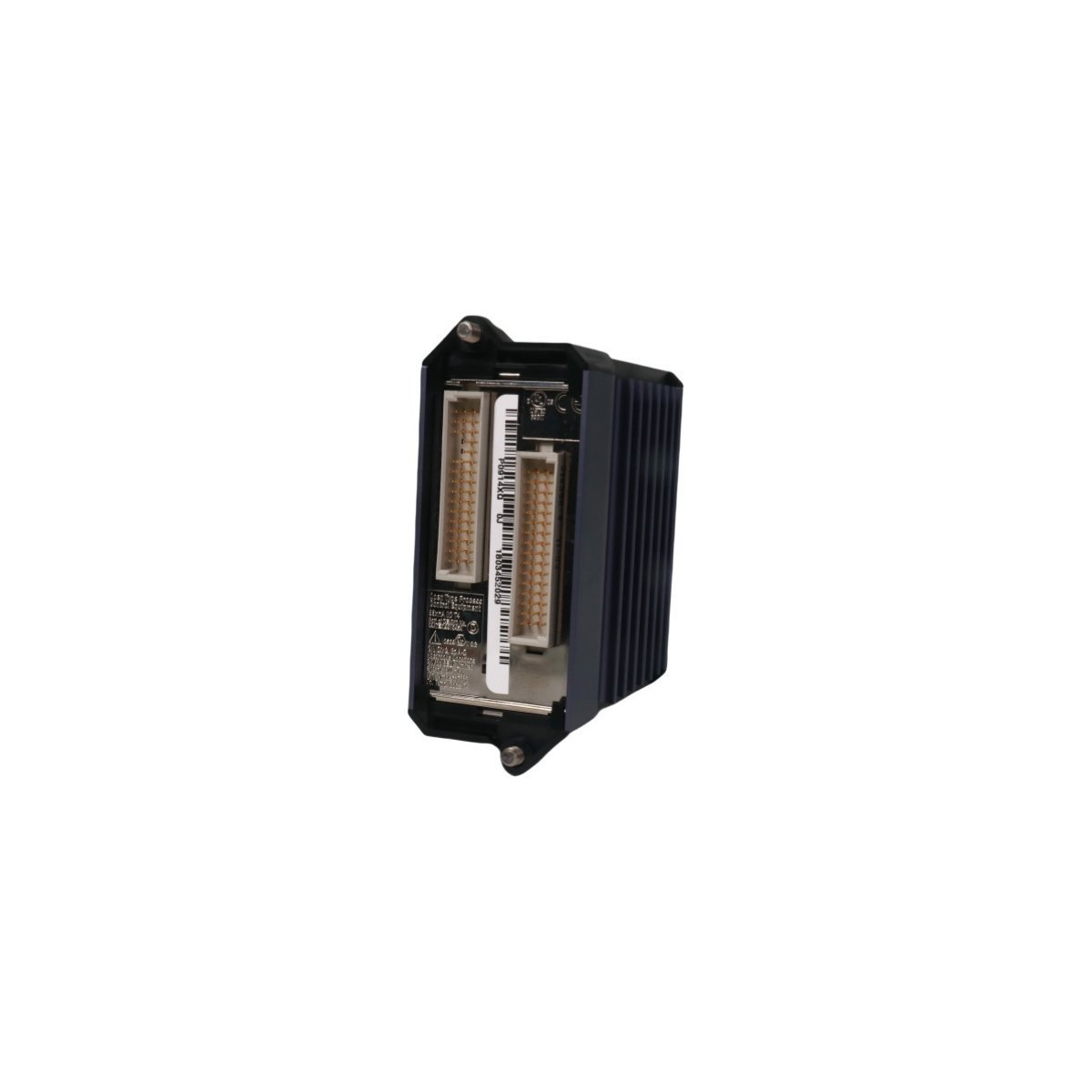

Foxboro FBM214 P0922VT HART Communication Input Interface Module

Technical Overview

The Foxboro FBM214 (Part Number P0922VT) functions as a high-density analog input interface designed specifically for the I/A Series and EcoStruxure Foxboro DCS. This module incorporates eight independent channels, each capable of supporting 4-20 mA signals integrated with HART (Highway Addressable Remote Transducer) digital communication. By bridging the gap between field instrumentation and the control system, the FBM214 enables operators to monitor primary process variables while simultaneously accessing advanced device diagnostics and configuration data.

Functional Performance

This interface module serves as a HART master, allowing for the bidirectional exchange of digital information over existing analog wiring. Each of the eight channels features an isolated input circuit that protects the system from ground loops and external electrical surges. The FBM214 continuously scans connected field devices to retrieve secondary variables, such as sensor temperature or valve position, and monitors device health status. This dual-path functionality ensures that critical control signals remain fast and deterministic, while maintenance-related data is processed in the background.

Key Technical Characteristics

• Brand: Foxboro (Schneider Electric)

• Model Number: FBM214

• Part Number: P0922VT

• Module Type: 8-Channel HART Communication Input Interface

• Input Signal: 4-20 mA DC analog with superimposed HART digital signal

• Isolation: Each channel is galvanically isolated

• Accuracy: 0.03% of span (typical for analog conversion)

• Update Rate: Fast analog updates for control loops with simultaneous digital data retrieval

• Mounting: Standard FBM baseplate installation

• Environmental Rating: Class G3 conformal coating for harsh chemical exposure

Primary Applications

• Intelligent Field Device Management: Interfacing with HART-enabled pressure, temperature, and flow transmitters to utilize full diagnostic capabilities.

• Predictive Maintenance Systems: Transferring instrument health alerts directly to Asset Management Software (AMS) to prevent unexpected failures.

• Safety Monitoring: Providing reliable, isolated signal paths for critical monitoring points in oil, gas, and chemical refineries.

• Process Optimization: Utilizing secondary multivariable data from smart sensors to refine control strategies without additional wiring.

Operational Advantages

• Reduced Wiring Complexity: Supports digital communication over the same two-wire pair used for the 4-20 mA signal, lowering installation costs.

• Enhanced Diagnostic Visibility: Provides real-time access to device status, reducing the need for manual field inspections.

• Hot-Swappable Capability: Maintenance teams can replace the module without interrupting the power or communication of other modules on the same baseplate.

• High Reliability: Galvanic isolation prevents field-side electrical faults from propagating to the system bus, ensuring overall DCS stability.
