SKU: P0926MX

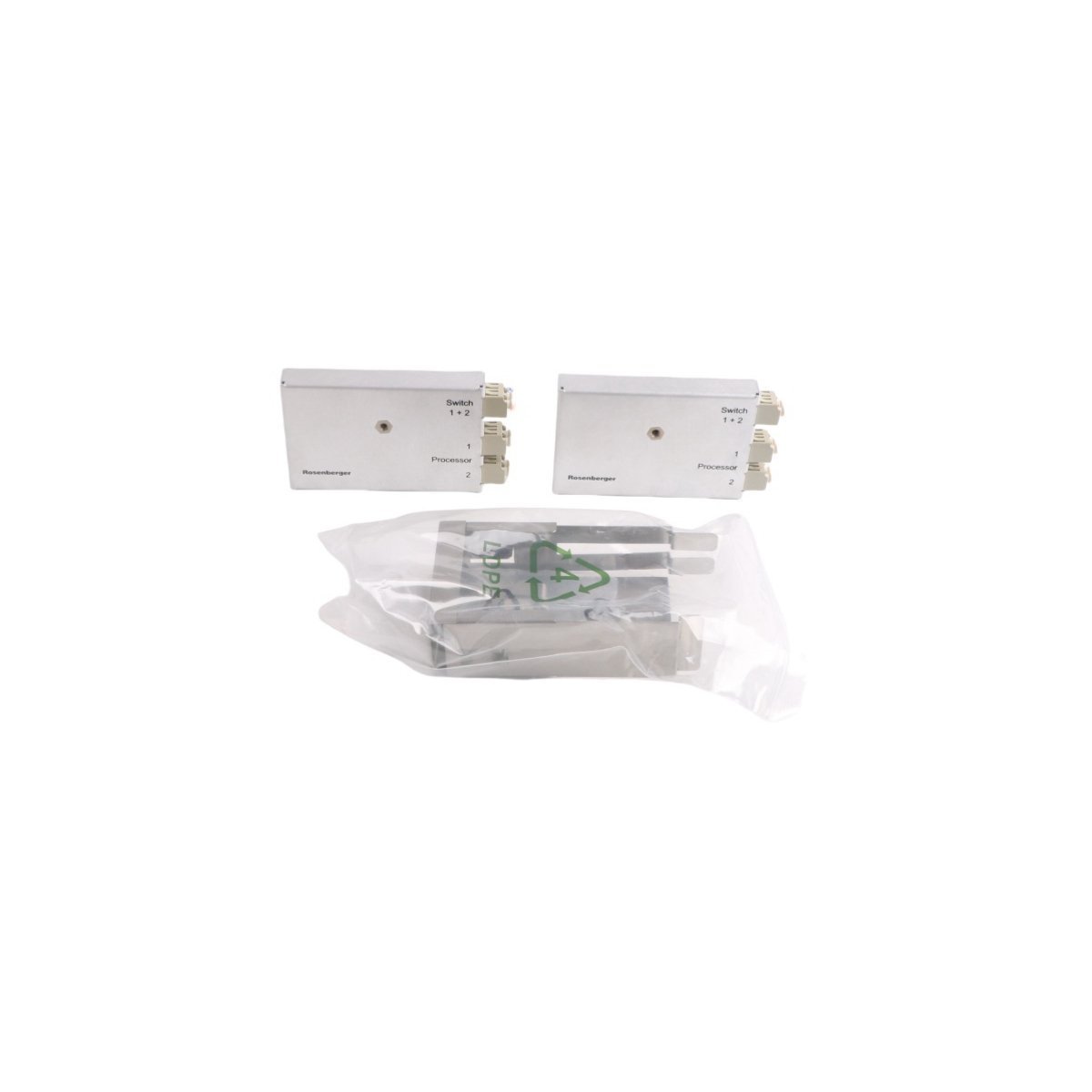

Foxboro P0926MX I/A Series Invensys Splitter Interface Module

The Foxboro P0926MX is a high-performance Invensys Splitter designed for the I/A Series DCS. This 8-channel interface module supports 20A current capacity and 220V operation, ensuring reliable signal distribution in extreme industrial environments ranging from -40°C to +85°C.

The Foxboro P0926MX serves as a critical signal distribution component within the I/A Series Distributed Control System (DCS). Specifically engineered by Invensys to facilitate high-reliability communication and power routing, this splitter module ensures that complex industrial networks maintain signal integrity across multiple channels. By utilizing this interface module, operators can effectively manage Ethernet routing and power distribution within a centralized control architecture.

Functional Specifications and Technical Attributes

System Integration: Fully compatible with Foxboro I/A Series DCS environments.
Signal Management: Features 8 independent input and output channels for versatile signal routing.
Electrical Capacity: Supports a high current throughput of 20A, accommodating robust industrial loads.
Operating Voltage: Configured for standard 220V AC industrial power supplies.
Signal Frequency: Operates at a frequency output of 30 kHz for high-speed signal processing.
Environmental Resilience: Operates effectively in extreme temperatures ranging from -40°C to +85°C.
Communication Role: Functions as an Ethernet router and signal splitter to optimize network traffic.

Application and Industrial Utility

This module is primarily deployed in high-stakes sectors such as chemical processing, power generation, and large-scale manufacturing. Because the P0926MX provides precise signal transmission, it significantly reduces the risk of data loss or signal interference in damp or thermally volatile environments. Consequently, the unit enhances overall operational efficiency by providing a stable bridge between controllers and field instrumentation.
