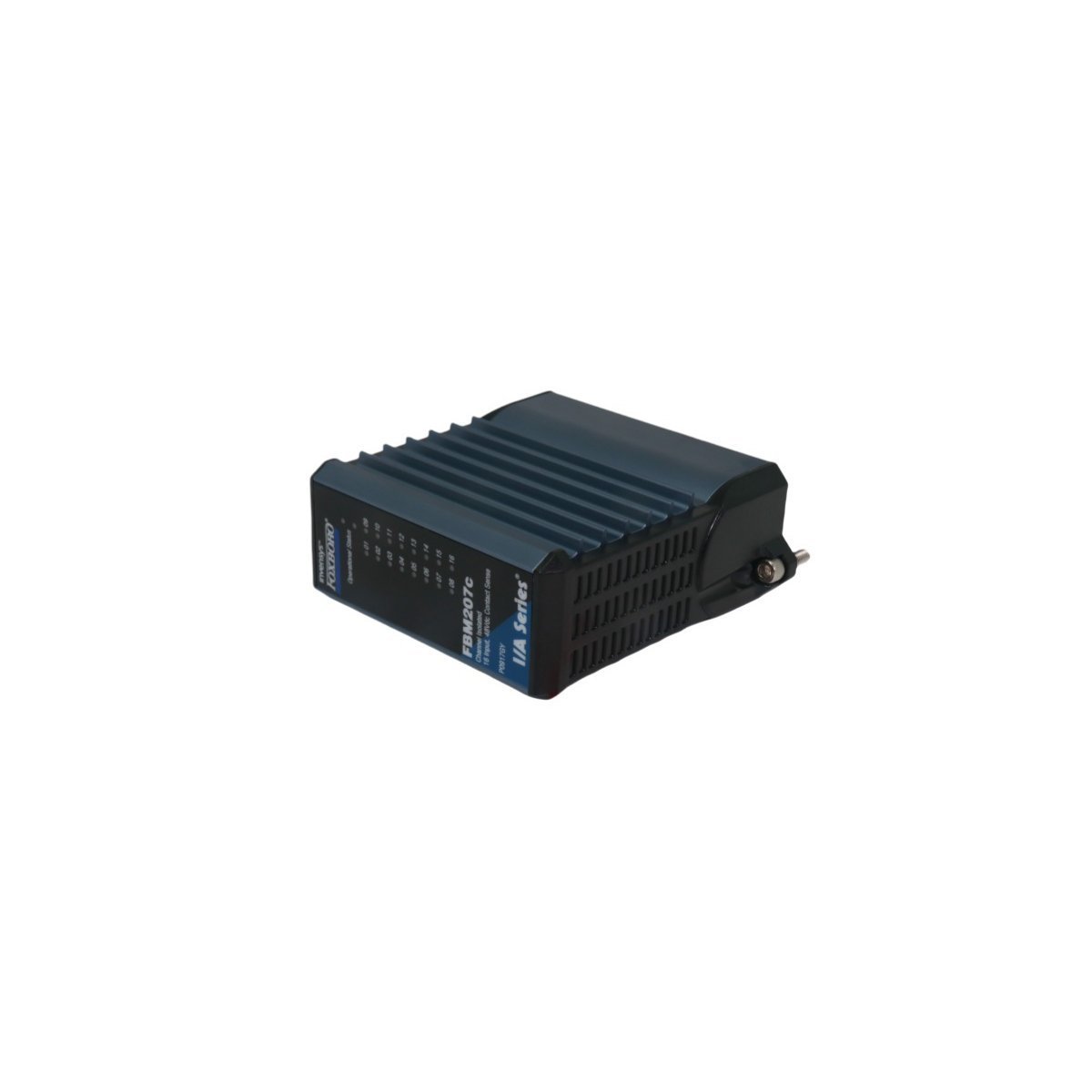

Foxboro FBM207C P0917GY Voltage Monitor / Contact Sense Input Module

The Foxboro FBM207C (P0917GY) is a 16-channel Voltage Monitor and Contact Sense input module for the I/A Series DCS. It provides high-precision discrete monitoring, SOE recording, and redundant hardware support. This rugged G3-certified module ensures reliable data acquisition for critical safety and interlocking logic in demanding industrial environments.

Request a Quote

Technical Functionality

The Foxboro FBM217C, identified by part number P0917GY, operates as a high-density 16-channel discrete input module for the I/A Series and Foxboro Evo systems. This module provides a dual-purpose interface, allowing it to function as either a voltage monitor or a contact sense input. By detecting the state of field-side contacts or DC voltage levels, the FBM217C converts external physical conditions into digital signals for the DCS backplane. Consequently, it enables the control system to track critical equipment states and execute automated logic based on real-time field feedback.

Operational Performance

This module delivers exceptional reliability through its redundancy support, allowing users to pair two FBM207C units to eliminate single points of failure. It utilizes a compact design that snaps into a standard modular baseplate, facilitating rapid hardware installation and maintenance. Furthermore, the FBM207C features Sequence of Events (SOE) capabilities, which record state changes with millisecond precision to assist in post-trip forensic analysis. The module also performs continuous self-diagnostics, monitoring its internal circuitry and reporting any hardware irregularities to the operator workstation immediately.

Key Technical Characteristics

  • Dual Mode Interface: Supports both Voltage Monitoring (external power) and Contact Sensing (internal 24V DC power).
  • Channel Density: Features 16 independent channels per module for efficient cabinet space utilization.
  • Timing Resolution: Enables Sequence of Events (SOE) logging to capture the exact chronology of system events.
  • Ruggedized Hardware: Incorporates an extruded aluminum exterior and G3-rated conformal coating for harsh industrial environments.
  • Redundant Configuration: Operates in a 1-out-of-2 (1oo2) redundant pair to ensure maximum process availability.
  • Fast Response: Offers configurable filter/debounce times to eliminate signal chatter and ensure high-speed data acquisition.

Primary Industrial Applications

  • Refining and Chemicals: Monitoring motor starter auxiliary contacts and emergency shutdown (ESD) button states.
  • Power Generation: Tracking breaker statuses and protective relay trips in turbine control systems.
  • Water Treatment: Supervising widely distributed tank level switches and pump run-status signals.
  • General Manufacturing: Integrating safety interlocks and discrete sensors into high-speed logic sequences.

Technical Specifications

  • Manufacturer: Foxboro
  • Model: FBM207C
  • Part Number: P0917GY
  • Input Channels: 16
  • Input Voltage (Contact Sense): 24 V DC (sourced from the module)
  • Operating Temperature: -20°C to +70°C
  • Power Consumption: 3.5 W
  • Weight: 284 g
