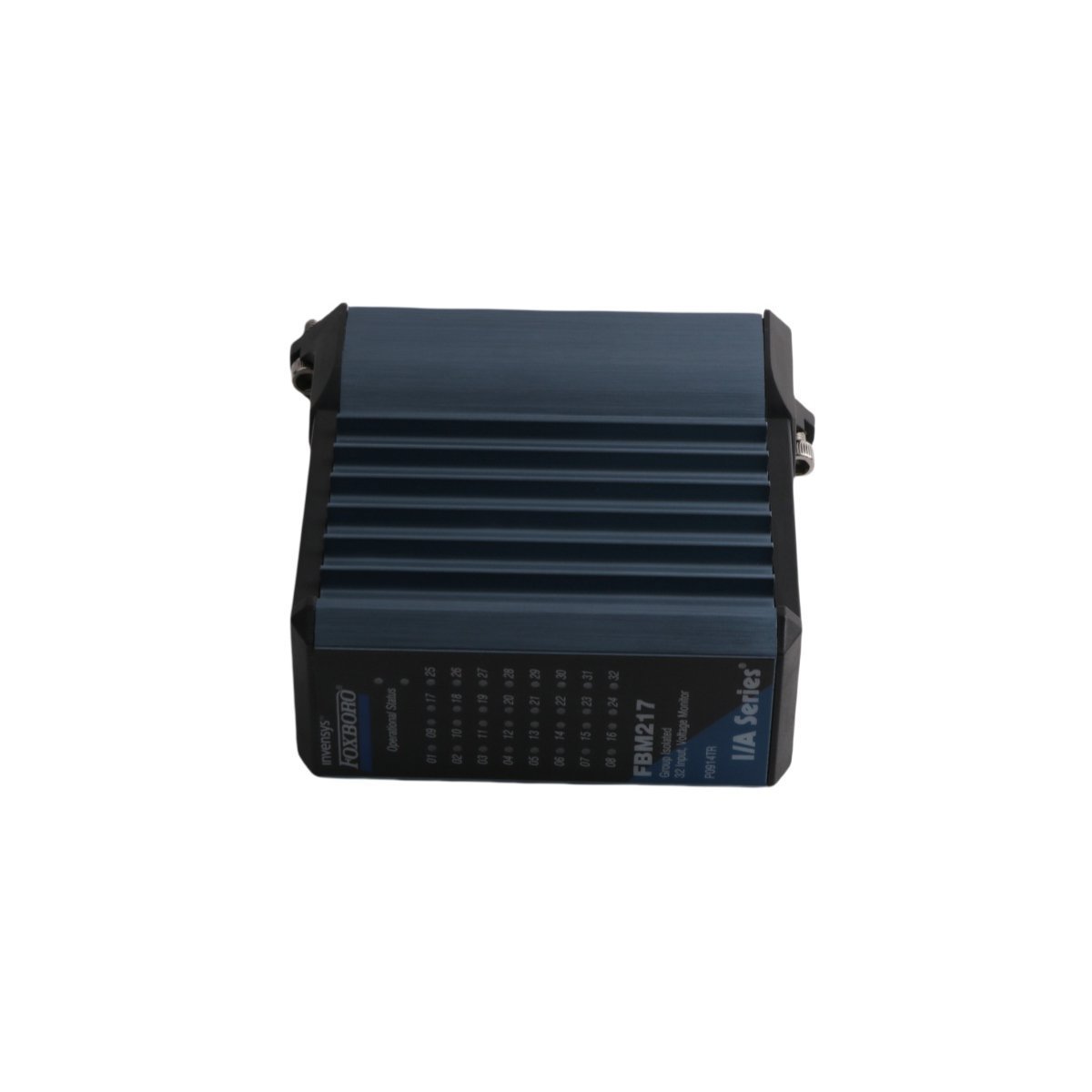

Foxboro FBM217 P0914TR Discrete Input Module

The Foxboro FBM217 (P0914TR) is a 32-channel discrete input module for the I/A Series DCS. It provides high-density signal monitoring, SOE recording, and pulse counting for industrial automation. This G3-rated module supports redundant configurations and multiple voltage levels, delivering reliable data acquisition for critical process safety and control.

Technical Functionality

The Foxboro FBM217, carrying the part number P0914TR, functions as a high-density discrete input interface for the I/A Series and Foxboro Evo Distributed Control Systems (DCS). This module monitors up to 32 discrete input signals, converting electrical pulses from field sensors into digital data for the system backplane. Because it manages large-scale data points within a single housing, the FBM217 significantly reduces the physical footprint required in control cabinets. Consequently, it provides a streamlined path for tracking the status of switches, relays, and other contact-based field equipment.

Operational Performance

This module executes advanced monitoring tasks such as Pulse Counting (up to 250 Hz) and Sequence of Events (SOE) recording with millisecond resolution. When users configure the module for redundancy, two FBM217 units work in parallel to ensure continuous data acquisition even if a single hardware failure occurs. Furthermore, the module filters incoming signals using a user-definable debounce time, which eliminates false triggers caused by electrical noise. By utilizing an extruded aluminum exterior, the FBM217 also offers superior heat dissipation and structural protection in demanding industrial settings.

Key Technical Characteristics

Channel Density: Manages 32 group-isolated channels for maximum input concentration.
Timing Precision: Supports Sequence of Events (SOE) recording to capture the exact order of process trips.
Voltage Compatibility: Operates with various Termination Assemblies (TAs) to support 24 V DC, 120 V AC, or 240 V AC signals.
Reliability Features: Offers optional redundancy and high-level electrical isolation between field circuits and the system bus.
Signal Filtering: Provides configurable filter times (0 to 32 ms) to ensure data accuracy.
Environmental Protection: Features a conformal-coated design rated for G3 harsh environments.

Primary Industrial Applications

Power Generation: Tracking circuit breaker positions and protective relay statuses across the electrical grid.
Oil & Gas Processing: Monitoring remote valve limits and emergency stop buttons on production skids.
Chemical Manufacturing: Supervising safety interlocks and motor starter contacts in hazardous process areas.
Water Treatment: Integrating pump run-status and tank level switches into a centralized control logic.
