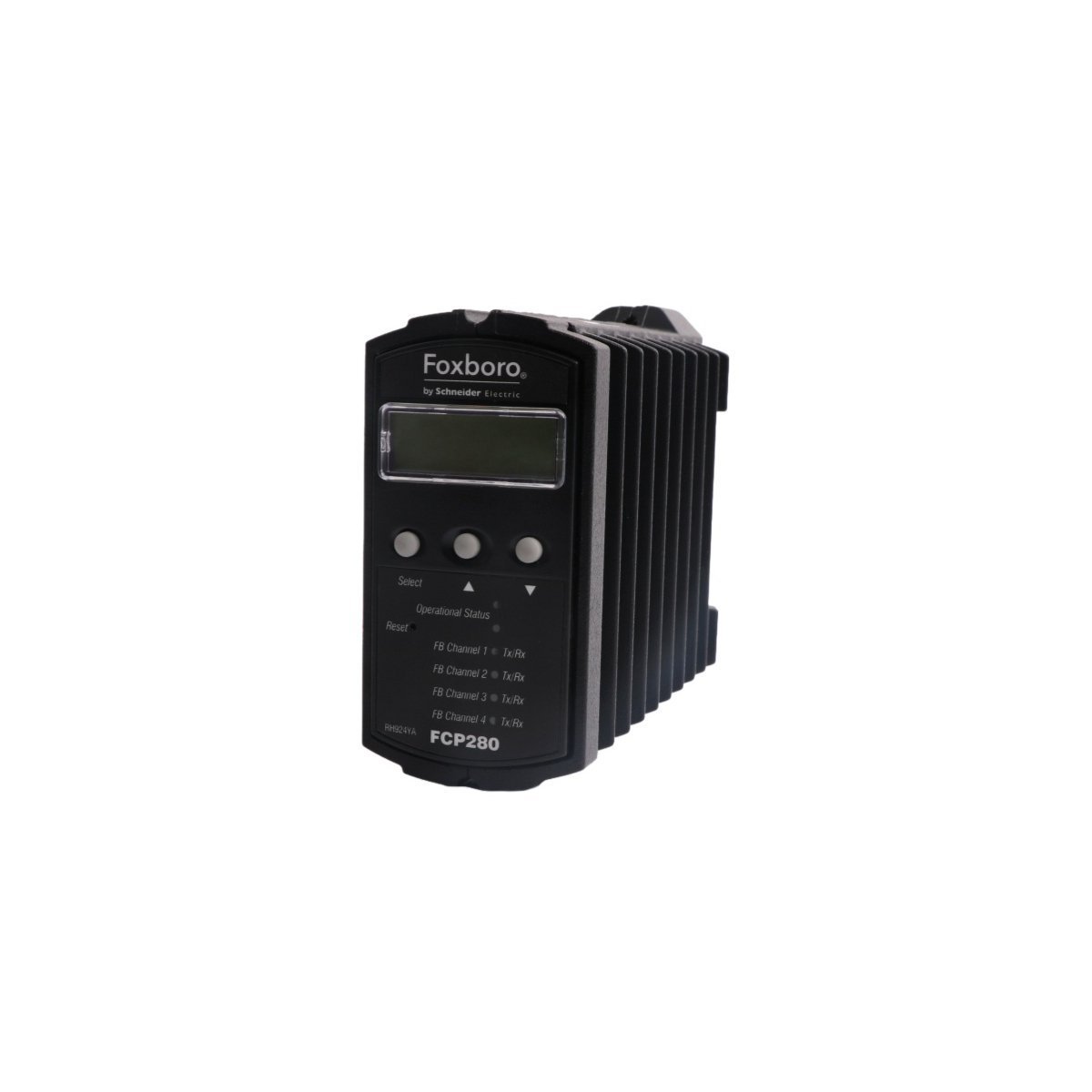

Foxboro RH924YA I/A Series FCP280 Field Control Processor

The Foxboro RH924YA, widely recognized as the FCP280, represents a significant evolution in distributed control architecture for the Invensys I/A Series. This high-capacity processor manages complex regulatory control and logic execution across large-scale industrial networks. By integrating advanced communication protocols with robust hardware, the RH924YA ensures that critical process data remains synchronized and accessible throughout the entire control layer.

Advanced Technical Capabilities

• High-Speed Execution: Utilizes a powerful processor to manage intensive control loops with ultra-low latency.
• Network Redundancy: Features dual 100 Mbps Ethernet ports to provide a secure, fail-safe connection to the system Mesh network.
• Scalable I/O Management: Coordinates a vast array of Fieldbus Modules (FBMs), significantly increasing the density of the control system.
• Fault Tolerance: Supports a redundant hardware configuration, which allows for instantaneous, bumpless transfer in the event of a module failure.
• Onboard Intelligence: Maintains 128 MB of ECC SDRAM to protect against memory-bit errors during mission-critical calculations.

Operational Functions and Integration

The FCP280 functions as the primary intelligence center for the DCS. In addition to its raw processing power, the module provides exceptional flexibility for facility upgrades. Because it supports both the legacy 2 Mbps Fieldbus and the modern 100 Mbps HDLC Fieldbus, it acts as a versatile bridge for facilities undergoing modernization. Consequently, users can integrate newer high-speed I/O while maintaining their existing infrastructure. Furthermore, the RH924YA supports sophisticated alarming, trending, and data collection functions directly at the controller level. As a result, this decentralized approach significantly reduces the communication load on the higher-level Human Machine Interface (HMI). Moreover, the module’s compatibility ensures that transition periods during system migrations are handled with minimal risk.

Technical Specifications Summary

• Manufacturer: Foxboro (Schneider Electric / Invensys)
• Model Identifier: RH924YA (FCP280)
• Memory: 128 MB ECC SDRAM / 128 MB Flash
• Communication: Redundant 100 Mbps Ethernet / HDLC / Fieldbus
• Input Power: 24V DC nominal
• Operating Range: 0°C to +60°C
• Humidity Tolerance: 5% to 95% non-condensing
• Certification: CE, UL, and CSA compliant for industrial use

Industrial Utility

Due to its high reliability and processing speed, the RH924YA is a staple in high-demand sectors such as power generation and petrochemical refining. Specifically, its ability to manage high-density I/O makes it ideal for controlling complex turbines and distillation units. Ultimately, the FCP280 provides the stability and speed required to maintain safety and efficiency in 24/7 automated operations.
