  4. Emerson GE Fanuc IC693MDL646 Series 90-30 24VDC 16-Point Discrete Input Module
Sale!
SKU: IC693MDL646

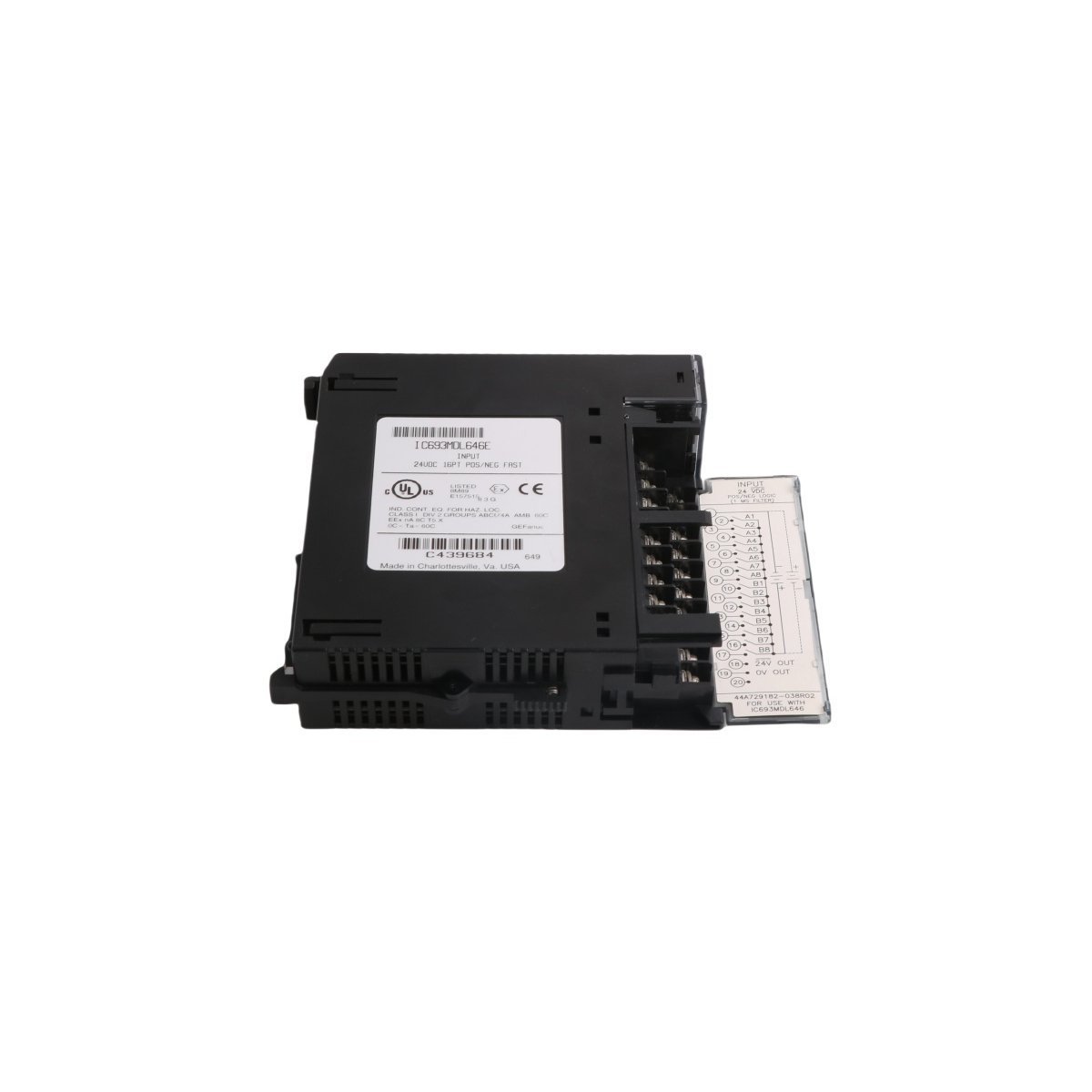

Emerson GE Fanuc IC693MDL646 Series 90-30 24VDC 16-Point Discrete Input Module

The IC693MDL646 is a 16-point 24VDC discrete input module compatible with GE Fanuc Series 90-30 PLCs. It supports both positive and negative logic, features a fast 1ms response time, and provides individual LED status indicators for efficient field diagnostics and high-speed signal processing.

Request a Quote

Technical Overview

The IC693MDL646 functions as a high-performance discrete input interface for the legacy GE Fanuc Series 90-30 and modern PACSystems PLC architectures. This module facilitates the seamless integration of field-level binary signals into the controller’s logic. By supporting both positive and negative logic (sink or source) configurations, it offers engineers significant flexibility during system design and wiring. The module processes signals from 16 independent points, translating physical state changes from industrial devices into actionable digital data.

Operational Capabilities and Connectivity

This module excels in high-speed environments where rapid signal processing is mandatory. It maintains a consistent 1 ms response time for both activation and deactivation cycles, ensuring real-time accuracy for time-sensitive applications. To simplify installation and maintenance, the hardware includes a 20-terminal connector block shielded by a protective swing door. This door serves a dual purpose by providing internal wiring schematics for field personnel. Furthermore, the module incorporates blue color-coding on its faceplate, which serves as a visual safeguard to identify it as a low-voltage DC component within a mixed-voltage rack.

Core Technical Characteristics

  • Input Configuration: 16 discrete channels organized into a single group with a shared common.
  • Voltage Compatibility: Rated for a nominal 24 VDC, though it operates reliably across a broader 0 to 30 VDC range.
  • Threshold Specifications: Recognizes an “On” state between 11.5 and 30 VDC and an “Off” state from 0 to 5 VDC.
  • Current Requirements: Draws a minimum of 3.2 mA for active states and permits a maximum leakage of 1.1 mA for inactive states.
  • Power Consumption: Utilizes 80 mA from the 5V bus and 125 mA from the 24V relay bus on the backplane.
  • Visual Diagnostics: Features a dedicated “Module OK” LED alongside 16 individual status indicators for real-time channel monitoring.

Typical Industrial Applications

Automated systems frequently utilize the IC693MDL646 to monitor critical feedback components such as limit switches, proximity sensors, and operator pushbuttons. Because it accommodates various wiring topologies, it remains a preferred choice for retrofitting older Series 90-30 installations or expanding existing PACSystems RX3i racks using 90-30 expansion bases. Consequently, this module provides a dependable solution for manufacturing lines, material handling, and environmental control systems.

Technical Specifications Summary

  • Manufacturer: Emerson (formerly GE Fanuc)
  • Product Line: Series 90-30 / PACSystems
  • Model Number: IC693MDL646
  • Input Type: 24 VDC (Positive/Negative Logic)
  • Response Time: 1ms (On/Off)
  • Dimensions: 3.5cm x 13cm x 13.5cm
  • Weight: 0.28 kg
