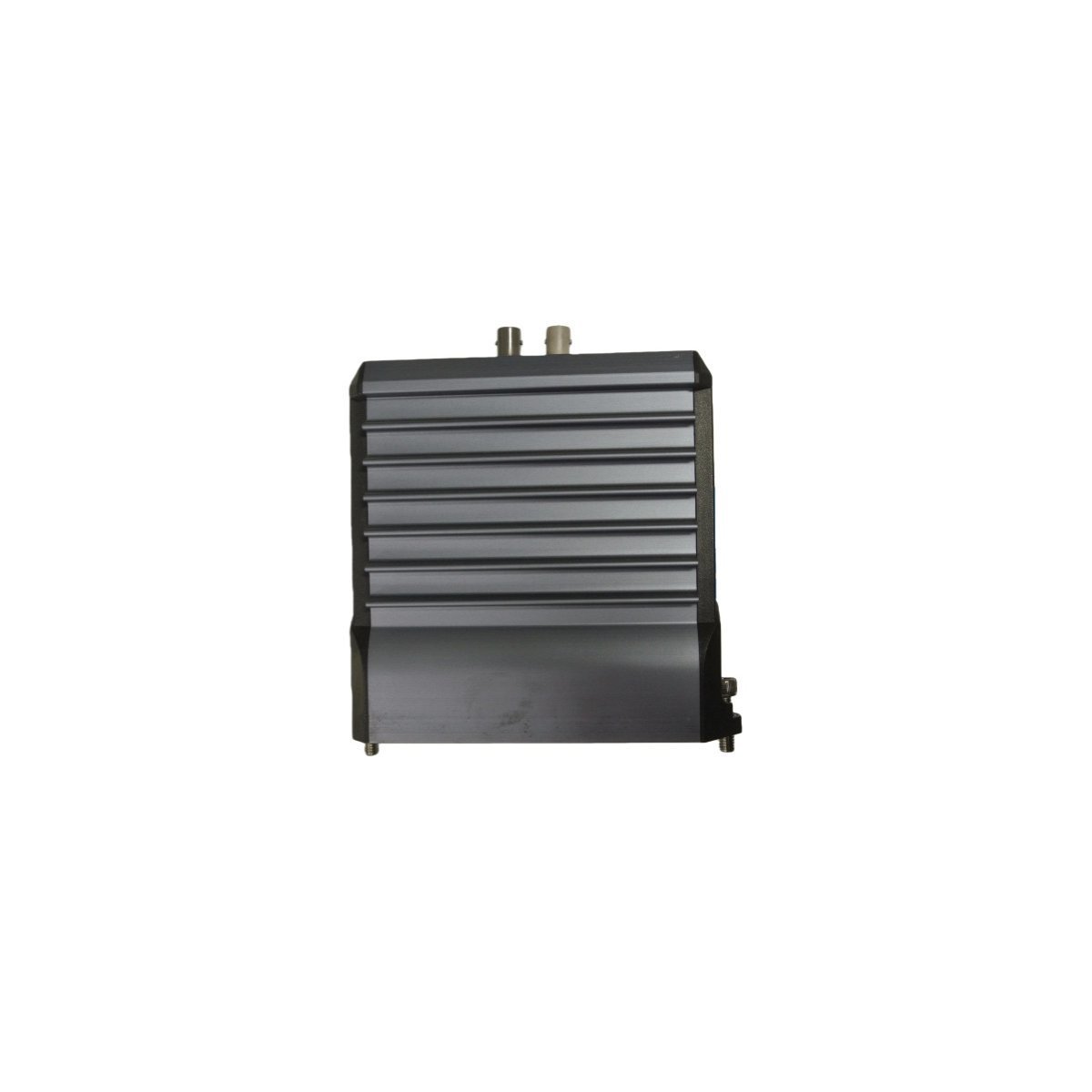

Foxboro P0916TQ FCM2F10 100 Mbps Fiber Optic Fieldbus Module

The Foxboro FCM2F10 (P0916TQ) is a high-speed fiber optic fieldbus interface for I/A Series and Foxboro Evo systems. By utilizing 100 Mbps optical transmission and G3-rated durability, it provides a redundant, EMI-immune communication link that extends DCS connectivity up to 10km in harsh industrial environments.

Primary System Logic and Connectivity

The Foxboro P0916TQ FCM2F10 functions as a high-speed conversion gateway that links the 2 Mbps HDLC fieldbus to the 100 Mbps fiber optic The Mesh network. By leveraging advanced optical transceivers, the module actively translates electrical data packets into light signals for long-distance transmission. Once seated within a 200 Series baseplate, the unit coordinates the bi-directional data flow between remote Fieldbus Modules (FBMs) and the primary control processors. Because it utilizes fiber optic media, the hardware effectively bypasses the distance constraints and ground loop vulnerabilities inherent in traditional copper-based architectures.

Performance Characteristics and Asset Protection

Maximizes Operational Footprint: The FCM2F10 facilitates robust communication over distances up to 10 kilometers. In doing so, it allows for the decentralized placement of I/O cabinets in remote process areas while maintaining a centralized control logic environment.
Neutralizes Electromagnetic Interference: By utilizing non-conductive glass fibers, the module provides total immunity to RFI and EMI. As a result, the system maintains flawless data integrity even when the communication lines share trays with high-power motor cables or variable frequency drives.
Guarantees Network Availability: The module supports full hardware redundancy through its dual-path architecture. Consequently, should a primary fiber link sustain damage, the standby unit instantly assumes the communication load. Through this bumpless failover, it ensures that plant operators never lose visibility of critical process variables.
Shields Internal DCS Circuitry: Beyond its data-routing capabilities, the FCM2F10 acts as a dielectric barrier against lightning-induced surges. Therefore, it prevents high-voltage transients from traveling through the fieldbus and damaging the expensive supervisory processors in the central control room.
Facilitates Rapid Network Diagnostics: Finally, the module provides real-time health monitoring via a series of diagnostic LEDs on the front panel. By providing immediate status updates, maintenance teams can differentiate between a local module fault and a remote link failure without specialized test equipment.
