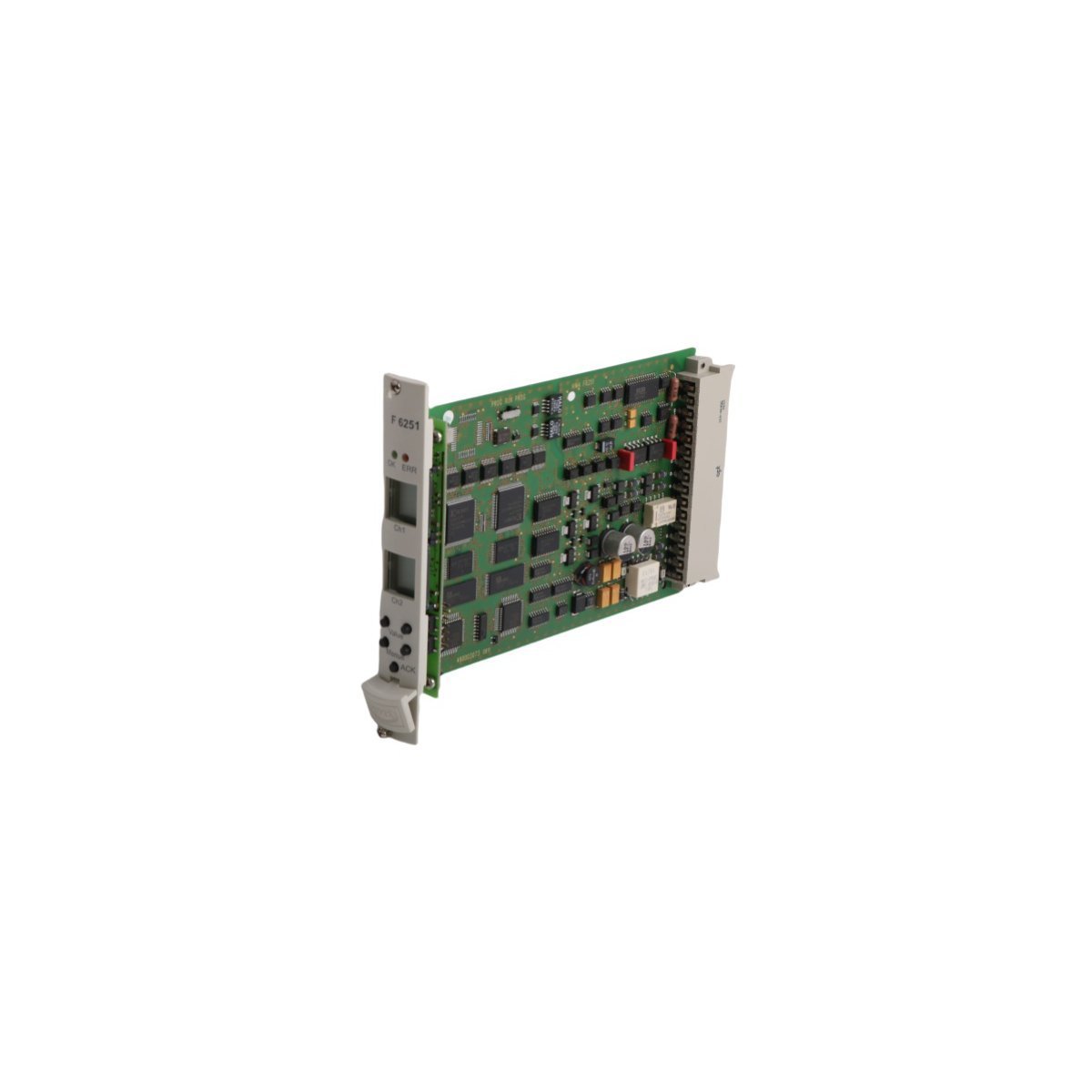

HIMA F6251 Ethernet Communication Module

Technical Functionality

The HIMA F6251 functions as a high-speed Ethernet communication module designed for the HIMax and HIQUAD safety-instrumented systems. This module establishes a robust data link between the safety controller and external industrial networks, facilitating the exchange of critical process data with DCS, PLC, and SCADA systems. By utilizing standardized communication protocols, the F6251 ensures that safety-related information is transmitted with high integrity and minimal latency. Consequently, it acts as the primary gateway for integrating HIMA safety logic into the broader plant automation architecture.

Operational Performance

This communication module executes data transfers using dual redundant ports, ensuring that network connectivity remains active even if a single cable or switch fails. Because it supports the SafeEthernet protocol, the F6251 can maintain safety-certified communication between multiple HIMA controllers over standard Ethernet infrastructure. Furthermore, the module features onboard diagnostics that continuously monitor link status, collision rates, and internal hardware health. By offloading communication tasks from the main processor, the F6251 also preserves the safety controller’s CPU cycles for critical logic execution.

Key Technical Characteristics

• Protocol Support: Compatible with Modbus TCP, Ethernet/IP, and HIMA’s proprietary SafeEthernet.
• Redundant Architecture: Features dual RJ-45 or fiber optic ports to support fault-tolerant network topologies.
• High Data Throughput: Supports transmission speeds up to 100 Mbit/s for rapid data synchronization.
• Galvanic Isolation: Protects internal safety circuitry from external network electrical noise and surges.
• Ease of Configuration: Integrates seamlessly with SILworX engineering software for rapid network setup and diagnostic mapping.
• Ruggedized Hardware: Built to withstand industrial electromagnetic interference (EMI) and vibration.

Primary Industrial Applications

• Data Integration: Bridging HIMA safety systems with Honeywell, Emerson, or Siemens DCS platforms.
• Remote Monitoring: Providing real-time safety status and alarm data to centralized control rooms.
• Peer-to-Peer Safety: Linking multiple HIMA safety racks across a plant for coordinated emergency shutdown (ESD) logic.
• Asset Management: Facilitating remote diagnostics and configuration backups via secure industrial networks.

Technical Specifications

• Manufacturer: HIMA
• Model Number: F6251
• Product Type: Ethernet Communication Module
• Power Consumption: 5 W (Typical)
• Operating Temperature: 0°C to +60°C (Standard)
• Communication Ports: 2 x 10/100 Base-T (RJ45)
• Weight: 0.48 kg
