HIMA F4204 Safety-Related 4-Channel Digital Output Module

Product Overview

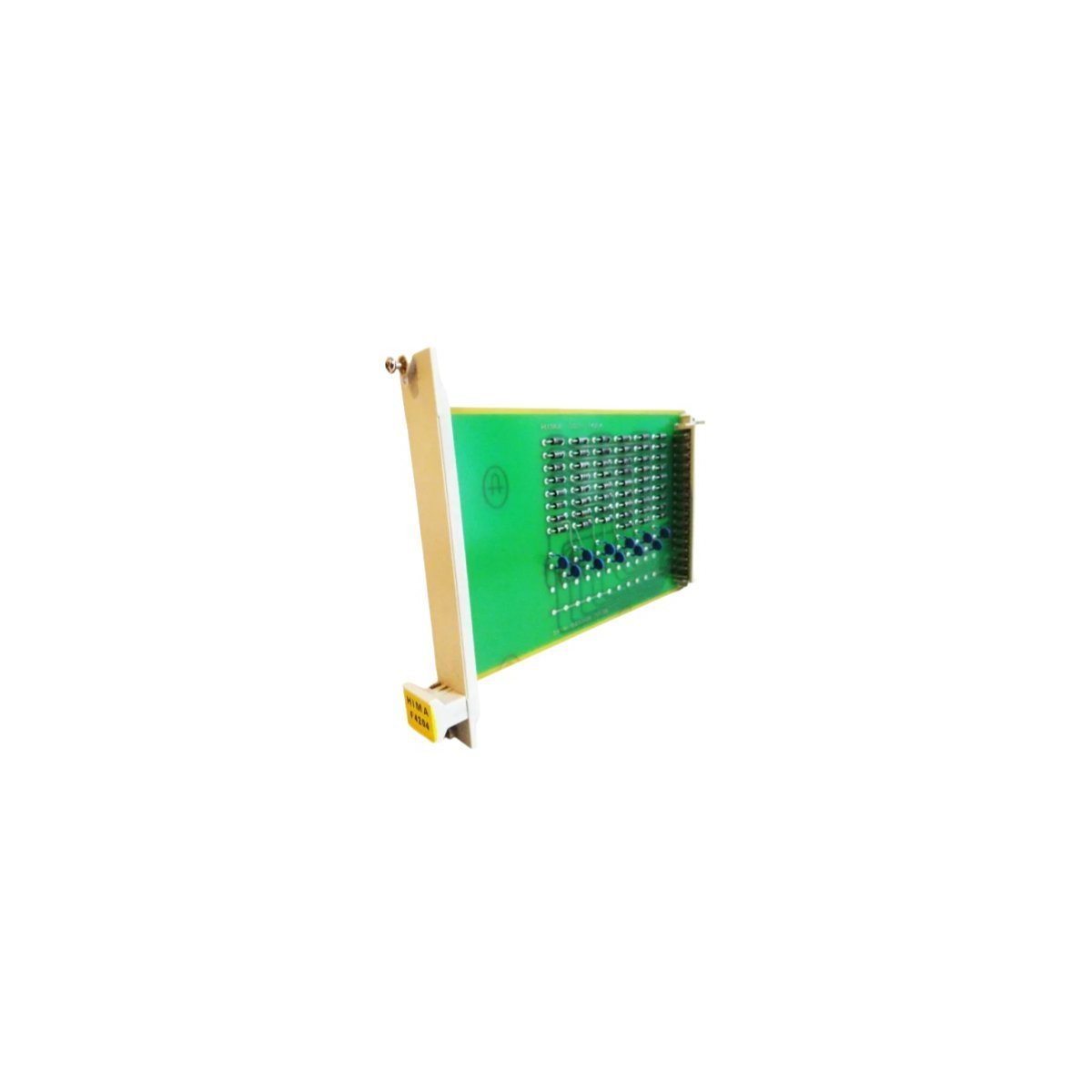

The HIMA F4204 is a high-integrity, safety-related digital output module designed for use within the H41q and H51q safety systems. This module is specifically engineered to control actuators, valves, and other critical field devices that require a high degree of operational safety and fault tolerance. Because it is part of HIMA’s specialized safety family, the F4204 essentially provides a reliable bridge between the central safety logic and the physical process, ensuring that outputs remain in a safe state even in the event of internal hardware failure.

Technical Functionality

Regarding its power and output capacity, the F4204 operates on a standard 24V DC supply and provides 4 safety-related digital output channels. Each channel is capable of delivering up to 1A of current, making it robust enough to handle demanding industrial loads without additional amplification. In order to maintain safety integrity, the module performs constant internal self-tests and monitors for short circuits or wire breaks. Furthermore, the front panel is equipped with diagnostic LEDs that provide immediate visual feedback on the status of each output channel and the health of the internal bus.

Despite its heavy-duty performance, the F4204 is designed for resilience in harsh environments. It functions reliably within a temperature range of -25°C to +70°C and features an IP20-rated enclosure. Consequently, it remains protected against solid objects and light environmental stress, ensuring long-term durability in industrial control cabinets. Meanwhile, the compact 0.4kg design allows for easy mounting and efficient use of space within high-density safety racks.

Key Specifications

• Brand: HIMA
• Series: H41q / H51q Safety Systems
• Module Type: Safety-Related Digital Output
• Output Channels: 4 Channels
• Nominal Voltage: 24V DC
• Current Capacity: 1A per channel
• Operating Temperature: -25°C to +70°C
• Protection Rating: IP20
• Weight: 0.4 kg
• Dimensions: 3.2 x 21 x 13.3 cm

Installation and Safety Compliance

In terms of integration, the F4204 follows industry-standard protocols, allowing technicians to achieve quick and secure connectivity within HIMA DCS networks. Because the module is designed for safety-critical applications, it includes comprehensive documentation to assist engineers in meeting strict regulatory compliance. Moreover, during maintenance, the hot-swap capability (where supported by the rack) allows for the replacement of modules without compromising the safety functions of the surrounding system. Therefore, the F4204 represents a vital component for any automation system where high-availability and “fail-safe” performance are non-negotiable.
