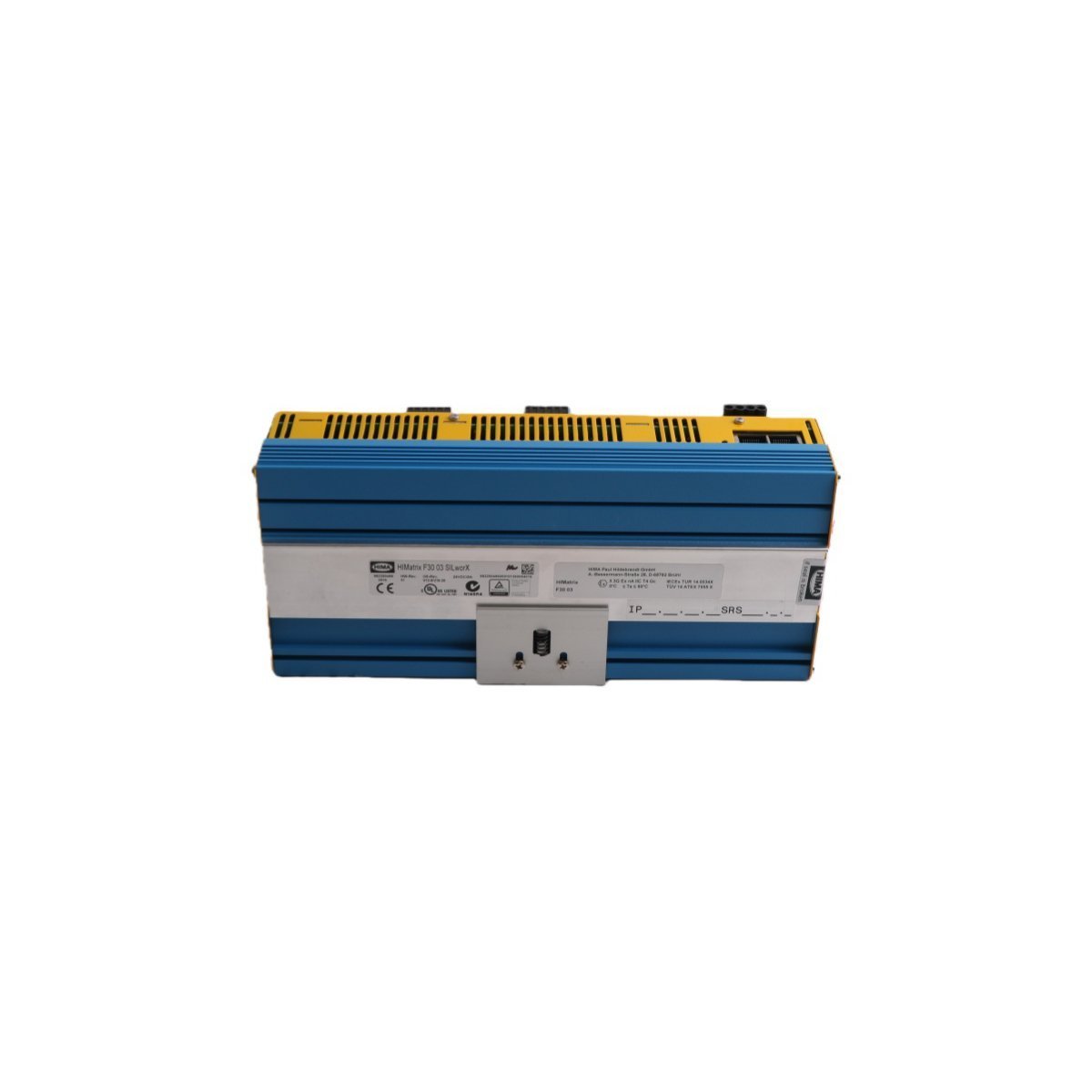

The HIMA HIMatrix F30 01 is a SIL 3 certified compact safety controller featuring 20 digital inputs and 8 digital outputs. Optimized for Ex-zone 2 hazardous areas, this robust German module supports SILworX and ELOP II Factory to provide high-integrity protection for ESD and Fire & Gas systems.
The HIMA HIMatrix F30 01 functions as a high-performance, compact safety controller specifically engineered to execute critical safety instrumented functions (SIF). To achieve this, the German-manufactured unit integrates 20 digital inputs and 8 digital outputs within a robust metal housing designed for high-integrity protection. By providing certified safety logic, the F30 01 enables engineers to implement emergency shutdown (ESD) and fire and gas (F&G) applications with absolute confidence.
Furthermore, operators benefit from the controller’s comprehensive TÜV certification, which confirms its suitability for SIL 3 applications according to IEC 61508 and IEC 61511. In addition to these standards, the F30 01 meets Category 4 requirements per EN 954-1. Consequently, this hardware actively monitors input signals from the field and executes safety logic with millisecond precision to ensure continuous personnel and asset protection.
One way that the F30 01 differentiates itself is through its integrated power management system. Specifically, the controller supplies groups of four potential-free mechanical contacts using its internal 24V source. As a result, this eliminates the need for bulky external power supplies, thereby simplifying cabinet wiring and reducing the overall system footprint while maintaining maximum safety integrity.
Moreover, because HIMA designed the F30 01 for maximum versatility, it supports multiple engineering environments. This allows technicians to integrate the controller seamlessly into various existing DCS architectures. Equally important is the rugged metal enclosure and Ex-zone 2 certification, which permit installation closer to the actual process in explosive atmospheres. By doing so, the system reduces long-distance cabling costs significantly. Ultimately, whether managing standalone safety tasks or operating as part of a networked infrastructure, the HIMatrix F30 01 provides the reliability required for modern industrial automation.
| Parameter | Specification |
|---|---|
| Model / Catalog No. | KJ2221X1-BA1 |
| Alternative Part Numbers | 12P3232X112 / VS6002 |
| Manufacturer | EMERSON (DeltaV Product Line) |
| Origin | USA |
| Weight | 0.32 kg |
| Dimensions | 4.1 x 12.5 x 19.0 cm |
| Module Type | SISNet Repeater Module / Network Extender |
| System Platform | DeltaV SIS Process Safety System (DCS) |
| Discontinued Date | December 31, 2018 (Legacy status) |
