HONEYWELL 900B16-0202 HC900 16-Channel Analog Output Module
Sale!
SKU: 900B16-0202
HONEYWELL 900B16-0202 HC900 16-Channel Analog Output Module
Order the original Honeywell 900B16-0202 Analog Output Card for HC900/Experion controllers. Factory-new stock with complete warranty and worldwide shipping.
The HONEYWELL 900B16-0202 is a high-density, 16-channel analog output card designed primarily for the Honeywell HC900 Process Controller family, while seamlessly integrating into broader Experion PKS distributed environments. It delivers exact current regulation across continuous control loops, driving final control elements such as variable speed drives, modulating control valves, and positioners.
Hardware Specifications
Parameter
Specification
Model Number
900B16-0202
Brand
HONEYWELL
Origin
USA
Module Type
16-Channel Analog Output Card (AO)
Range of Product
HC900 Controller System / Experion PKS
Output Signal Range
0 to 21.0 mA (Configurable, fits standard 4-20 mA loops)
Isolation Architecture
Galvanic group isolation (arranged in groups of 4)
Wiring Connection
Euro-style 36-terminal block
Weight
0.45 kg
Dimensions
3.7 x 15.8 x 13.6 cm
Lifecycle Status
Active / In Production
Key Functional Features
Advanced Isolation Matrix: Channels are arranged in isolated groups of four. This design creates a critical buffer that protects internal controller logic from unpredictable field-side electrical surges, spikes, or ground loop noise.
Intelligent Failsafe Controls: In the event of a communication drop between the processor rack and the I/O bus, the card relies on user-preconfigured failsafe values. Channels can be set to hold their last valid value or transition smoothly to a designated safe current state.
Output Slew Rate Conditioning: Includes configurable rate-of-change limits per channel. This keeps valves or heavy machinery from snapping open or closed too suddenly during abrupt setpoint variations, reducing mechanical wear and process shock.
Real-Time Diagnostics: Features prominent status LEDs. A blinking green LED indicates an active communication scan, while an immediate solid red indicator points out a hardware fault or loop error condition.
Field Installation Guidelines
Hot-Swapping Preparation: The HC900 platform supports standard hot-swapping under power. However, ensure that any control loops associated with the card are placed into manual mode or isolated prior to removing or replacing the module.
Terminal Insertion: Secure the Euro-style 36-pin terminal block completely into the module casing. Tighten terminal compression screws carefully to maintain low-impedance electrical contact for the current loops.
Shielding & Interference: Always wrap current-loop signaling pairs in a twisted-shielded cable structure. Ground the shielding foil explicitly at the controller enclosure’s master ground point to reject external electromagnetic interference (EMI).

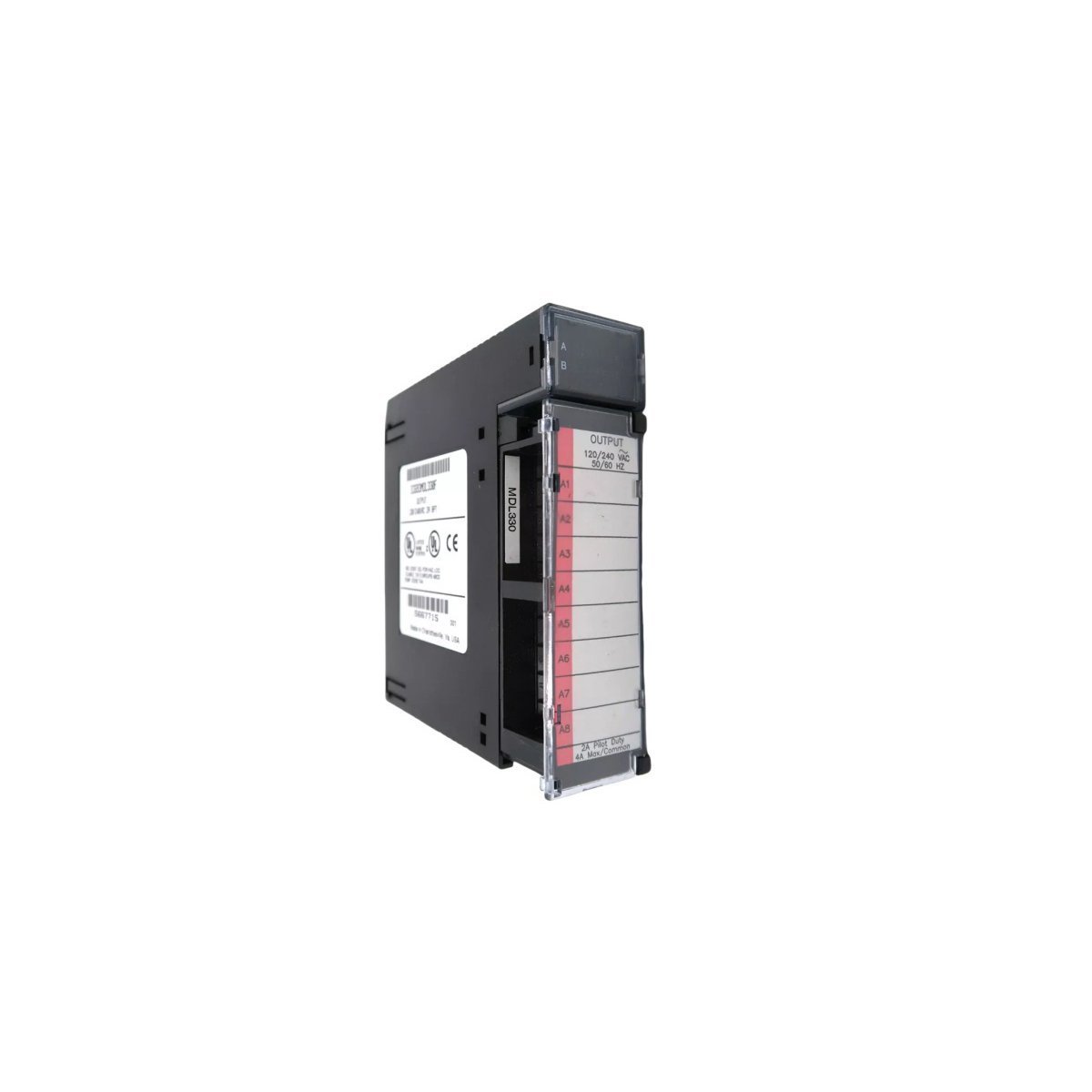

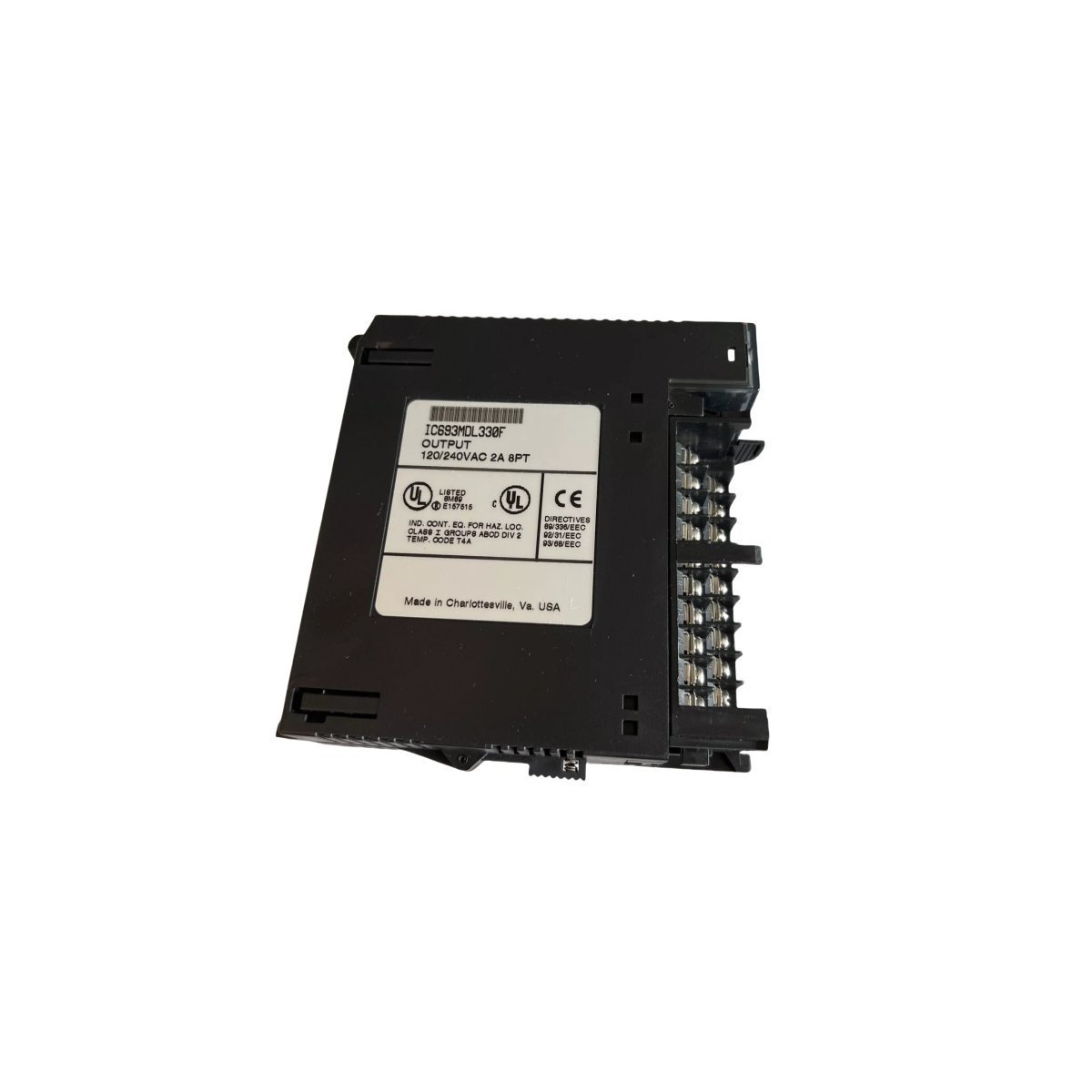

The GE IC693MDL330, also cataloged as the IC693MDL330 Positive Logic Output Module, operates as a dedicated hardware component for discrete AC load control within PACSystems RX3i platforms.
Hardware Specifications
Parameter
Specification
Model
IC693MDL330
Brand
GE
Origin
USA
Weight
0.28 kg
Dimensions
3.5 x 13 x 13.5 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption / Output
8 output points (120-240 VAC, 2 A max per point)
Backplane Bus Communication and Firmware Compatibility
The module interfaces directly with the PACSystems RX3i backplane bus, utilizing high-velocity backplane communication licenses to execute discrete command outputs across deterministic scan cycles. Firmware flash compatibility enables remote diagnostic updates and parameter configuration without requiring physical module extraction from the baseplate mounting slot.
Frequently Asked Questions
Q: How are the discrete output points grouped and electrically isolated on this module?A: The 8 output points are arranged into 2 isolated groups of 4 outputs each, allowing separate AC phase connections protected by individual 5 A fuses.Q: What is the minimum load current requirement for proper operation of each output point?A: Each output point requires a minimum load current of 100 mA to maintain valid state switching and prevent leakage voltage drop issues.
Field Installation Guidelines
Ensure that all external AC power sources feeding the output terminals are fully isolated before performing insertion or removal from the baseplate slot. Secure the module housing using the integrated top and bottom mounting screws to guarantee proper chassis grounding, and verify that field wiring maintains correct clearance from high-voltage raceways.
The Yokogawa ADR541-P10 S1 is a 16-channel analog output module designed for the CENTUM VP DCS. It features PWM and time-proportional control, providing precise signal management for field devices in demanding industrial automation environments.
The Allen-Bradley 1794-OE12 is a 12-channel FLEX I/O analog output module. It offers 16-bit resolution for ±10V and 4-20mA signals with 0.1% accuracy. This high-density module provides precise control for actuators and process valves in distributed I/O systems.
The Allen Bradley 1771-OFE1 is a 4-channel analog voltage output module for PLC-5 systems. It provides 12-bit resolution across 0-10V, 1-5V, and ±10V ranges. This single-slot module features 1500V isolation and integrated short-circuit protection for reliable industrial control.
The Allen-Bradley 1746-NO4I is a 4-channel analog current output module for SLC 500 controllers. It provides 16-bit resolution for 0-20mA and 4-20mA signals. This compact 0.2kg module ensures precise control for valves and drives in industrial automation.
The GE Fanuc IC697ALG320 is a high-level 4-channel analog output module for Series 90-70 PLCs. Featuring 16-bit resolution, it supports $\pm$10V voltage and 4-20mA current signals, providing high-speed precision control for industrial valves and drives.
The GE Emerson IC694ALG392 is a high-density PACSystems RX3i analog output module featuring 8 independent channels. It supports voltage and current signals (±10V, 4-20mA) with 16-bit resolution, providing precise control for valves and VFDs in demanding industrial automation applications.
The GE Fanuc IC200ALG320 is a 4-channel analog output module for the VersaMax I/O system. It delivers precise 0-10 VDC signals with 12-bit resolution, ideal for controlling VFDs, actuators, and proportional valves in automated environments.
The ICS Triplex T9881 is a high-integrity Analog Output Field Termination Assembly designed for the Trusted TMR system. It provides an 8-channel interface for 4-20mA signals, featuring robust isolation and redundant power support for SIL 3 safety-critical valve and actuator control.
The Triconex 3805H is an 8-channel, 4-20 mA Analog Output module featuring Triple Modular Redundancy (TMR).Designed for SIL 3 safety-critical modulating control, it provides high-precision signal output with integrated loop-back diagnostics and hot-swap capability for maximum process uptime.
The Triconex 3481 is an 8-channel Analog Output module designed for the Triple Modular Redundant (TMR) Tricon safety system.Featuring SIL 3 compliance, high-precision 4–20 mA signals, and integrated loopback diagnostics, this module provides the fault-tolerant control required for critical actuators, modulating valves, and speed governors in industrial safety environments.
The Emerson 1C31129G03 is a precision Ovation Analog Output module designed for high-accuracy control of field actuators and valves. Featuring isolated signal paths and advanced loop diagnostics, this 4-20 mA module ensures stable and reliable process regulation within complex Distributed Control System architectures.
