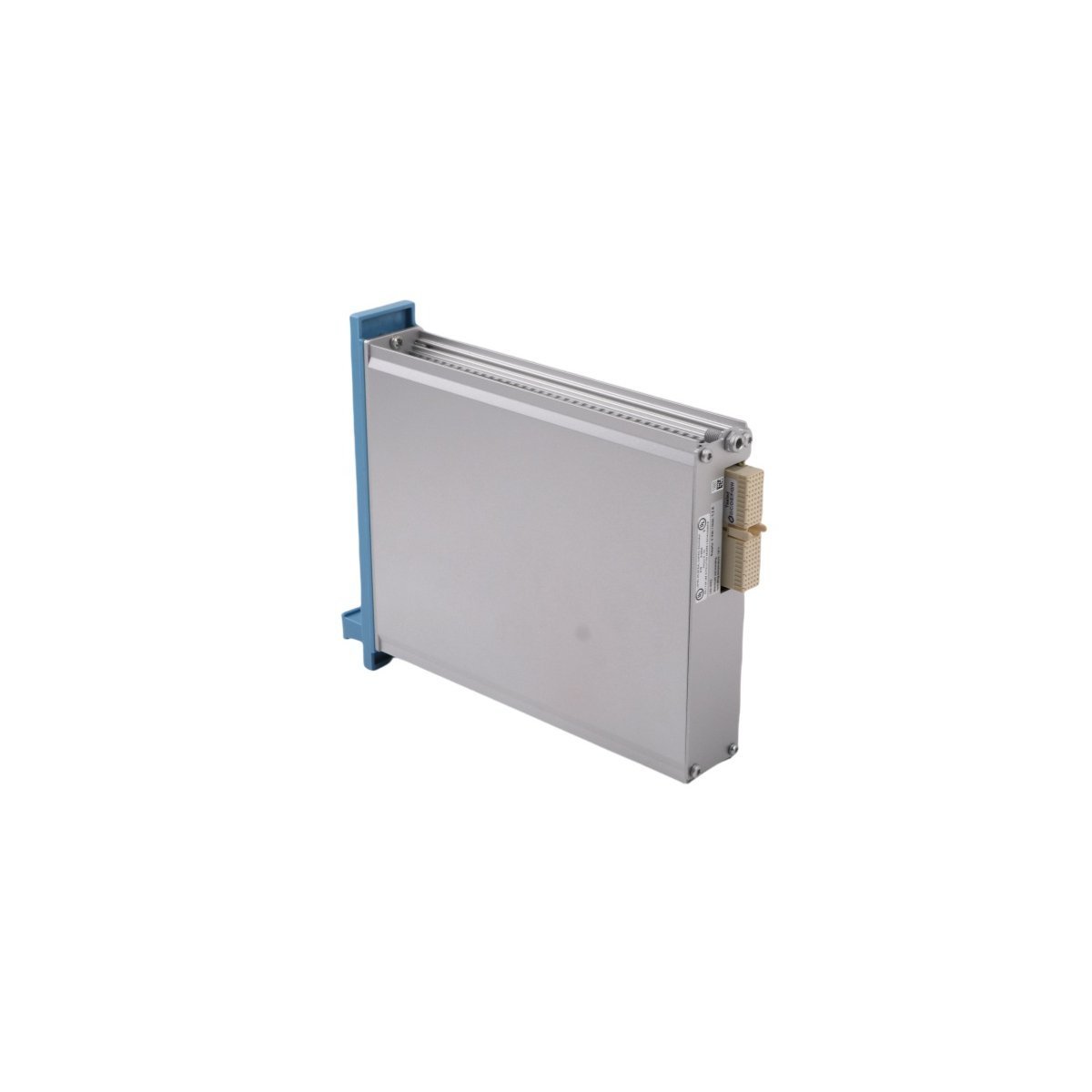

Honeywell FE-USI-0002 V1.0 Safety Manager System Module

Configured for high-integrity safety instrumented functions in Experion PKS platforms, the Honeywell FE-USI-0002 V1.0 (FE-USI-0002 V1.0 Safety Manager System Module) provides direct physical electrical execution for safety-critical logic and I/O interface tasks.

Hardware Specifications

Process Control & Signal Characteristics

The module operates as a Universal Safety Interface (USI) within the Safety Manager architecture, managing data exchange and safety-logic execution. It employs channel-to-channel isolation to prevent electrical fault propagation and ensure loop integrity. For field-level signal processing, the module supports 4-20 mA HART loop protocol connectivity, allowing for integrated diagnostics and process variable monitoring. The module architecture facilitates cold junction compensation (CJC) for integrated thermocouple inputs, ensuring measurement accuracy across fluctuating cabinet temperatures. Deterministic communication is maintained via the EUCN network, with firmware-level diagnostics enabling continuous monitoring of certificate validity and network node status.

Frequently Asked Questions (FAQ)

Q: What action should be taken if diagnostic code EC75 is triggered?

A: Diagnostic code EC75 indicates a certificate-related communication loss, often caused by version mismatches between the module configuration and the Safety Manager release. Verify that the module firmware and Safety Manager software release are compatible (R130.1 or later recommended for EUCN authentication).

Q: Can this module be interchanged between Safety Manager releases?

A: Interchanging modules across releases R16x and below R130.1 requires caution. Modules configured with EUCN authentication in R16x may lose certificates when installed in older systems, resulting in communication failure with the ENIM node.

Q: How does the module handle signal degradation in high-noise environments?

A: The module uses integrated channel-to-channel isolation to mitigate the effects of ground loops and common-mode noise, maintaining signal signal-to-noise ratios required for safety-critical operations.

Field Installation Guidelines

• First, inspect the module backplane connector and safety I/O carrier for pin alignment and oxidation before installation.
• Subsequently, verify that the Safety Manager system firmware release is compatible with the module version (V1.0) to prevent certificate authentication faults.
• Meanwhile, slide the module into the designated carrier slot, ensuring the backplane connector seats firmly without excessive mechanical force.
• Furthermore, tighten the faceplate mounting screws to establish a low-impedance ground path to the system cabinet chassis.
• Finally, perform a cold-start diagnostic sequence via the engineering station to confirm successful node initialization, communication link establishment, and database synchronization.
