Honeywell CC-TAOX01 Analog Output Module

The Honeywell CC-TAOX01 is a high-density 16-channel analog output module engineered for demanding industrial automation environments. This specialized module generates precise 4-20 mA output signals to accurately control field devices such as control valves, actuators, and variable speed drives across various process applications.

Hardware Specifications

4-20 mA HART Loop Protocol Connectivity

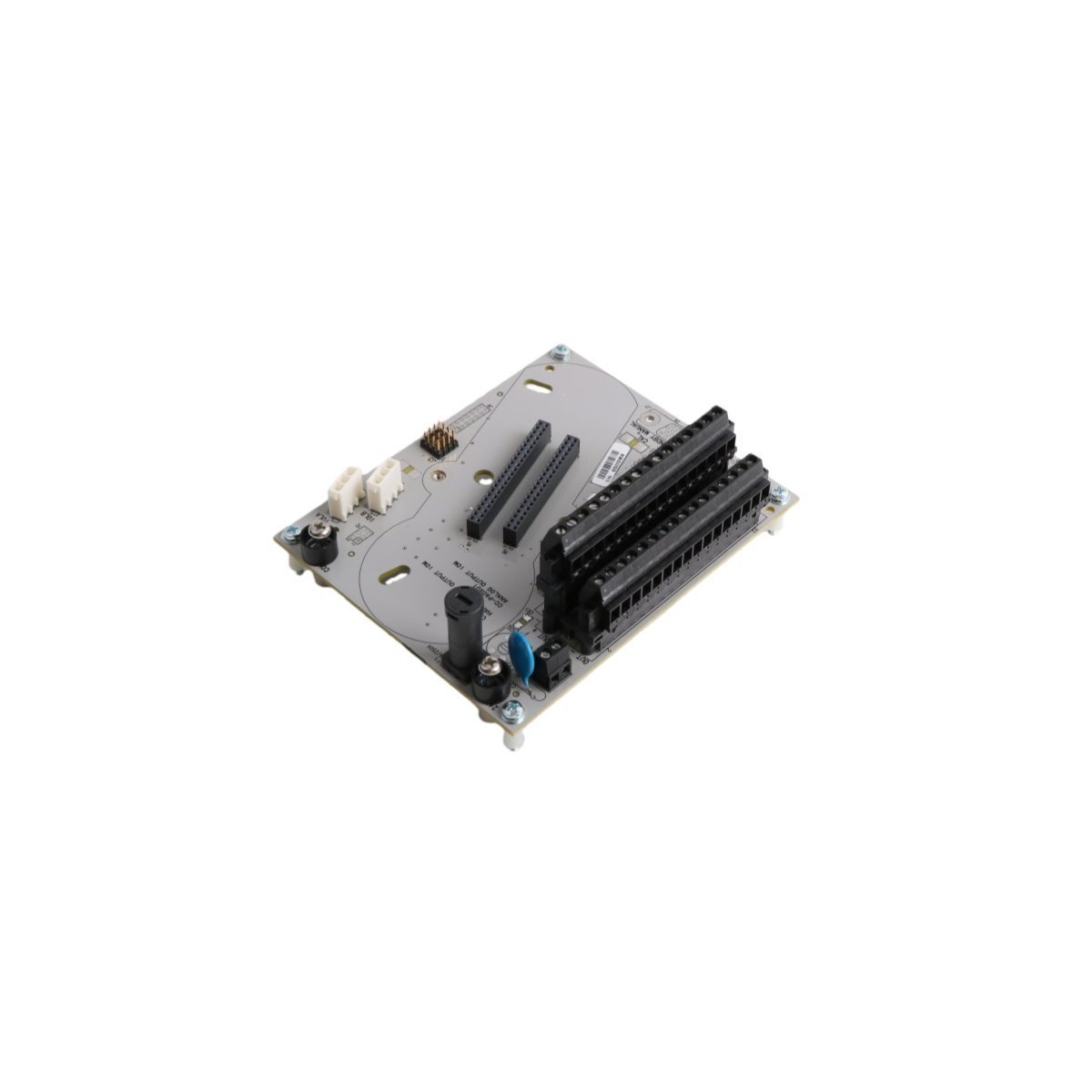

The CC-TAOX01 serves as a critical interface within the Honeywell C300 DCS architecture, connecting to the field via an I/O Link Interface Module (IOLIM) and a Field Termination Assembly (FTA) board, such as the CC-TAOX01 IOTA base. It supports the 4-20 mA HART loop protocol, allowing operators to transmit analog control signals while simultaneously maintaining bidirectional digital communication with intelligent field devices. This dual capability enables real-time monitoring of device health, diagnostics, and configuration parameters without interrupting the primary control loop.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the CC-TAOX01 module?

A: The CC-TAOX01 is a 16-channel analog output module designed to generate precise 4-20 mA signals for controlling field devices like control valves and actuators within the Honeywell C300 DCS system.

Q: Does this module support HART communication?

A: Yes, the CC-TAOX01 supports the 4-20 mA HART loop protocol, enabling bidirectional digital communication with intelligent field devices for diagnostics and configuration.

Q: What type of FTA board is required for this module?

A: The CC-TAOX01 module is typically paired with the CC-TAOX01 IOTA base (FTA board), which provides the physical wiring interface and signal conditioning for the field connections.

Field Installation Guidelines

1. Verify the target IOLIM slot and ensure the corresponding C300 controller is properly configured in the Control Builder software.
2. Connect the CC-TAOX01 module to the appropriate I/O Link Interface Module (IOLIM) and secure the retaining hardware.
3. Route field wiring to the FTA board terminals, ensuring that shielded cables are used for 4-20 mA HART signals to maintain signal integrity.
4. Terminate all field wires according to the FTA wiring diagram, verifying correct polarity for each of the 16 analog output channels.
5. Perform loop testing and verify HART communication with the field device using the Control Builder monitoring environment before returning the system to active control.
