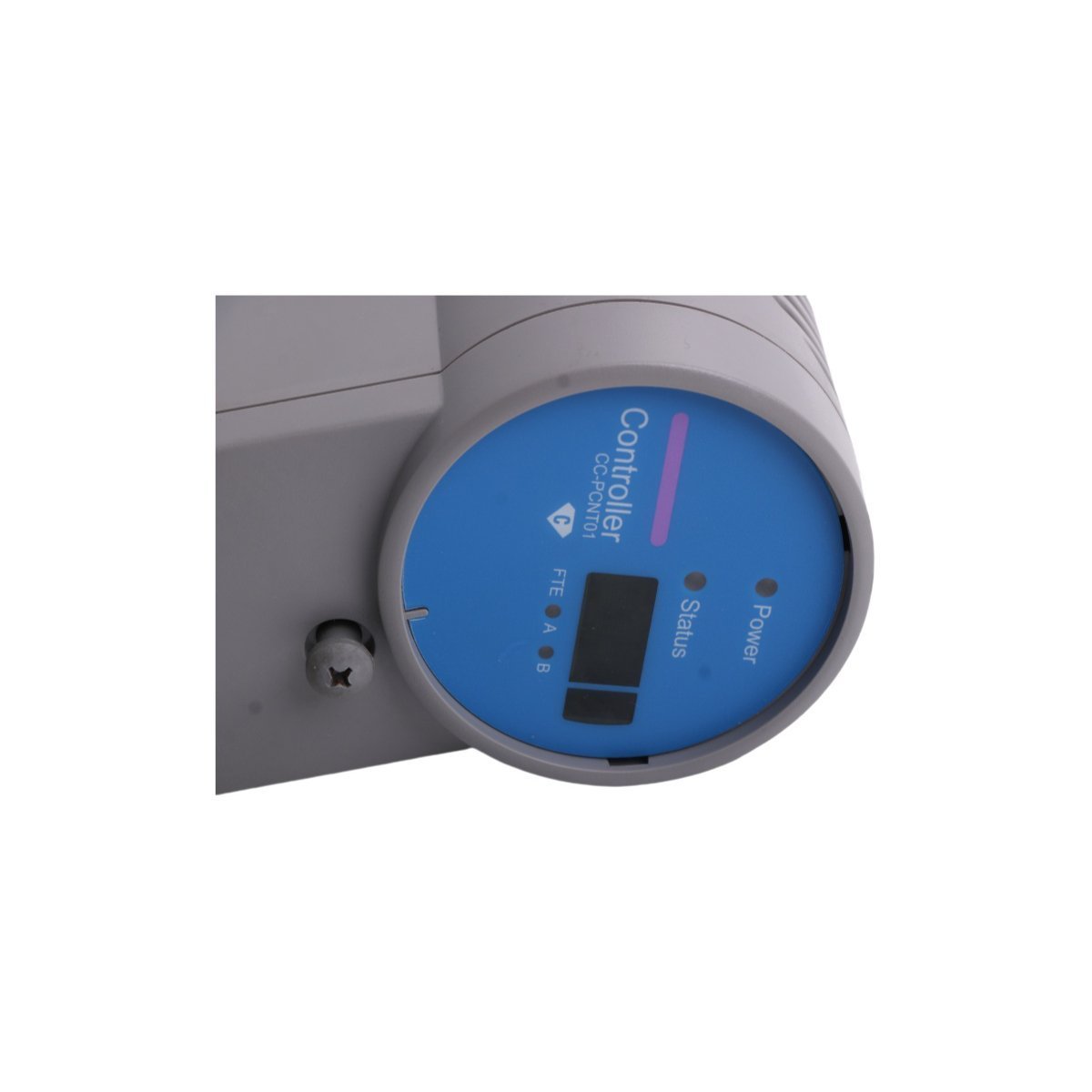

Honeywell CC-PCNT01 51405046-175 High Production Capacity

Request a Quote

The Honeywell CC-PCNT01 51405046-175, also cataloged as the CC-PCNT01 51405046-175 High Production Capacity, operates as a dedicated hardware component for deterministic data transmission and network communication routing within Experion PKS platforms.

Hardware Specifications

ParameterSpecification
ModelCC-PCNT01 51405046-175
BrandHoneywell
OriginUSA
Weight0.46 kg
Dimensions21 x 20.7 x 7.5 cm
Operating Temp-40 deg C to 85 deg C
Power Consumption24 VDC nominal
Module TypeHigh Production Capacity
Range of ProductExperion PKS
SystemDCS
Communication ServiceEthernet router
StatusActive

Architectural Integration and Signal Loop Isolation

The module manages analog and digital signal processing routines through integrated 4-20 mA HART loop protocol interfaces, maintaining data integrity across distributed nodes. Channel-to-channel isolation architecture prevents ground loops and electrical noise propagation in high-voltage industrial enclosures. Furthermore, embedded cold junction compensation (CJC) mechanisms stabilize thermocouple measurements, while dual-port Ethernet routing facilitates redundant network paths and robust channel protection.

Frequently Asked Questions

Q: What is the backplane current consumption limit when mounting multiple CC-PCNT01 51405046-175 units in a single I/O chassis?

A: Each module draws a regulated current load from the system power bus; total slot population must not exceed the maximum amperage output specified for the local power supply module.

Q: Does the module support online hot-swapping during active process operations?

A: Yes, active backplane design permits physical replacement under power, provided that redundant communication paths and fail-safe state execution are verified prior to card extraction.

Field Installation Guidelines

  • Mount the unit vertically on a standard 35 mm DIN rail to maintain convection cooling profiles across the housing vents.
  • Ensure all shield drain wires from field cables are terminated directly to the designated earth grounding bar to prevent electromagnetic coupling.
  • Maintain a minimum clearance of 50 mm above and below the module enclosure to allow adequate thermal dissipation within the marshalling cabinet.
