SKU: FS-IOBUS-CPIO8

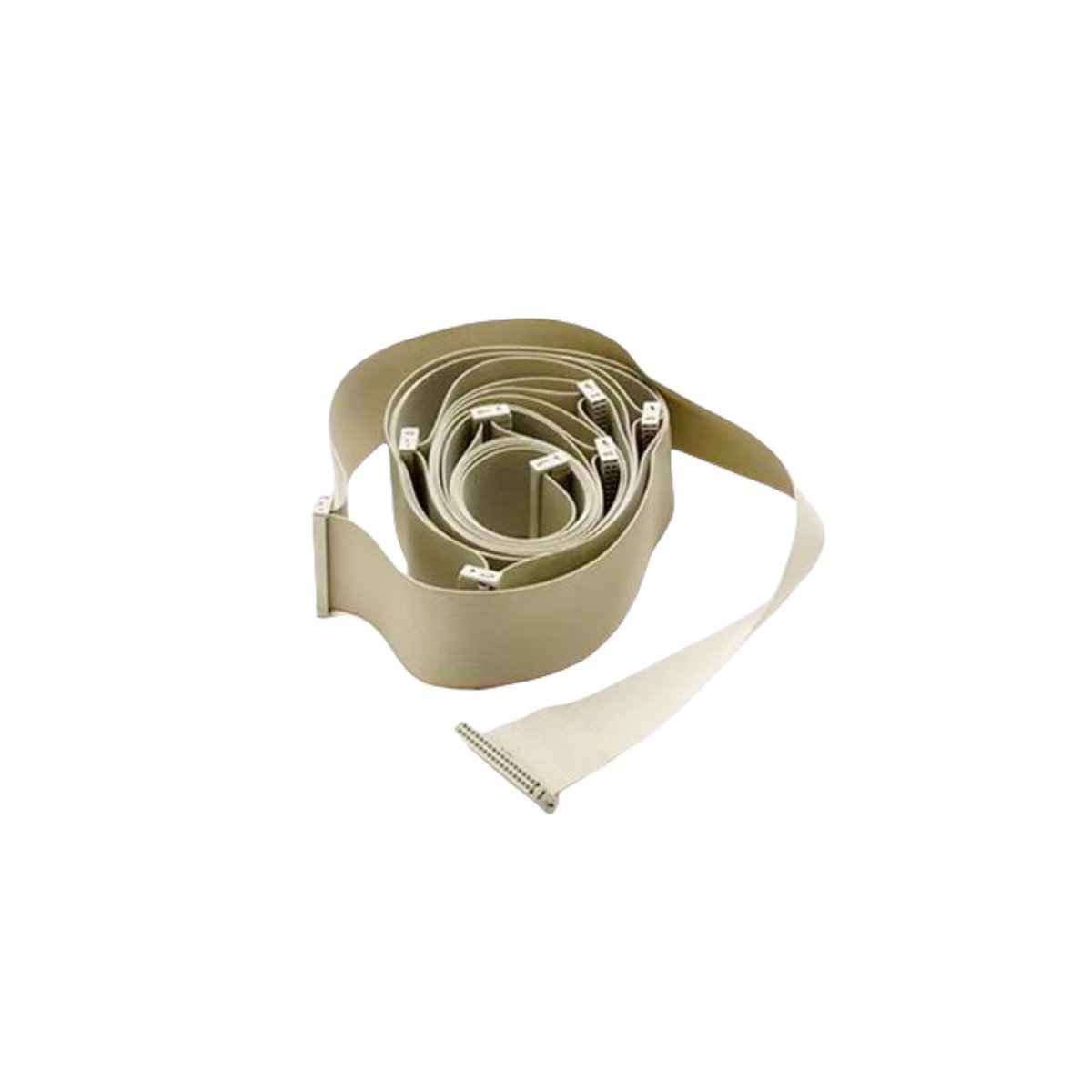

HONEYWELL FS-IOBUS-CPIO8 I/O Bus Control Module
Buy the original Honeywell FS-IOBUS-CPIO8 I/O Bus Controller module. Designed for Safety Manager controller chassis. Built for SIL3-rated industrial safety loops. Certified authentic USA-origin stock.
The HONEYWELL FS-IOBUS-CPIO8 is a safety-critical I/O bus control and interface card designed for Honeywell Safety Manager systems. Functioning as an integral backplane infrastructure component within the main Controller Chassis (CPCHAS), this module coordinates high-integrity parallel data communication between the safety processors and the system’s distributed I/O modules. It features built-in dual-channel safety isolation and high-density interface paths to ensure deterministic process validation under strict Safety Integrity Level 3 (SIL3) operating constraints.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FS-IOBUS-CPIO8 |
| Manufacturer | Honeywell |
| Origin | USA |
| Weight | 0.9 kg |
| Dimensions | 17.4 x 8.6 x 1.8 cm |
| Module Type | I/O Bus Controller / Driver (Main Controller Chassis) |
| Safety Rating | SIL3 Certified (TÜV Approved Architecture) |
| Operating Temperature | -40°C to +70°C |
| Power Requirements | 24VDC Nominal / 180VA Max consumption block |
| Mechanical Profile | Rack-mountable directly into CPCHAS slot assembly |
| Integration Context | Emergency Shutdown (ESD) / Fire & Gas (F&G) Safety Instrumented Systems |
| Lifecycle Status | Legacy Status (Discontinued by OEM on Dec 31, 2018) |
| HS Code | 8537101190 |
System Integration & Bus Topology
The FS-IOBUS-CPIO8 sits directly on the internal controller backplane matrix of the Safety Manager system. Rather than routing data via typical high-latency network packet architectures, it uses a high-speed parallel bus architecture to sync input/output image tables directly with the main processors.
The module features advanced cross-talk suppression and electrical isolation to prevent a physical fault on a field I/O line from propagating down the backplane lines. Operating reliably across an extended temperature range of -40°C to +70°C, it delivers the consistent performance required for hazardous industrial setups like petrochemical hubs, offshore drilling platforms, and power generation facilities.
Frequently Asked Questions
Q: What is the primary functional difference between the FS-IOBUS-CPIO6 and the FS-IOBUS-CPIO8?
A: The FS-IOBUS-CPIO6 is tailored to drive and extend bus lines into remote extension cabinets (specifically covering cabinet positions 1 through 6). The FS-IOBUS-CPIO8 is designed to mount within the primary Controller Chassis (CPCHAS) layer, acting as a high-density primary driver bus interface directly integrated into the safety processor core backplane.
Q: Can this module be swapped while the Safety Instrumented System (SIS) is actively protecting a live process?
A: No. While the card is engineered with a rugged physical frame, removing the primary controller chassis I/O bus module disrupts the communication paths to all downstream input/output sub-racks. Losing this core data link forces the Safety Manager into a fail-safe state, which will trigger an emergency shutdown (ESD) of the connected process loops.
Q: Why does this small module have a high power consumption specification of 180VA?
A: The 180VA rating represents the maximum electrical power budget allocation authorized through the card’s multi-channel driver arrays to power the internal parallel bus lines and signal isolation couplers across a fully loaded chassis backplane.
Installation Guidelines
- Chassis Slot Alignment: Carefully slide the module into its assigned slot within the CPCHAS rack frame. Ensure the rear multi-pin bus connectors align perfectly with the backplane receivers before applying pressure to seat the card.
- Chassis Grounding Check: Securely tighten the module’s integrated retention screws to the rack frame. This metal-to-metal contact is vital to establish a low-impedance grounding path that shields the high-speed safety bus from electromagnetic noise.
- Firmware Validation: Confirm that the safety processor’s core firmware patch level is compatible with the version tracking revision code of the FS-IOBUS-CPIO8 card prior to system initialization.
- Airflow Optimization: Keep the card’s faceplate slots clean and unobstructed. In high-density cabinet installations, ensure the enclosure’s cooling fans maintain steady airflow to dissipate heat from the module’s internal power components.
