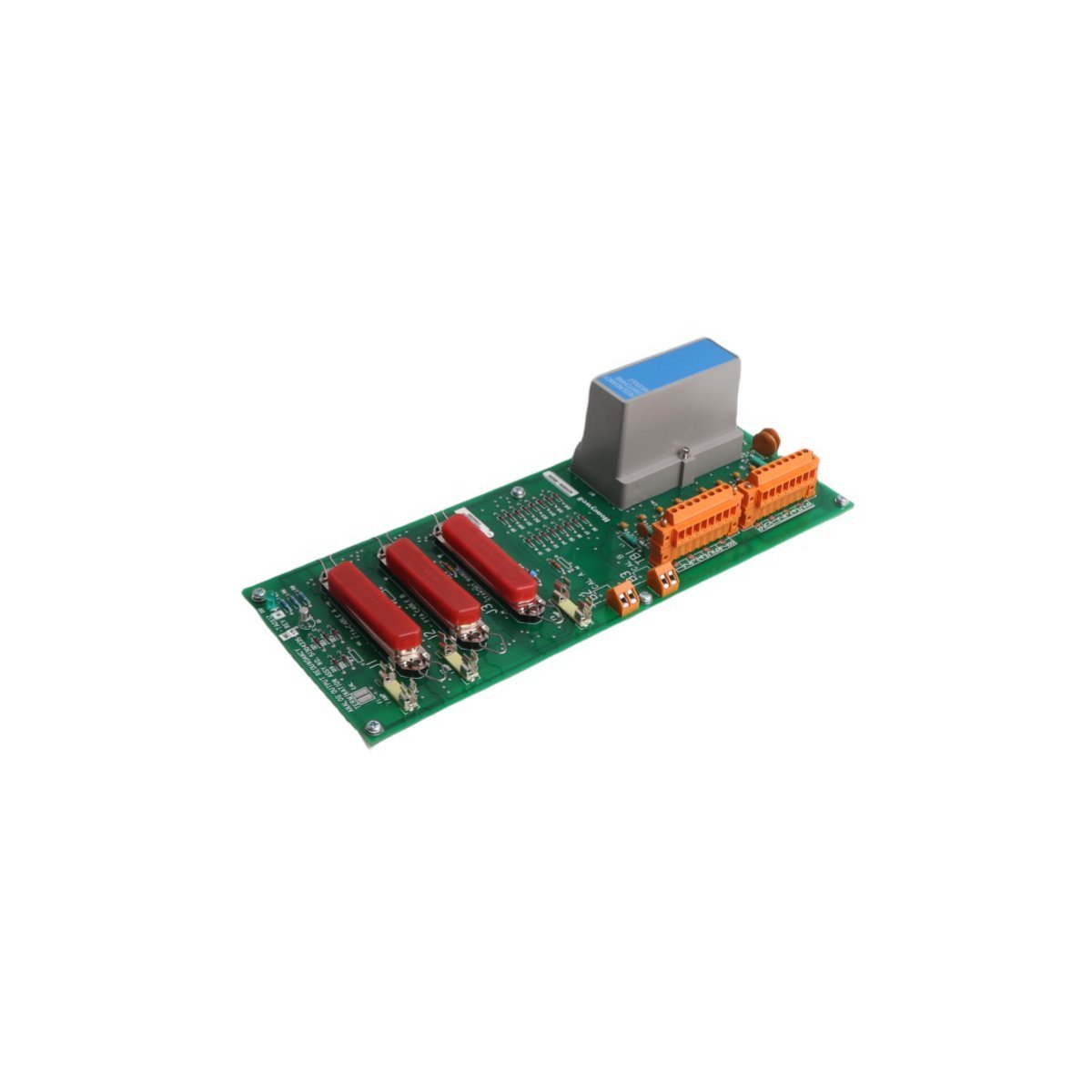

Honeywell MC-TAOX12 Digital Input Field Termination Assembly

Configured for signal termination and field interfacing in Distributed Control System (DCS) architectures, the Honeywell MC-TAOX12 51304335-175 (MC-TAOX12 Digital Input Field Termination Assembly) provides direct electrical execution for process input signals.

Hardware Specifications

Process Control and DCS Connectivity

Signal integrity is maintained within the DCS environment through the implementation of dedicated input termination pathways. Consequently, data acquisition is facilitated by the MC-TAOX12, whereby field sensor signals are processed and subsequently routed to the control cabinet backplane. Furthermore, channel-to-channel isolation is utilized so that common-mode noise propagation is effectively prevented. In this manner, it is ensured that 4-20 mA HART loop protocol signals or discrete inputs are accurately translated. Additionally, cold junction compensation (CJC) is managed via the associated termination logic; meanwhile, loop impedance is calibrated to match specific field requirements. Finally, data transmission is executed through standardized backplane interfaces, which are continuously monitored, thereby minimizing signal attenuation across long-distance field wiring.

Frequently Asked Questions

Q: Are the input channels on the MC-TAOX12 protected against overvoltage conditions?

A: Yes, transient voltage suppression is integrated into the circuitry to protect the termination assembly from potential electrical surges originating from field-side wiring.

Q: Can the MC-TAOX12 be hot-swapped during active system operation?

A: While physical removal is possible, it is recommended that the associated loop power be de-energized to prevent potential ground faults during the extraction of the assembly from the backplane.

Field Installation Guidelines

The MC-TAOX12 is designed for installation within a standard control cabinet environment on a horizontal or vertical mounting rail.

1. Mounting: The assembly must be securely fastened to the DIN-rail to ensure grounding continuity. Mechanical vibrations should be minimized by torqueing all terminal screws to the manufacturer’s specified value.
2. Wiring: Shielded twisted-pair cabling is required for signal runs to mitigate electromagnetic interference (EMI). The cable shields should be landed at the designated chassis ground busbar to maintain signal reference integrity.
3. Environmental Considerations: Exposure to high humidity or corrosive atmospheres should be avoided. If installed in environments with ambient temperatures exceeding 50 deg C, forced air ventilation is required to ensure the thermal dissipation of the assembly is sustained.
