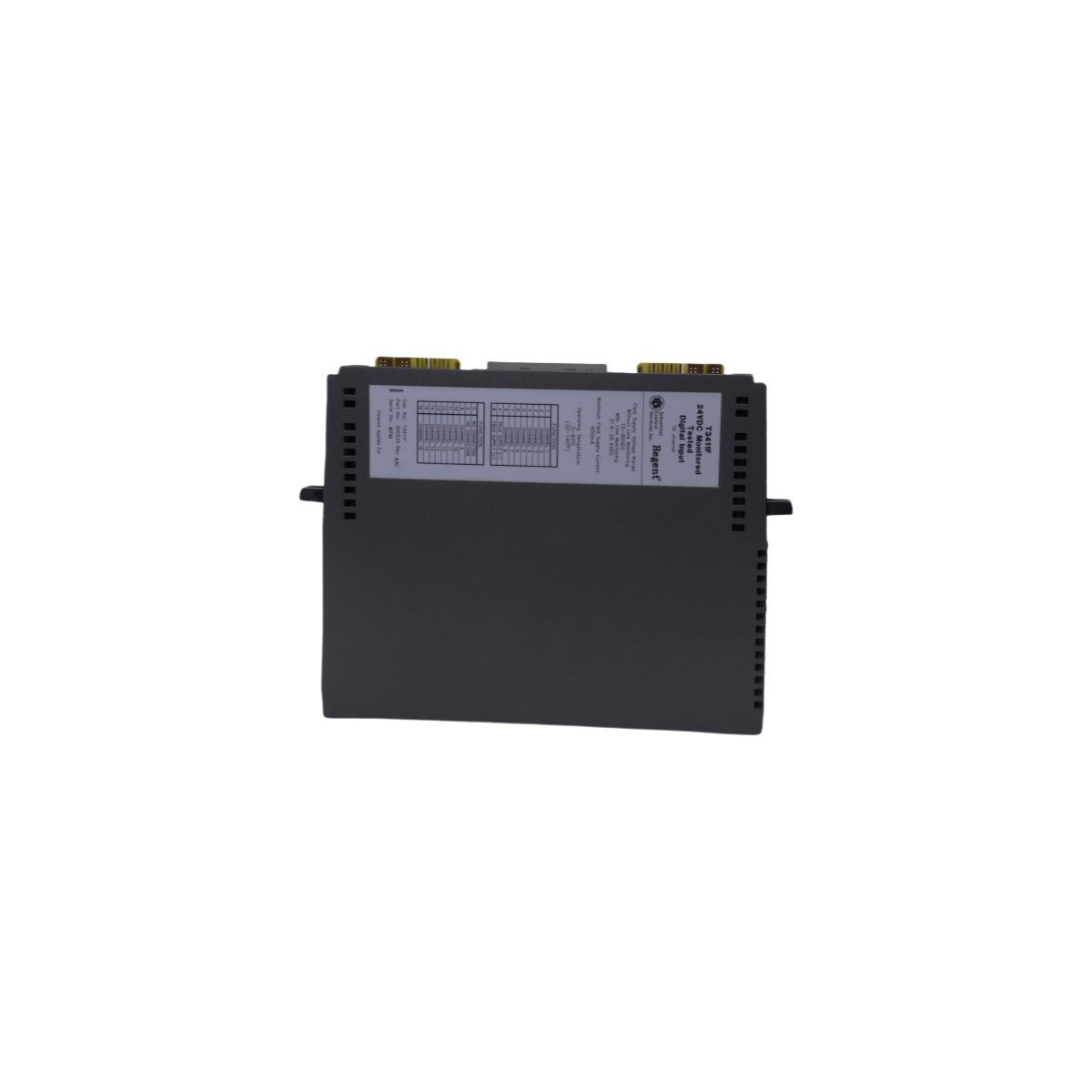

ICS Triplex T3411F Trusted Monitored Digital Input Module

Technical Overview

The ICS Triplex T3411F functions as a high-integrity, 8-channel monitored digital input module designed for the Trusted Triple Modular Redundant (TMR) safety platform. This module actively monitors field inputs for safety-critical applications, ensuring that every signal state is validated through the system’s triple-path architecture. By utilizing advanced line-monitoring capabilities, the T3411F distinguishes between normal operational states and potential field faults, such as open circuits or short circuits. Essentially, it serves as a specialized diagnostic interface, thereby providing the high-fidelity data necessary for the controller to execute precise safety-instrumented functions in hazardous zones.

Key Features and Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)
• Product Line: Trusted TMR Safety System
• Model Identifier: T3411F
• Input Configuration: 8 Monitored Digital Input Channels
• Safety Rating: Certified for use in SIL 3 safety-related systems
• Diagnostic Capability: Integrated line monitoring for wire-break and short-circuit detection
• Signal Type: Dry contact or voltage-sensing inputs with diagnostic resistance
• Architecture: Triple Modular Redundant (TMR) internal hardware voting
• Protection: Conformal coating for resilience against corrosive industrial atmospheres

Functional Integration and Advanced Diagnostics

The T3411F manages the complexities of signal verification by employing an internal hardware-voting mechanism across three independent processing branches. This module actively compares the incoming field signals; consequently, it can detect and isolate a single-point internal failure without interrupting the protective function. In addition to this redundancy, the module utilizes sophisticated threshold-sensing logic to monitor the impedance of the field loop.

Furthermore, the “F” designation indicates a hardware revision optimized for fail-safe performance and enhanced frequency response. As a result of this design, the module identifies field wiring anomalies instantly and reports them to the central processor for immediate operator notification. Moreover, the T3411F supports high-speed Sequence of Events (SOE) recording; accordingly, it captures state changes with millisecond precision to aid in post-incident analysis. In light of these comprehensive features, the system ensures that the safety loop remains transparent and fully operational even under adverse electrical conditions.

Application and Reliability

Engineers specify the ICS Triplex T3411F for mission-critical sectors such as offshore oil and gas, petrochemical refining, and nuclear power generation. The module provides the ruggedized durability required to withstand the high electromagnetic interference and thermal cycling typical of remote industrial sites. Beyond its physical toughness, the monitored input module facilitates the safe management of fire and gas (F&G) detectors and emergency shutdown (ESD) switches, thereby protecting personnel and high-value assets.

Because the module features a hot-swappable interface, maintenance crews can perform hardware replacements without de-energizing the safety system or halting production. Ultimately, the T3411F delivers the deterministic response times and extreme fault tolerance required to maintain a safe operating environment, thus upholding the operational integrity of global safety infrastructure. By virtue of its 8-channel monitored design, it provides the granular diagnostic detail necessary for proactive maintenance and long-term system reliability.
