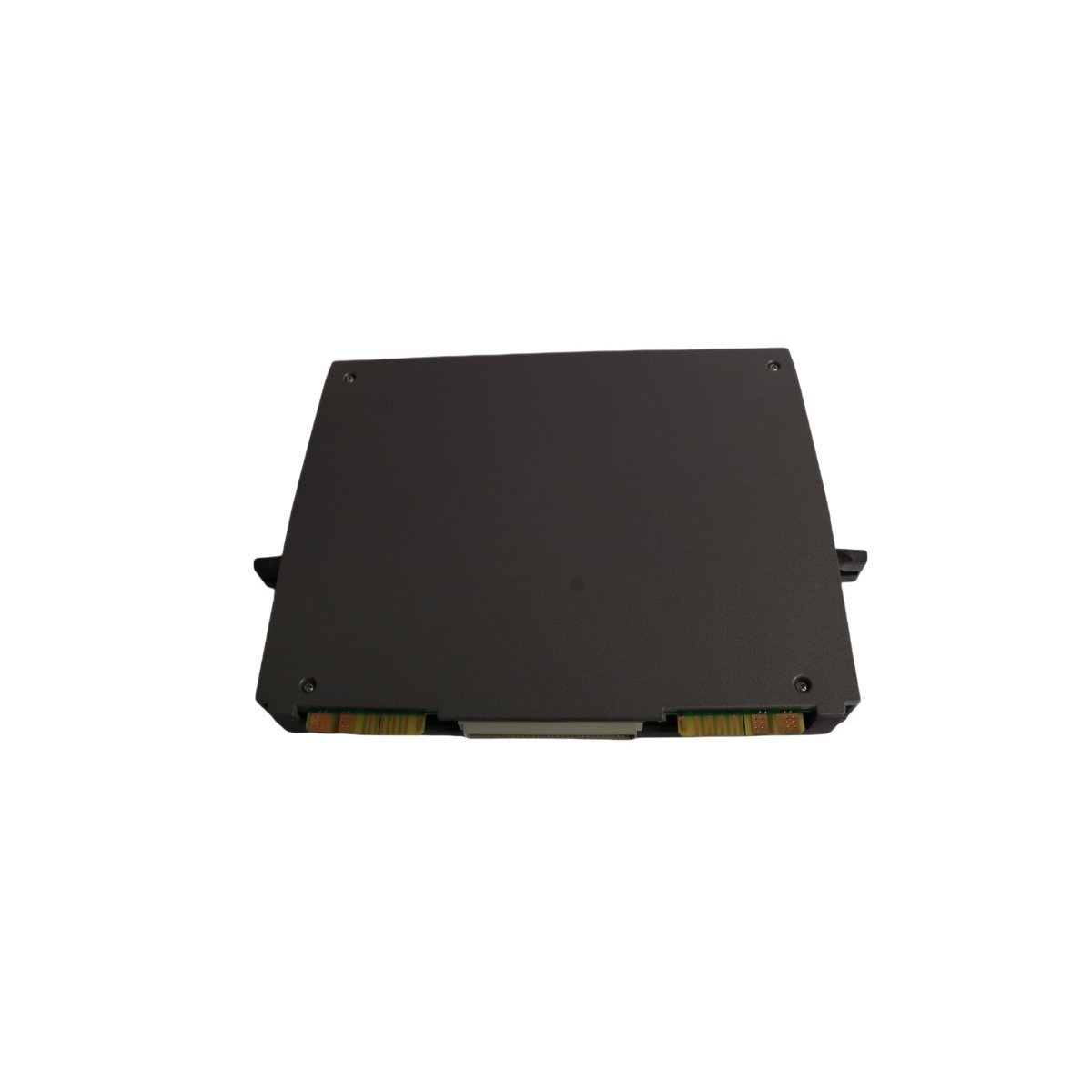

ICS Triplex Regent T3411 Monitored Digital Input Module

Product Overview

The ICS Triplex T3411 functions as a high-integrity Monitored Digital Input Module specifically engineered for the Regent Fault Tolerant Control System. This module plays a vital role in safety-instrumented systems (SIS) by interface between field sensors and the controller. Because it utilizes a Triple Modular Redundant (TMR) architecture, the T3411 guarantees that a single point of failure will not compromise the safety function or cause an unnecessary process trip.

Functional Capabilities

As a “monitored” module, the T3411 actively supervises the integrity of the field wiring in addition to reporting the state of the input. Specifically, the module detects open circuits and short circuits in the field loops by measuring current flow through end-of-line resistors. Moreover, the T3411 incorporates a comprehensive self-test regime that continuously verifies the health of its internal input circuitry. To maintain high availability, the module performs voting on the input data across three independent paths. Consequently, if one internal circuit disagrees with the others, the module identifies the fault and reports it to the system while still providing the correct data to the processor. Furthermore, its rugged construction allows the module to withstand the high vibration and thermal variations typical of offshore platforms and chemical refineries.

Technical Specifications

• Brand: ICS Triplex (Rockwell Automation)
• Model Number: T3411
• Product Line: Regent Control System
• Module Type: Monitored Digital Input Module
• Redundancy: Triple Modular Redundant (TMR) / Fault Tolerant
• Monitoring Features: Line Monitoring (Open/Short Circuit Detection)
• Dimensions: 3.2 x 26.5 x 36.0 cm
• Net Weight: 1.52 kg
• Country of Origin: USA
• System Application: PLC / Safety Instrumented System (SIS)

Primary Applications

Safety engineers routinely specify the T3411 for mission-critical applications within the oil and gas, energy, and chemical processing sectors. Because the module offers superior fault tolerance, it ideally supports Emergency Shutdown (ESD) systems, Fire and Gas (F&G) monitoring, and Burner Management Systems (BMS). Additionally, the module’s ability to detect field wiring faults makes it indispensable for remote installations where manual loop testing is difficult or dangerous. Ultimately, the T3411 provides the precision and dependability necessary to protect personnel, the environment, and high-value industrial assets.
