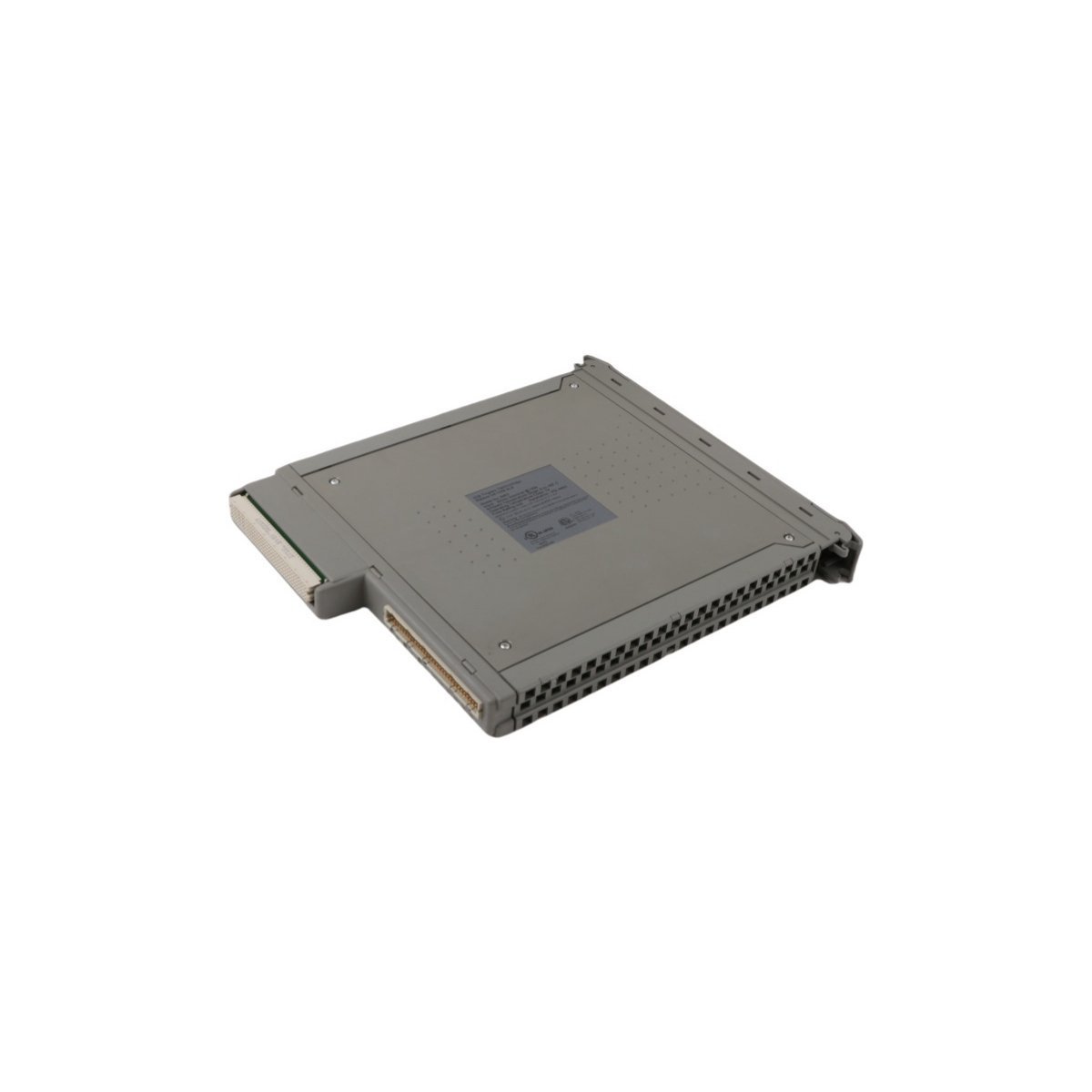

ICS Triplex T8403 Trusted TMR 24 Vdc Digital Input Module

Product Overview

The ICS Triplex T8403, a core component of the Rockwell Automation Trusted family, is a 40-channel Triple Modular Redundant (TMR) Digital Input Module. It provides a high-integrity interface between field-based sensors and the Trusted Controller. By utilizing a 2-out-of-3 (2oo3) voting architecture, the T8403 identifies and compensates for internal hardware faults, ensuring that the process remains online and safe even if a component fails. This module is specifically designed for critical control, emergency shutdown (ESD), and fire and gas (F&G) detection systems where safety and availability are the highest priorities.

Technical Performance and Diagnostic Integrity

To ensure maximum signal reliability, the T8403 performs continuous self-tests across all 40 channels, including exhaustive line monitoring for field wiring faults. Furthermore, the module utilizes sophisticated internal diagnostics to detect “stuck-at” faults and cross-talk between channels. Because the module possesses a high-speed internal bus interface, it transmits status data to the TMR processor with minimal latency. Meanwhile, the module provides opto-isolation for every channel, effectively shielding the internal logic from high-voltage transients and electrical noise typical in industrial environments. Additionally, the on-board “Smart” processing enables per-channel configuration for sequence-of-events (SOE) recording with millisecond precision.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Number: T8403
• Module Type: TMR Digital Input (24 Vdc)
• Number of Channels: 40 Isolated Inputs
• System Series: Trusted TMR System
• Operating Voltage: 24 Vdc Nominal (Field Side)
• Physical Dimensions: 3.0 cm x 30.2 cm x 26.4 cm
• Unit Weight: 1.2 kg
• Communication: Dual Redundant Expander Bus Interface
• Sequence of Events (SOE): Supported (1 ms resolution)

Industrial Resilience and Maintenance

Rockwell engineered the T8403 to survive in the most demanding industrial sectors, including deep-water oil rigs, chemical refineries, and power generation facilities. Since the module is housed in a ruggedized assembly, it withstands significant mechanical vibration and thermal stress. Furthermore, the T8403 supports true “Hot Swap” functionality. This means maintenance personnel can replace a module in a live system without disrupting the control logic or compromising the safety integrity level. In addition to its physical durability, the module complies with strict SIL 3 safety standards. Ultimately, the T8403 delivers a cost-effective yet uncompromising solution for facilities that require the highest possible uptime and process safety.
