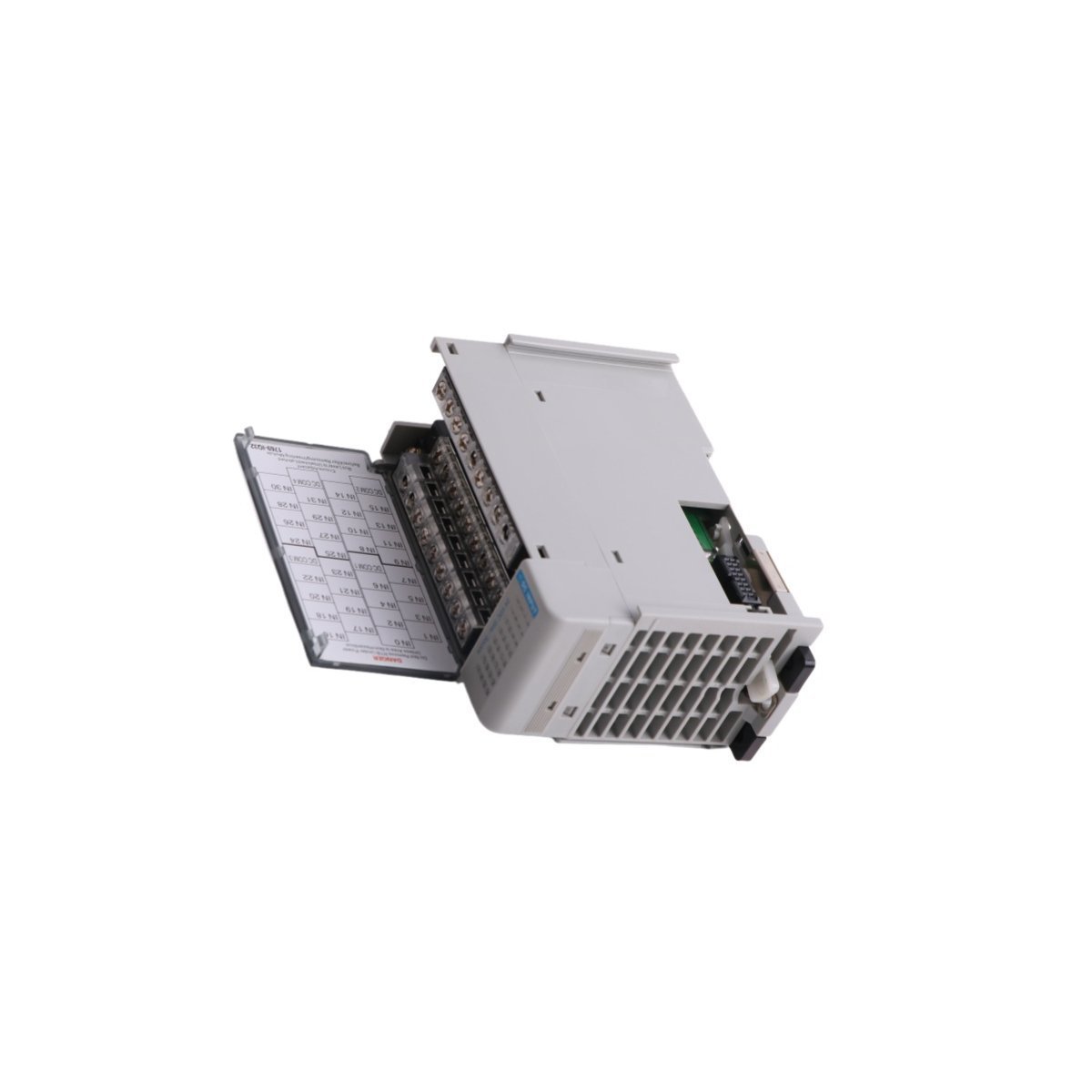

Allen-Bradley 1769-IQ32 Compact Digital Input Module

The Allen-Bradley 1769-IQ32 is a high-density, 32-point digital DC input module belonging to the Compact I/O family. Engineered for seamless integration with CompactLogix 5370 controllers and MicroLogix 1500 systems, this module provides high-channel-count monitoring in a narrow footprint. It enables a control system to interface simultaneously with dozens of binary field devices such as proximity sensors, push buttons, limit switches, and photoelectric eyes.

Hardware Specifications

Sinking vs. Sourcing and Group-to-Group Isolation

The 1769-IQ32 offers flexible electrical wiring arrangements by incorporating a sinking/sourcing input structure. The 32 inputs are divided into two distinct, isolated groups of 16 channels (Group 0: Inputs 0 to 15; Group 1: Inputs 16 to 31). Each group has its own dedicated common terminal (VDC COM 0 and VDC COM 1).

• Sinking Configuration: Connect the module common terminal to the negative DC return track (-VDC). The field device will supply positive voltage (+VDC) to the input point when actuated.
• Sourcing Configuration: Connect the module common terminal to the positive DC power supply track (+VDC). The field device will pull the input point down to the negative return loop (-VDC) when closed.

The galvanic group-to-group isolation layer prevents electrical faults, voltage fluctuations, or ground loop noise on one set of field devices from disrupting or transferring over to the second wiring group.

Frequently Asked Questions

Q: Why does the module datasheet specify a reduced operating voltage at 60°C?

A: High-density input circuits generate internal dissipation heat when multiple channels are turned on at the same time. To prevent thermal stress on internal components when operating in maximum ambient environments up to 60°C, the incoming field signal loop voltage must be maintained below 26.4 VDC.

Q: Can this module be installed anywhere in a multi-chassis CompactLogix layout?

A: No. The 1769-IQ32 carries a specific Power Supply Distance Rating of 8. This means it can be placed no further than 8 slots away from any local 1769 system power supply module. Exceeding this distance creates excessive voltage drops across the passive internal backplane connectors, resulting in communication drops.

Q: What type of wiring connection block is utilized with this module?

A: Because of the tight spacing required for 32 distinct input pins plus power routing, the module utilizes a high-density, multi-pin front terminal door or can be mapped out cleanly using a factory pre-wired 1492 Interface Module (IFM) breakout cable assembly to simplify cabinet termination.

Field Installation Guidelines

• Bus Extender Interlock Attachment: Slide the module into position along the side grooves of the adjacent unit on the DIN rail. Push the front grey bus lever completely to the left to firmly engage the backplane data bus slide contacts into the adjoining module’s receptacle.
• Input Signal Cable Dressing: Tie and bundle all incoming field conductor wires neatly inside the panel wire duct. Ensure field sensor cables are separated from high-current AC motor supply lines to reduce inductive noise transmission across DC signal circuits.
• Status LED Matrix Verification: During commissioning, look at the front panel display array. The 32 status indicators (numbered 0 to 31) display the active logic states. If a field switch closes but the corresponding LED remains off, use a multimeter to check for a minimum threshold of 10 VDC across that specific input pin and its matching group common.
