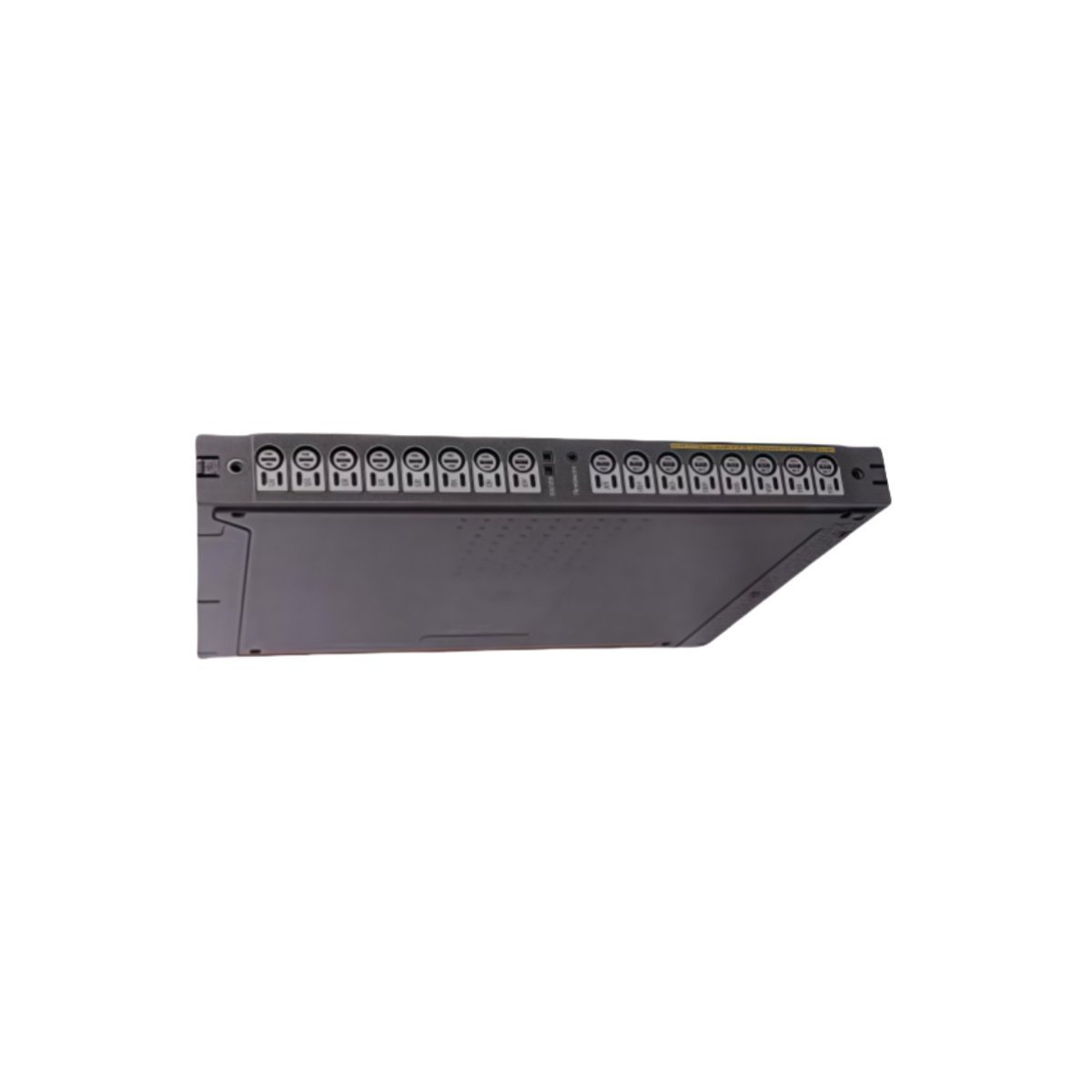

The ICS Triplex T8240C is a 40-channel, SIL 3-rated Digital Input Module for the Trusted TMR system. Featuring conformally coated circuitry and advanced line monitoring, this 24 VDC module delivers the high-density signal acquisition and fault tolerance required for safety-instrumented systems.
The ICS Triplex T8240C functions as a high-integrity, 40-channel Digital Input Module designed for the Trusted Triple Modular Redundant (TMR) safety system. This module serves as the primary interface for capturing discrete field data from sensors, switches, and contacts in safety-critical environments. Because the T8240C utilizes a “C” variant specification, it features conformally coated electronics, which effectively protect the internal circuitry against corrosion, humidity, and atmospheric pollutants. By providing 40 independent channels within a single high-density module, the T8240C optimizes rack space while maintaining the highest levels of safety and fault tolerance.
The T8240C manages input signals through a sophisticated Triple Modular Redundant (TMR) architecture. Each of the 40 input signals is internally routed to three separate processing paths. To ensure maximum data integrity, the module performs hardware “voting” to determine the true state of each input. Consequently, if a single internal component fails, the module continues to operate correctly using the remaining two paths. Furthermore, the T8240C incorporates comprehensive onboard diagnostics that continuously monitor for internal hardware discrepancies and external field wiring faults.
In addition to its voting logic, the module features advanced line monitoring capabilities. This allows the system to distinguish between a legitimate signal state and a field wiring issue, such as an open circuit or a short to ground. Moreover, since the T8240C supports high-speed data acquisition, it captures rapid process changes with millisecond precision. To further enhance system availability, the module supports “Hot-Replacement,” enabling technicians to swap out a unit without interrupting the safety process. Ultimately, the T8240C provides the robust, fail-safe monitoring required for the most demanding applications in the energy and chemical sectors.
