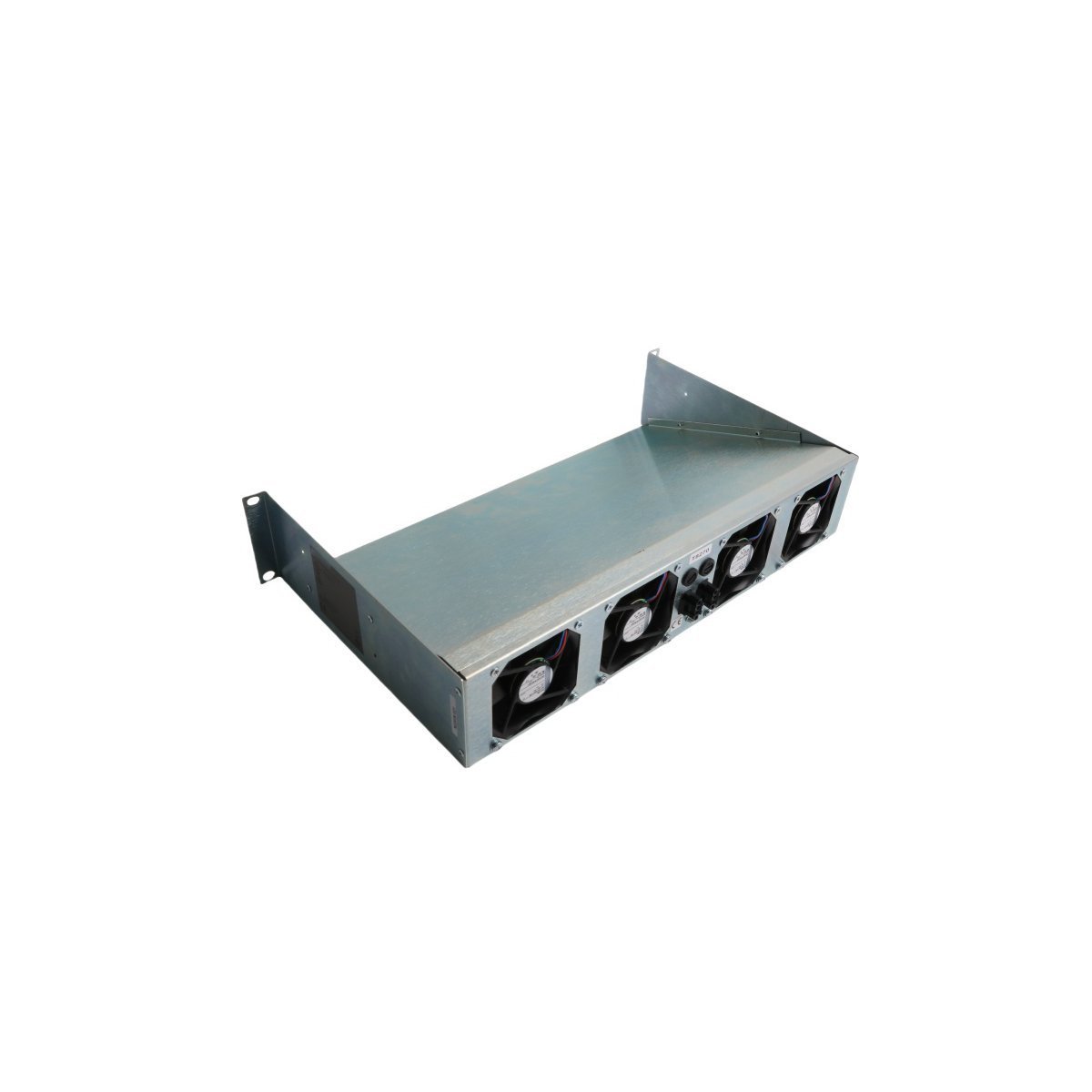

ICS Triplex T8270 Trusted 24V DC Rack Grill Fan

The T8270 serves as the primary thermal management component for Trusted chassis environments. This specialized fan tray assembly maintains stable operating temperatures for sensitive internal electronics. By generating consistent airflow, the unit prevents heat accumulation in high-density processor and I/O racks. This cooling action remains vital for preserving the operational life of the entire control system.

Core Technical Specifications

Performance and Reliability Features

The T8270 includes several high-velocity fans arranged to provide redundant cooling paths. This module operates on a 24V DC power supply common to industrial control cabinets. Its design focuses on quiet operation without sacrificing volumetric air displacement. Internal sensors track the rotational speed of each fan to detect mechanical degradation early. Consequently, maintenance teams receive alerts before a complete thermal failure occurs.

Mechanical Design and Installation

The hardware features a slim profile to fit standard Trusted rack grill positions.  Its ruggedized frame protects the fan blades from debris and accidental contact during maintenance. The hot-swappable interface allows users to replace the fan tray while the controller stays online. This capability eliminates the need for system shutdowns during routine cooling hardware service. Furthermore, the secure mounting mechanism reduces vibration to prevent mechanical stress on the backplane.

Primary Industrial Applications

This cooling solution is essential for mission-critical sectors like offshore oil platforms. It performs reliably in the high-ambient temperatures of power generation facilities. Chemical processing plants utilize the T8270 to safeguard safety instrumented systems from overheating. By maintaining a cool environment, the module ensures consistent logic execution in safety-critical TMR architectures.

Functional Summary

• High-efficiency brushless motors provide long-term service with minimal maintenance.
• Integrated health monitoring provides real-time data on cooling performance.
• Standard 24V DC integration simplifies power distribution within the control cabinet.
• The front-facing grill facilitates rapid inspection of airflow paths.
• Protective circuitry prevents electrical faults from affecting the main system bus.
