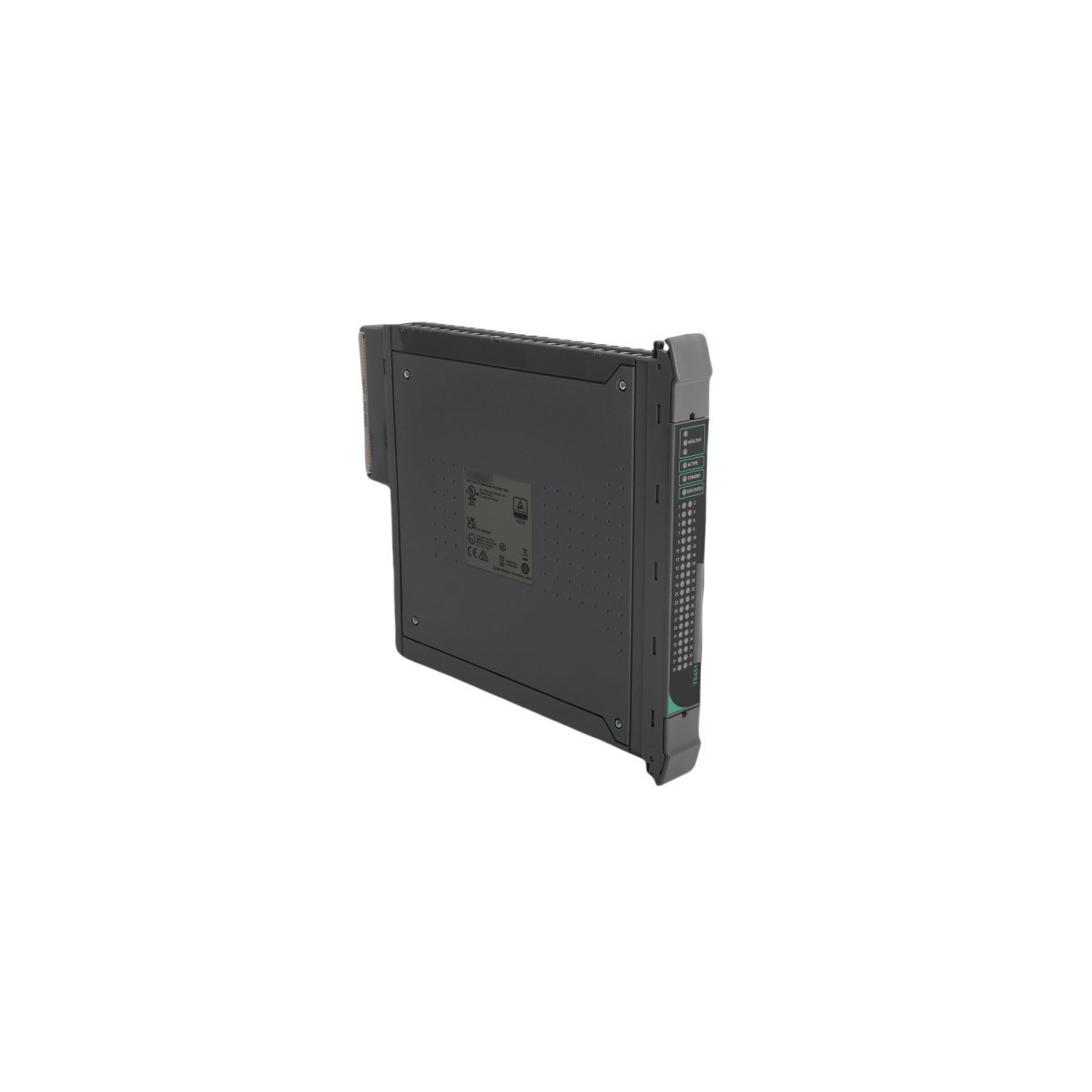

ICS Triplex T8314 Trusted TMR Expander Interface Module

Rockwell Automation engineered the ICS Triplex T8314 as a high-performance Expander Interface Module specifically for the Trusted Triple Modular Redundant (TMR) system. This module functions as the vital communication bridge between the main controller chassis and remote expander chassis. By facilitating high-speed data synchronization across multiple racks, the T8314 allows the Trusted system to scale significantly while maintaining the strict timing and safety integrity required for SIL 3 applications.

Advanced Technical Capabilities

• Triplexed Bus Extension: The module extends the internal TMR inter-module bus across chassis boundaries, maintaining three independent paths for fault-tolerant operation.
• High-Bandwidth Data Link: Internal circuitry manages the high-speed serialized data stream required to keep remote I/O modules synchronized with the central processors.
• Point-to-Point Connectivity: The hardware utilizes dedicated fiber optic or high-quality copper links to ensure secure, low-latency communication between system segments.
• Integrated Signal Conditioning: The board features advanced filtering to eliminate signal jitter and electromagnetic interference (EMI) across long-distance chassis connections.
• Automatic Module Identification: The Trusted system software recognizes the T8314 instantly upon insertion, streamlining the configuration of distributed I/O architectures.

Operational Performance and Integration

The T8314 plays a decisive role in large-scale safety instrumented systems (SIS). In addition to expanding the physical capacity of the controller, the module improves system flexibility by allowing for decentralized hardware placement. Because Rockwell designed this unit to support the Trusted TMR architecture, it ensures that a fault in one expander link does not compromise the safety function of the remaining system. Consequently, plant operators can manage thousands of I/O points across a distributed area from a single logic solver. Furthermore, the module supports “star” or “daisy-chain” topologies for expander chassis. As a result, this versatility allows engineers to optimize cabinet layouts and reduce field cabling costs. Moreover, the hardware’s robust diagnostic engine constantly monitors the link quality and reports any transmission errors to the system executive in real-time.

Technical Specifications Summary

• Manufacturer: ICS Triplex (Rockwell Automation)
• Product Series: Trusted TMR System
• Model Identifier: T8314
• Module Type: Expander Interface (Adapter)
• Safety Integrity Level: SIL 3 Capable
• Communication Media: Supports high-speed serialized TMR bus extension
• Mounting: Occupies a dedicated interface slot in the Trusted chassis
• Environmental Rating: Engineered for 24/7 continuous duty in harsh industrial settings

Industrial Utility and Resilience

Global industries in the petrochemical and offshore sectors rely on the T8314 to manage their most complex Emergency Shutdown (ESD) and Fire and Gas (F&G) networks. Specifically, its ability to maintain TMR integrity across multiple racks makes it indispensable for facilities with high I/O density. Ultimately, the T8314 provides the scalable foundation and uncompromising reliability that safety professionals require to protect large-scale industrial infrastructure.
