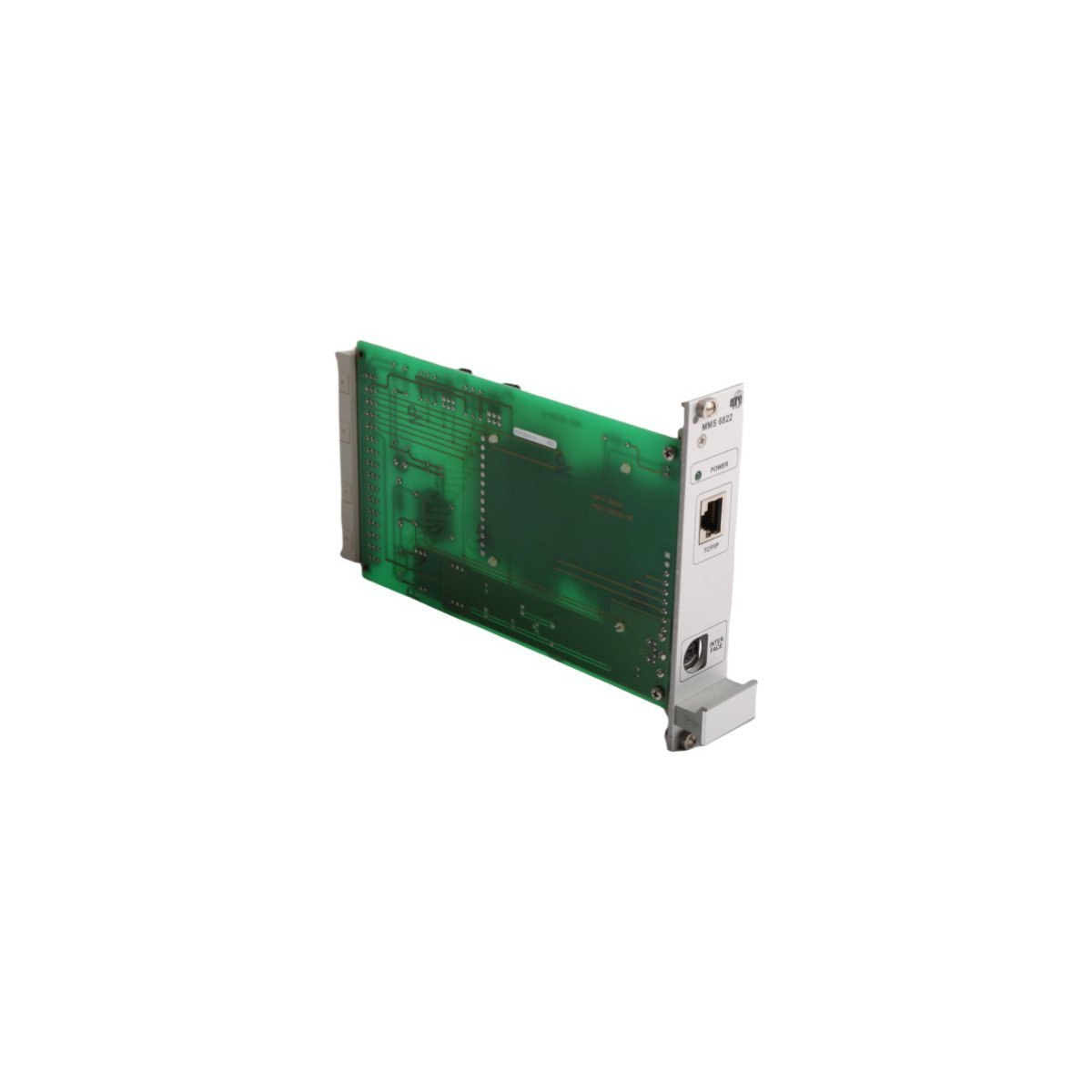

Emerson EPRO MMS6822 Machine Monitoring System Interface Card

Technical Overview

The Emerson MMS6822 serves as a critical communication interface within the EPRO Machine Monitoring System (MMS6000) series. This module facilitates the seamless integration of machinery protection data into higher-level Distributed Control Systems (DCS) and plant asset management networks. By acting as a high-speed data bridge, the MMS6822 ensures that real-time vibration, temperature, and thrust position metrics are accessible for comprehensive plant diagnostics.

Key Functional Features

• Advanced Communication Protocol Support The card utilizes standard Ethernet-based routing protocols to establish reliable links between local monitoring racks and remote supervisory stations. This ensures that time-critical machinery health data reaches the control room without latency.
• Durable Industrial Architecture Constructed with an MD Plus controller core, the module maintains a lightweight yet rugged profile. This design specifically addresses the high-vibration and electromagnetic interference common in power generation and petrochemical processing plants.
• Predictive Asset Management Through the implementation of sophisticated data processing algorithms, the MMS6822 enables early detection of mechanical anomalies. Consequently, operators can transition from reactive repairs to a structured predictive maintenance strategy, which significantly extends the lifecycle of rotating equipment.
• Modular Integration and Scalability The compact 3x19x12.8cm form factor allows for high-density installation within standard 19-inch subracks. Since the card supports hot-swapping and modular expansion, facilities can scale their monitoring capabilities without requiring extensive system shutdowns.

Specifications and Technical Data

• Manufacturer: Emerson (EPRO Series)
• Model Identifier: MMS6822
• Component Type: Interface Card Monitoring Module
• System Compatibility: MMS6000 / DCS / PLC
• Network Interface: Ethernet Router / Communication Service
• Mechanical Weight: 0.2 kg
• Dimensions: 30mm x 190mm x 128mm

Application Environment

The MMS6822 is primarily deployed in heavy-duty industrial sectors where the monitoring of critical rotating machinery—such as turbines, compressors, and large pumps—is essential. While Emerson officially discontinued the series on December 31, 2018, this module remains a vital component for maintaining and repairing existing legacy systems to ensure continued operational safety.
