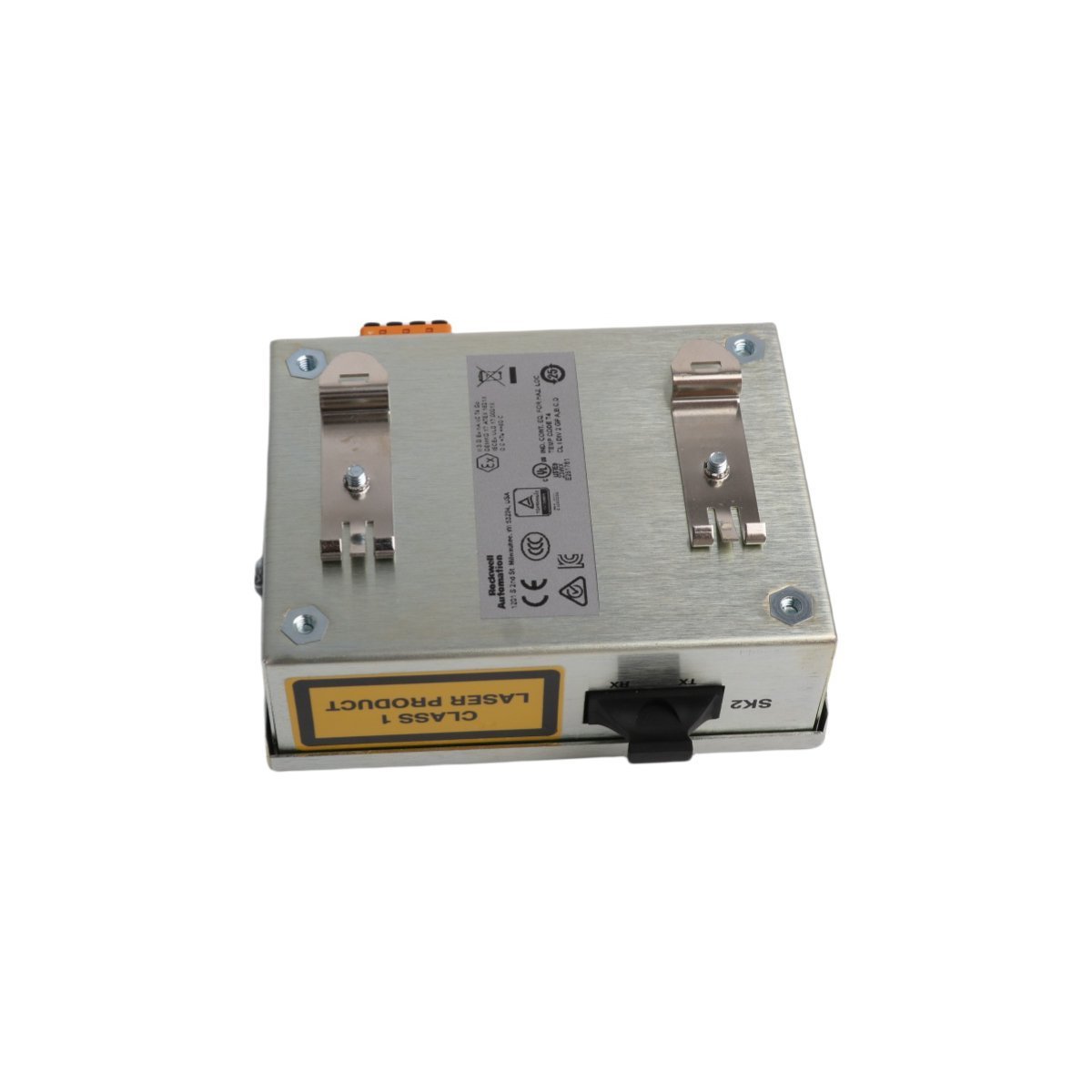

ICS Triplex T8314C Trusted Conformal Coated Fiber Optic Transceiver Unit

Product Overview

The ICS Triplex T8314C serves as a high-reliability fiber optic communication bridge within the Trusted Triple Modular Redundant (TMR) safety system. This DIN rail-mounted unit actively converts electrical Pseudo-Emitter Coupled Logic (PECL) signals into optical data streams. By facilitating high-speed communication between the T8100 Trusted Controller Chassis and remote expansion racks, the T8314C ensures that safety-critical data travels securely over long distances. The “CCoat” designation indicates that ICS Triplex applies a conformal coating to the internal electronics, which provides essential protection against moisture, dust, and atmospheric contaminants in harsh industrial zones.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Identification: T8314C
• Core Function: Fiber Optic Transmitter/Receiver (Tx/Rx)
• System Architecture: Trusted TMR / Regent Control Systems
• Fiber Compatibility: Single-mode fiber optic cabling
• Signal Conversion: PECL to Optical / Optical to PECL
• Power Input: Redundant Dual 24 Vdc supply
• Mounting Configuration: Standard DIN Rail
• Weight: 1.2 kg
• Dimensions: 3.0 cm x 30.2 cm x 26.5 cm
• Compliance: IEC 61508 SIL 3 (when part of a Trusted system)

Operational Functionality and Applications

The T8314C plays a vital role in distributed safety architectures by extending the system bus across geographically separated areas. Specifically, the module receives data from the Trusted Expander Interface and translates it for fiber optic transport, which eliminates the risk of electromagnetic interference (EMI) and ground loops. Because the unit supports single-mode fiber, it enables robust communication links spanning several kilometers. Engineers typically implement the T8314C in the following critical environments:

• Emergency Shutdown Systems (ESD): Maintaining communication between centralized logic solvers and remote I/O islands.
• Fire and Gas (F&G) Detection: Monitoring widely dispersed sensors across large industrial complexes or offshore platforms.
• Burner Management Systems (BMS): Ensuring reliable signal transmission in high-interference boiler and furnace areas.

Key Technical Characteristics

• Redundant Power Integration: The unit accepts dual 24V DC inputs, which prevents communication failure even if one power source drops out.
• Fault-Tolerant Link Configuration: A standard remote link utilizes a six-unit array—three at the local end and three at the remote end—to maintain the Triple Modular Redundant integrity of the Trusted system.
• Hot-Swappable Design: Maintenance teams can replace a T8314C unit during active operations without interrupting the overall system bus or triggering a safety trip.
• Conformal Coating Protection: The CCoat finish shields the sensitive PCB from corrosive gases and humidity, which significantly extends the hardware’s lifespan in chemical plants and refineries.
• Integrated Signal Conditioning: The internal circuitry includes specialized isolators and termination filters that actively stabilize signal quality before transmission.
• Zero-Configuration Setup: The hardware supports true plug-and-play functionality, meaning the unit requires no manual software addressing or dip-switch configuration during installation.
