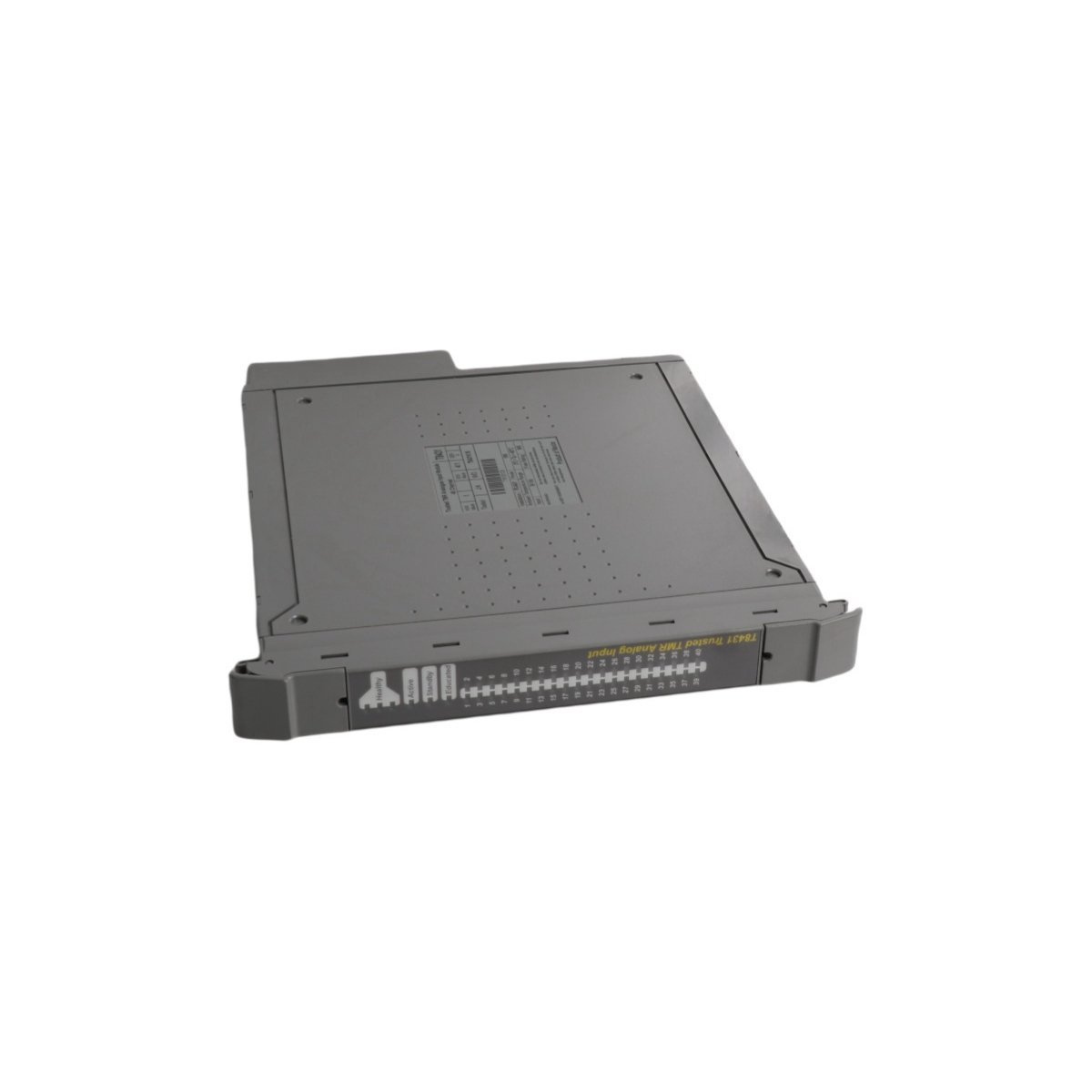

ICS Triplex T8431 Trusted 40-Channel TMR Analog Input Module

Product Overview

The ICS Triplex T8431 stands as a cornerstone of the Trusted Triple Modular Redundant (TMR) system, providing exceptionally high-integrity analog signal processing. This module interface is engineered specifically for safety-critical applications where process uptime and data accuracy are paramount. By utilizing a TMR architecture, the T8431 performs internal hardware voting to identify and mitigate potential faults, ensuring that a single point of failure does not compromise the entire control loop.

Furthermore, this 40-channel module manages high-density sensor arrays within a compact physical footprint. Consequently, it enables industrial operators to monitor a vast range of field parameters—such as pressure, flow, and level—with complete confidence in the signal’s validity. The T8431 integrates seamlessly into the broader Trusted environment, providing a robust bridge between field instrumentation and the safety logic processor.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Number: T8431
• Product Line: Trusted TMR System
• Module Type: Analog Input (AI)
• Channel Count: 40 Isolated Channels
• Input Range: Typically 4-20 mA or 0-10 VDC (Application dependent)
• Resolution: 12-bit to 16-bit (Varies by configuration)
• Weight: 1.18 kg
• Dimensions: 3.0 x 30.3 x 26.4 cm
• System Architecture: Triple Modular Redundancy (TMR)
• Environmental Rating: Industrial-grade ruggedized enclosure

Core Features and Engineering Excellence

• Fault-Tolerant Architecture: The T8431 incorporates three independent input slices. These slices continuously compare data to perform a “two-out-of-three” vote, which effectively eliminates errors caused by transient noise or hardware malfunctions.
• High-Density Monitoring: By providing 40 individual channels, the module reduces the total number of I/O slots required in the chassis. This efficiency lowers overall system costs and simplifies the wiring architecture for large-scale industrial plants.
• Advanced Diagnostics: Because the module constantly monitors its own internal health and the integrity of the field wiring, it can detect open circuits or short circuits instantly. This proactive diagnostic capability allows maintenance teams to address issues before they lead to an unplanned shutdown.
• Hot-Swappable Capability: Operators can replace the T8431 module while the system is powered and under control. This ensures that maintenance activities do not interfere with active industrial processes, thereby maintaining 24/7 operational availability.

Industrial Applications

The ICS Triplex T8431 is frequently deployed in high-stakes environments where safety and reliability are non-negotiable. For instance, in offshore oil platforms, it monitors critical pressure and gas levels to trigger Emergency Shutdown (ESD) sequences. Similarly, in nuclear and chemical power generation, the module processes thermal data to maintain reactor stability. Because it withstands harsh electromagnetic interference and mechanical vibration, the T8431 remains a preferred choice for engineers designing Fire and Gas (F&G) systems and Burner Management Systems (BMS).
