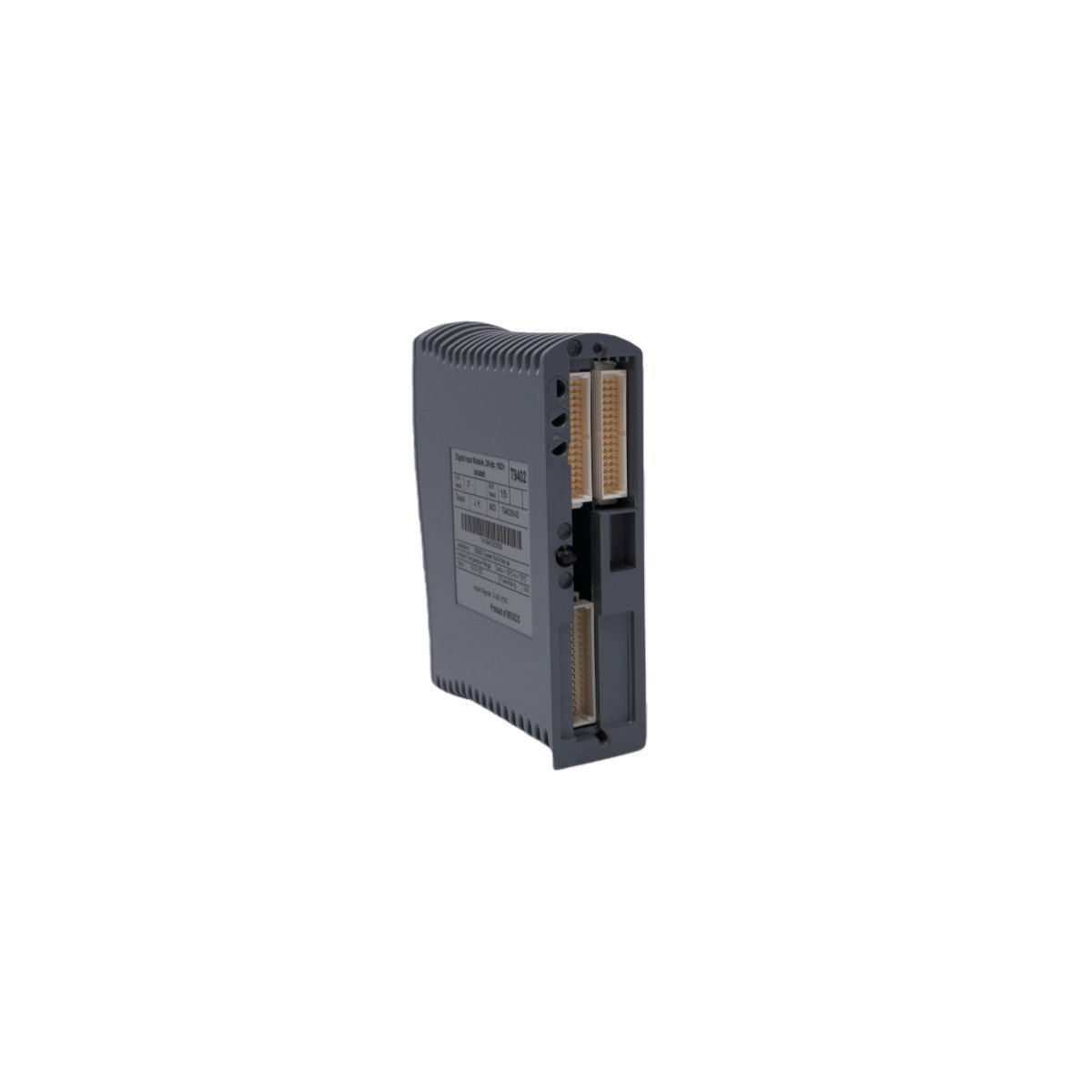

The ICS Triplex T9401 is a SIL 3 certified, 16-channel Digital Input module for Trusted TMR systems. Featuring triple modular redundancy, 1ms response times, and 24V DC operation, it provides unmatched signal integrity and fault tolerance for emergency shutdown and process safety applications.
The ICS Triplex T9401 serves as a high-integrity Digital Input (DI) interface for the Trusted Triple Modular Redundant (TMR) controller platform. This module precisely monitors discrete field signals from critical components such as emergency stop buttons, limit switches, and flame detectors. Because it utilizes a sophisticated TMR architecture, the T9401 processes all input data through three independent signal paths. An internal hardware voting mechanism compares these paths to identify and rectify discrepancies, ensuring that the control system receives a single, validated digital state. This multi-layered approach to signal processing eliminates single points of failure, making the T9401 essential for high-hazard industrial sectors, including subsea production and chemical processing.
Plant safety depends on the integrity of the data provided to the processor, and the T9401 actively enforces this through exhaustive diagnostic routines. The module continuously performs self-tests on its internal circuitry and monitors the health of the field wiring. It can detect and report specific field faults, such as open circuits or short circuits, long before they escalate into system-wide failures. Furthermore, the T9401 incorporates robust electrical isolation for every channel, which prevents high-voltage transients in the field from damaging the sensitive central controller logic. Consequently, maintenance teams benefit from early warnings and clear fault localization, which significantly accelerates troubleshooting and enhances overall plant availability.
Rockwell Automation engineered the ICS Triplex T9401 to thrive in aggressive industrial environments characterized by extreme temperatures and electromagnetic interference. The module features a ruggedized mechanical design that supports hot-swapping, allowing technicians to replace units while the system remains live and operational. By integrating into the AADvance and Trusted system backplanes, the T9401 facilitates a scalable control architecture where users can expand I/O density as plant requirements evolve. Since it meets the stringent requirements for SIL 3 certification, the T9401 provides the necessary reliability for safety-instrumented functions (SIF), ensuring a fail-safe response even under the most demanding conditions.
