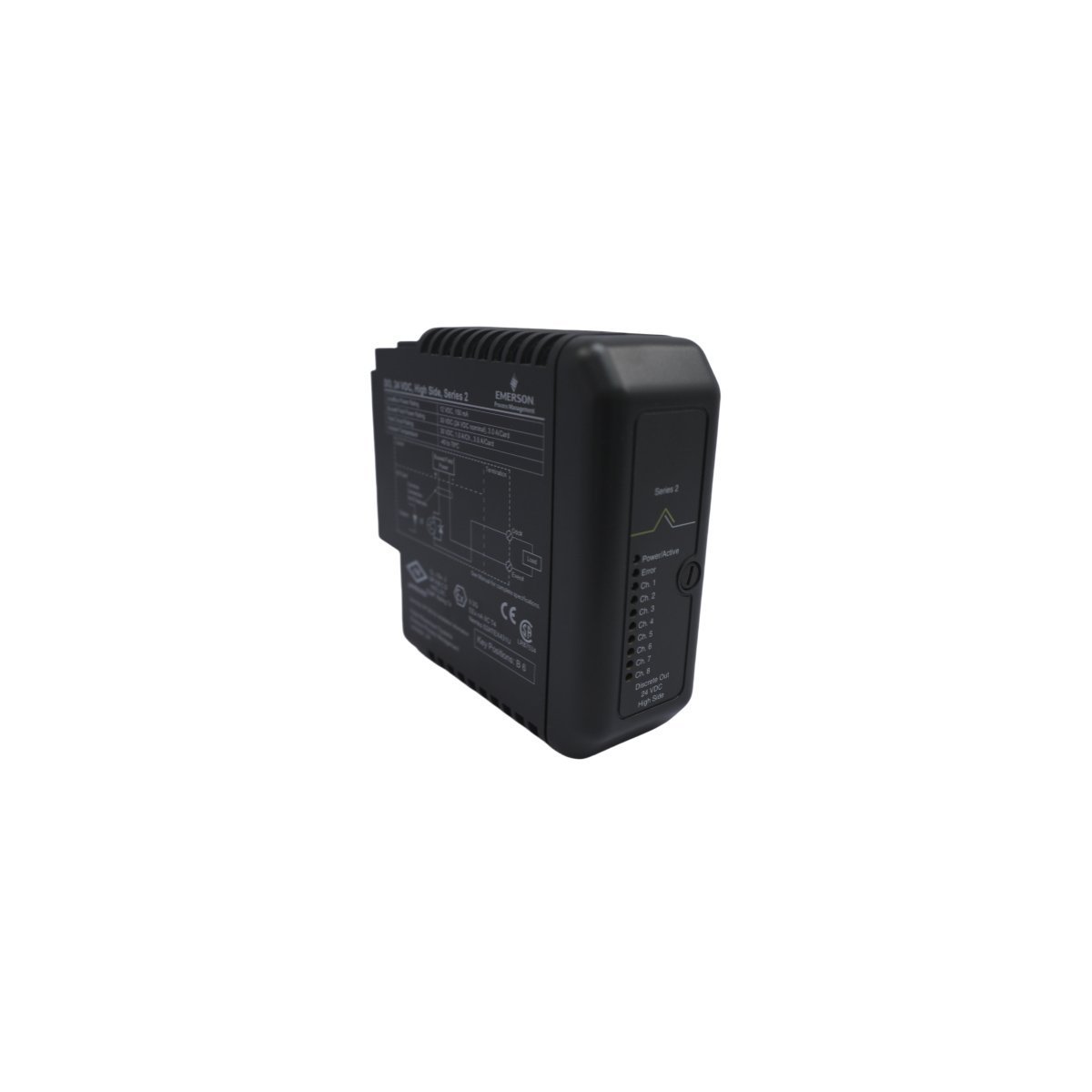

EMERSON KJ3202X1-BA1 DeltaV M-series Discrete Output Module

The EMERSON KJ3202X1-BA1 (associated engineering part numbers 12P2536X042 and VE4032S1T2B1) is a high-density, Discrete Output Module designed for the DeltaV™ M-series Traditional I/O Subsystem. This module serves as a critical control interface, allowing an Emerson Distributed Control System (DCS) to command digital field equipment—such as solenoid valves, pilot lights, interposing relays, and motor starters—by switching high-side DC voltage lines on and off based on logic instructions.

Hardware Specifications

High-Density Channel Matrix & Advanced Diagnostics

The KJ3202X1-BA1 card provides 32 independent discrete output channels grouped tightly to maximize cabinet space within marshalling panels. Operating as a High-Side (source) switching card, the module supplies the positive potential from the external field power supply directly to the field load when commanded active.

To ensure the high reliability demanded by oil & gas refining, chemical processing, and power generation, the module incorporates advanced onboard diagnostics. It continuously verifies the health of its internal switching solid-state electronics and cross-checks channel demands against backplane statuses. The module also features built-in electronic short-circuit protection, instantly isolating an overloaded channel to protect adjacent circuits and the main controller backplane from field faults.

Frequently Asked Questions

Q: Can the KJ3202X1-BA1 module be deployed in redundant architectures?

A: Yes. When paired with a redundant terminal block (such as variations within the VE4032 series framework), two identical output modules can be operated in parallel. If the primary module experiences an internal component failure, the secondary card automatically maintains loop currents to prevent process disruptions.

Q: What happens to the outputs if communication with the DCS controller is lost?

A: Through the DeltaV software configuration, users can pre-define the fail-safe behavior of the outputs. Channels can be programmatically set to “Hold Last Value” or forcefully trip to an “Off” (de-energized) state to maintain process safety.

Field Installation Guidelines

• Terminal Block Keying: Before inserting the module, verify that the mechanical keys on the M-series I/O terminal block carrier match the discrete output profile of the KJ3202X1-BA1 card to ensure accurate backplane pin alignment.
• Securing the Retaining Screws: Once the module is pressed firmly onto its carrier, hand-tighten the integrated top and bottom captive screws to ensure the module resists thermal expansion cycles and heavy cabinet vibrations.
• External Power Routing: Ensure that the external 24 VDC field power supply feeding the terminal block is properly fused. Sizing fuses appropriately safeguards the internal circuitry of the output channels against sustained field wire shorts.
