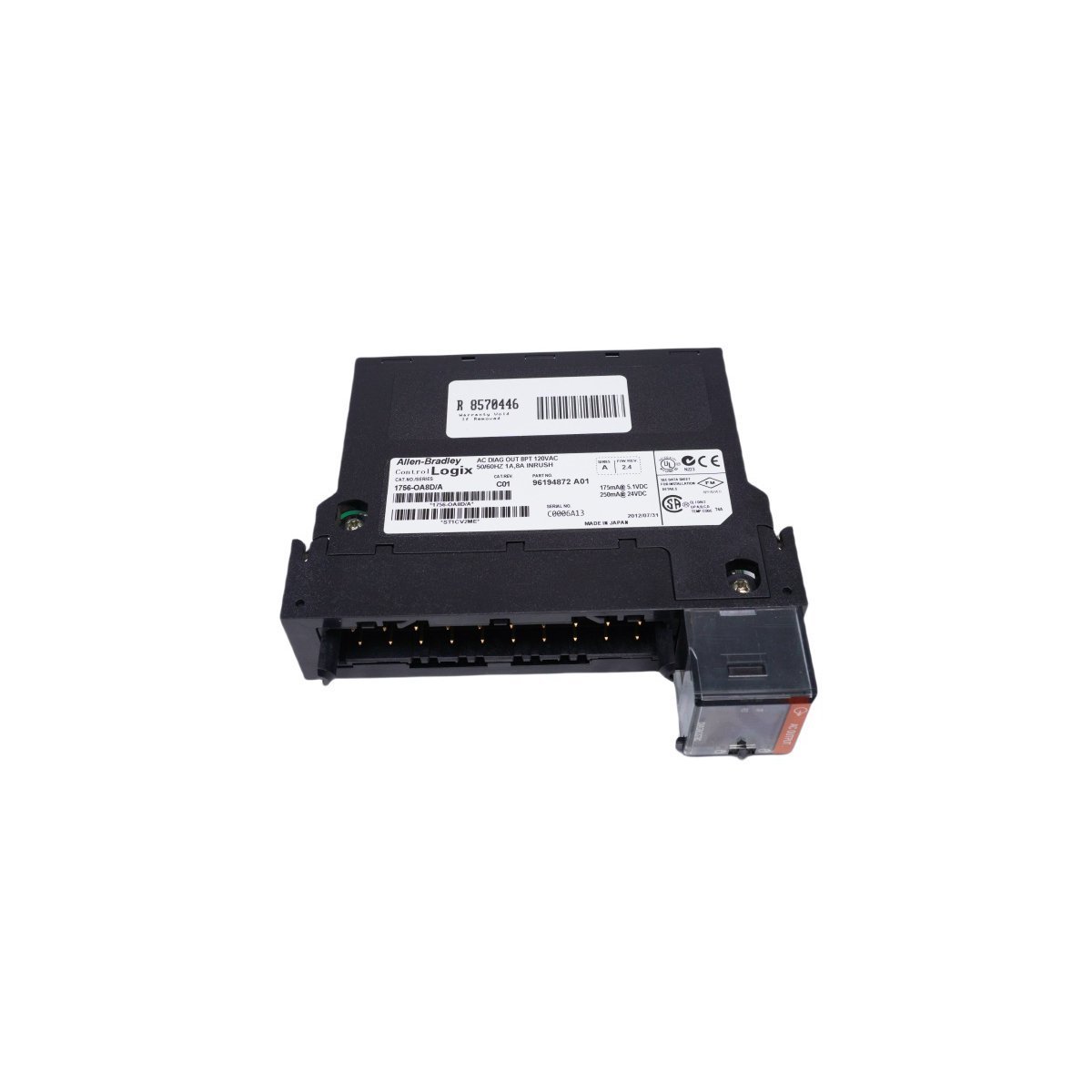

Allen-Bradley 1756-OA8D Diagnostic Digital AC Output Module
The Allen-Bradley 1756-OA8D is an 8-point diagnostic AC output module for ControlLogix systems. It features 74-132V AC operation, 1A current per point, and electronic fusing. Integrated diagnostics identify no-load and short-circuit faults to maximize system uptime.
The Allen-Bradley 1756-OA8D functions as a specialized diagnostic output solution for ControlLogix automation platforms. This module provides eight points of electronically fused AC power switching. It excels in applications requiring high availability and precise fault detection. Furthermore, the integrated diagnostics allow the controller to monitor the health of each connected field device.
Advanced Diagnostic Functionality
Engineers utilize this module to improve system uptime through proactive monitoring. The hardware detects “No Load” conditions and output short circuits in real time. Additionally, it identifies field power loss and blown fuses through the Logix Designer software interface. These features reduce troubleshooting time significantly compared to standard non-diagnostic output modules.
Key Technical Characteristics
The 1756-OA8D occupies one slot in any standard 1756 I/O chassis. It supports a broad voltage range for various industrial power grids.
- Operating Voltage: 74–132V AC (47–63Hz)
- Output Current: 1A maximum per point at 30°C
- Surge Current: 8A peak for 43 milliseconds
- Backplane Power: 175mA at 5.1V DC and 250mA at 24V DC
- Power Dissipation: Approximately 5.3W total
- Isolation: 125V continuous between groups and backplane
- Response Time: 9.3ms to 11ms depending on line frequency
Installation and Environmental Specs
The module requires a Removable Terminal Block (RTB) such as the 1756-TBNH or 1756-TBSH. Mechanics should utilize the user-defined mechanical keying to prevent incorrect module insertion. The unit operates efficiently between 0°C and 60°C in non-condensing environments. Because it features electronic fusing, maintenance personnel can reset circuits through software without replacing physical hardware components.
Applications and Compatibility
This module primarily drives inductive loads like motor starters and solenoid valves. It also controls resistive loads including heaters and signaling lamps. The diagnostic feedback proves essential for critical infrastructure and high-cost manufacturing lines. Therefore, it remains a preferred choice for complex ControlLogix architectures where maintenance visibility is a top priority.
