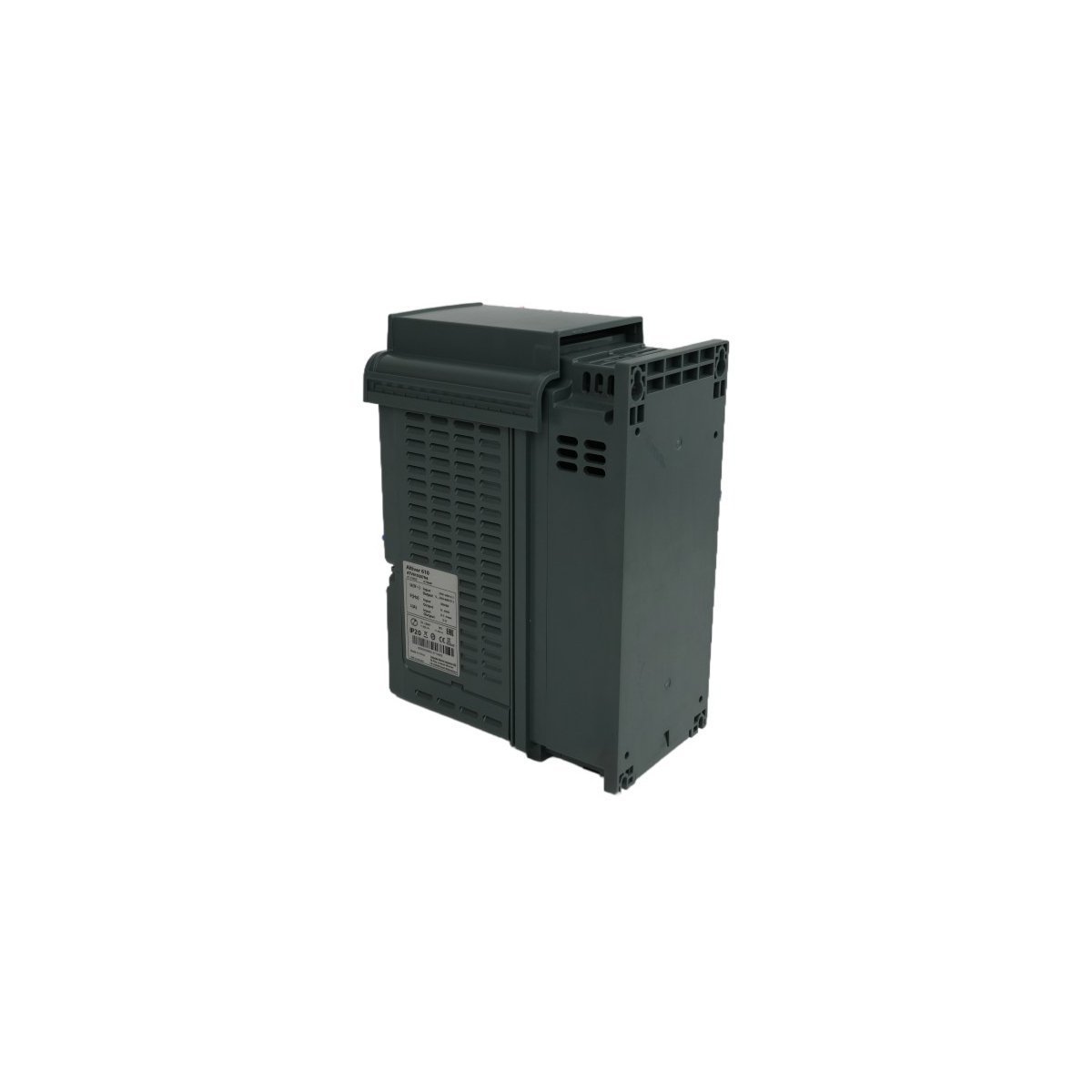

The Schneider Electric ATV610D90N4 is a 90 kW (125 hp) Variable Speed Drive designed for three-phase asynchronous motors. This Altivar 610 inverter provides robust 380-460V motor control, integrated EMC filtering, and Modbus connectivity, making it the ideal choice for energy-efficient pump and fan management.
The Schneider Electric ATV610D90N4 operates as a high-performance Variable Speed Drive (VSD) within the Easy Altivar 610 series, specifically optimized for three-phase asynchronous motors. This frequency inverter manages power ratings up to 90 kW (125 hp) and excels in demanding industrial environments by providing precise motor control and energy optimization. By implementing advanced thermal management and robust electronic protection, the ATV610D90N4 ensures continuous operation for pumps and fans, significantly reducing mechanical stress and electrical consumption.
The ATV610D90N4 delivers superior control through its optimized pulse width modulation (PWM) algorithms. It supports various control profiles, including standard V/f, five-point scalar control, and sensorless flux vector control, allowing it to adapt to diverse load requirements. To improve system longevity, the drive incorporates integrated EMC filters and DC chokes, which mitigate harmonic distortion and protect the power grid. Furthermore, the built-in energy-saving functions allow the drive to calculate and display real-time energy savings, empowering operators to fine-tune processes for maximum cost efficiency.
Manufacturer: Schneider Electric
Model Identifier: ATV610D90N4
Product Range: Easy Altivar 610
Input Voltage: 380 V to 460 V AC (Three-Phase)
Motor Power (Normal Duty): 90 kW / 125 hp
Motor Power (Heavy Duty): 75 kW / 100 hp
Continuous Output Current: 173 A at 4 kHz
Maximum Output Frequency: 500 Hz
Communication Protocols: Integrated Modbus RTU
Enclosure Protection: IP20 (Optionally upgradable to IP54)
Analogue/Digital I/O: 3 Analogue Inputs, 2 Analogue Outputs, 6 Digital Inputs, 3 Relay Outputs
Cooling System: Forced convection with integrated fan management
Industrial engineers prioritize the ATV610D90N4 for infrastructure projects due to its reliability and ease of integration. Consequently, the drive is a staple in the following applications:
Water and Wastewater Treatment: Controls high-capacity centrifugal pumps to maintain constant pressure while preventing water hammer effects.
HVAC Systems: Regulates large supply and extract fans in commercial buildings to optimize air quality and reduce power waste.
Process Cooling: Manages cooling tower fans and circulation pumps to ensure precise thermal regulation for industrial machinery.
General Industry: Operates compressors, mixers, and conveyors where soft-start capabilities and variable speed are essential for process safety.
