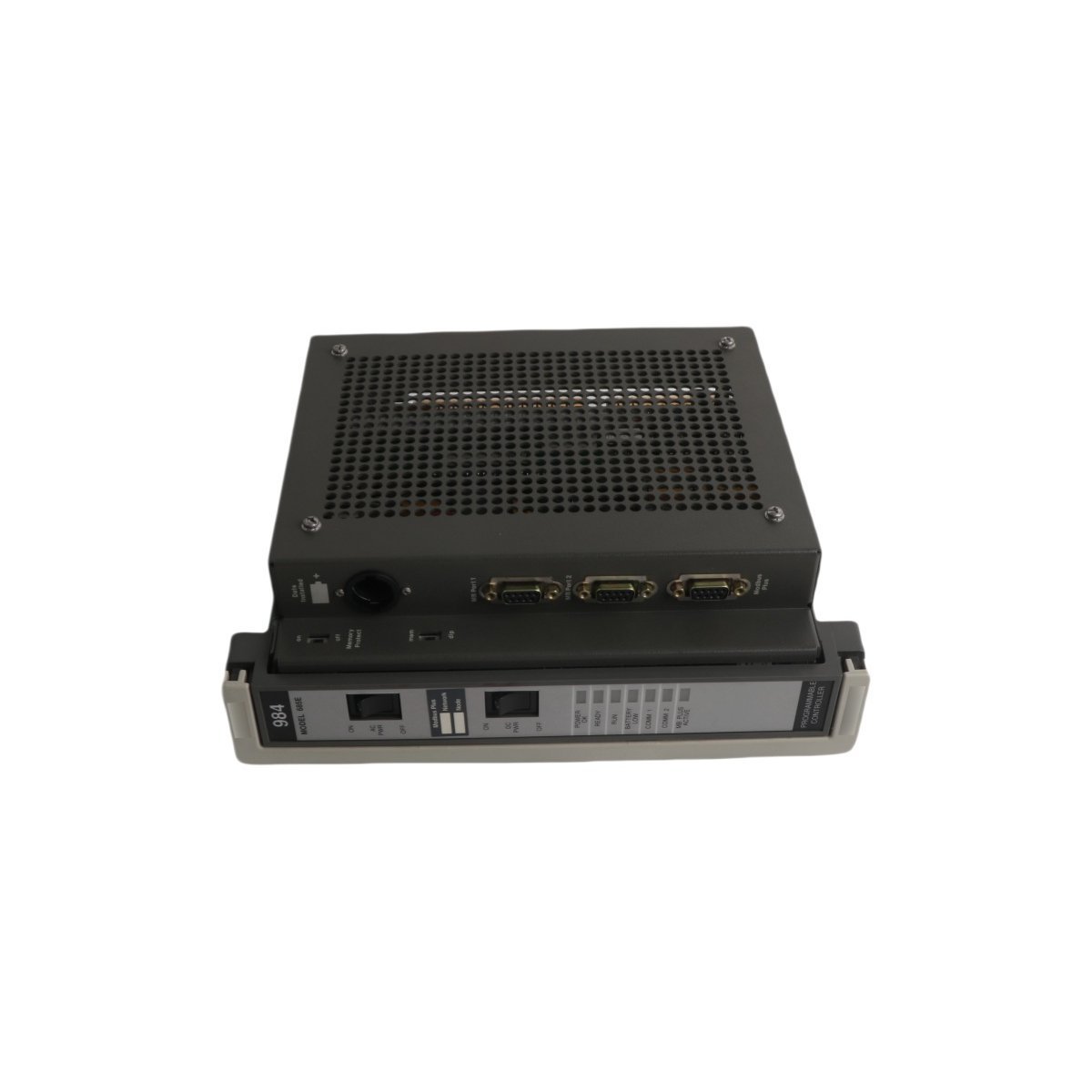

Schneider Electric Modicon PC-E984-685 Compact Model 685E CPU Module

Product Overview

The Modicon PC-E984-685 functions as a high-capacity central processing unit specifically engineered for the 984 Compact series automation platform. Primarily, this Model 685E processor serves as the intelligent core for medium-to-large scale industrial applications that require rapid logic execution and extensive memory resources. Consequently, it executes complex control algorithms and manages data across the system backplane with high efficiency. By utilizing a robust hardware architecture, the PC-E984-685 ensures that process control remains stable even in demanding factory floor environments.

Technical Performance and Functional Features

• High-Speed Logic Execution: In addition to its standard control functions, the module processes ladder logic at a rate of 0.45 ms per 1k instructions. As a result, the hardware provides the low-latency response times necessary for high-speed manufacturing and precision sequencing.
• Expanded Memory Capacity: Furthermore, the 685E model offers 16K of user memory for logic and 8K for registers. This expanded storage allows engineers to deploy more sophisticated programs and manage larger data sets without necessitating additional hardware.
• Integrated Communication Ports: To facilitate seamless networking, the CPU incorporates dual Modbus (RS-232) ports. Moreover, these interfaces allow for simultaneous connection to programming software, HMI panels, or peripheral Modbus-compatible devices.
• Non-Volatile Data Security: Regarding information integrity, the module utilizes a battery-backed RAM system to safeguard user programs and register data. Thus, it effectively prevents data loss during power interruptions and ensures a rapid system recovery.
• Robust Diagnostic Suite: To simplify troubleshooting, the front panel features dedicated LED indicators for “Ready,” “Run,” and “Modbus Port” activity. Consequently, maintenance personnel can verify the operational status of the processor at a glance.

Operational Compatibility and Integration

System engineers seamlessly install the PC-E984-685 into any standard Modicon 984 Compact subrack, utilizing the existing backplane for power and communication. In addition to its physical reliability, the module integrates fully with Modsoft, Proworx, or Concept programming software, which streamlines the process where users develop and monitor control code. Furthermore, because this processor maintains backward compatibility with legacy 984 instruction sets, it successfully satisfies the requirements for system upgrades without requiring a total rewrite of existing logic. Ultimately, these features combine to provide a durable and highly capable solution for modernizing industrial control systems.

Technical Specifications Summary

• Manufacturer: Schneider Electric / Modicon
• Model Designation: PC-E984-685 (Model 685E)
• Product Range: 984 Compact Series
• Logic Execution Speed: 0.45 ms/k (Ladder Logic)
• User Memory: 16K words (Logic), 8K words (Registers)
• Communication Ports: 2 x Modbus (RS-232)
• Battery Type: Lithium (for RAM backup)
• Operating Temperature: 0°C to +60°C
