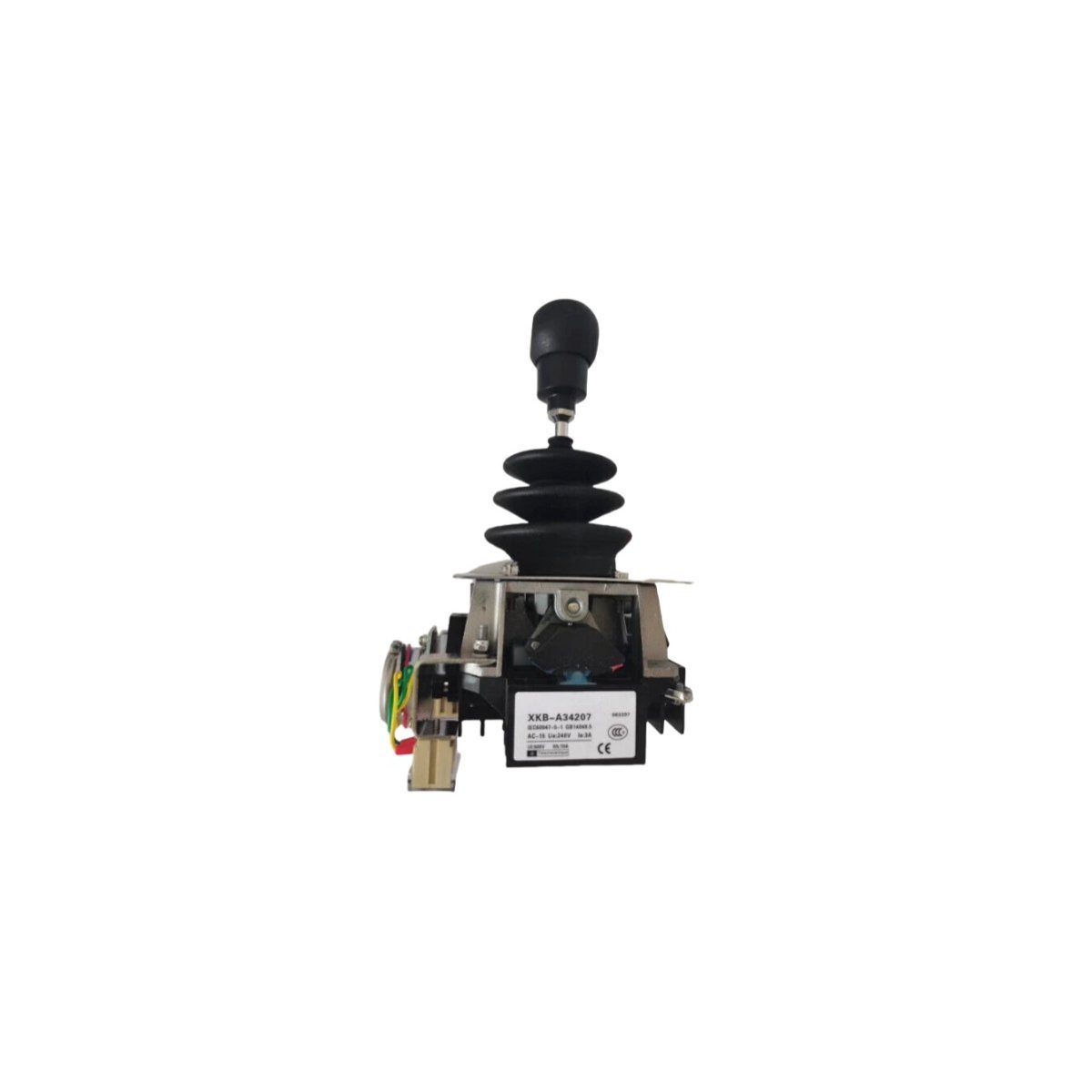

Schneider Electric XKB-A34207 Harmony XK Complete Joystick Controller

Technical Overview

The Schneider Electric XKB-A34207 operates as a heavy-duty, complete joystick controller within the renowned Harmony XK product family. This industrial interface functions as the primary manual control element for complex machinery, allowing operators to execute precise movement commands in multi-axis applications. Because Schneider Electric engineers the XKB-A34207 for high-cycle industrial environments, the unit features a rugged mechanical structure that translates physical lever displacement into accurate electrical switching signals. By providing tactile feedback and high operational sensitivity, this joystick ensures that operators maintain absolute control over heavy equipment and automation sequences.

Mechanical Integrity and Operational Logic

The XKB-A34207 manages multi-directional equipment movement by utilizing a high-precision cam-operated contact block system. To facilitate reliable performance in challenging conditions, the controller employs industrial-grade materials that resist the ingress of dust, moisture, and common industrial lubricants. Furthermore, the unit incorporates an ergonomic handle design that reduces operator fatigue during extended shifts. Moreover, since the XKB-A34207 features modular contact blocks, it allows for flexible wiring configurations to suit specific PLC input requirements or direct motor control circuits.

To further increase system safety, the joystick includes return-to-zero spring mechanisms that automatically halt movement if the operator releases the handle. In addition to its mechanical robustness, the assembly utilizes standardized mounting dimensions, which simplifies the integration process into crane operator chairs, control desks, and portable pendant stations. Consequently, the XKB-A34207 effectively mitigates the risk of accidental activation through its deliberate mechanical resistance and clear detent positions. As a result, this controller serves as a vital human-machine interface (HMI) for sectors requiring maximum durability, such as material handling, metallurgy, and heavy-duty hoisting.

Key Technical Characteristics

• Brand: Schneider Electric
• Model Number: XKB-A34207
• Product Series: Harmony XK / XKB
• Component Type: Complete Joystick Controller
• Movement Type: Multi-axis industrial control
• Contact Operation: Slow-break cam-operated contacts
• Mechanical Durability: High-cycle rating for industrial use
• Mounting Style: Panel or operator chair mounting
• Weight: 0.8 kg
• Dimensions: 5 x 27 x 27 cm
• Origin: France
• Environmental Rating: Suitable for high-vibration and dusty environments

Primary Applications

• Controlling overhead bridge cranes and gantry hoisting equipment.
• Managing hydraulic movements in heavy-duty construction machinery.
• Operating material handling systems in large-scale logistics centers.
• Providing manual overrides for automated production and assembly lines.
• Interfacing with mining and maritime deck machinery for precise positioning.
