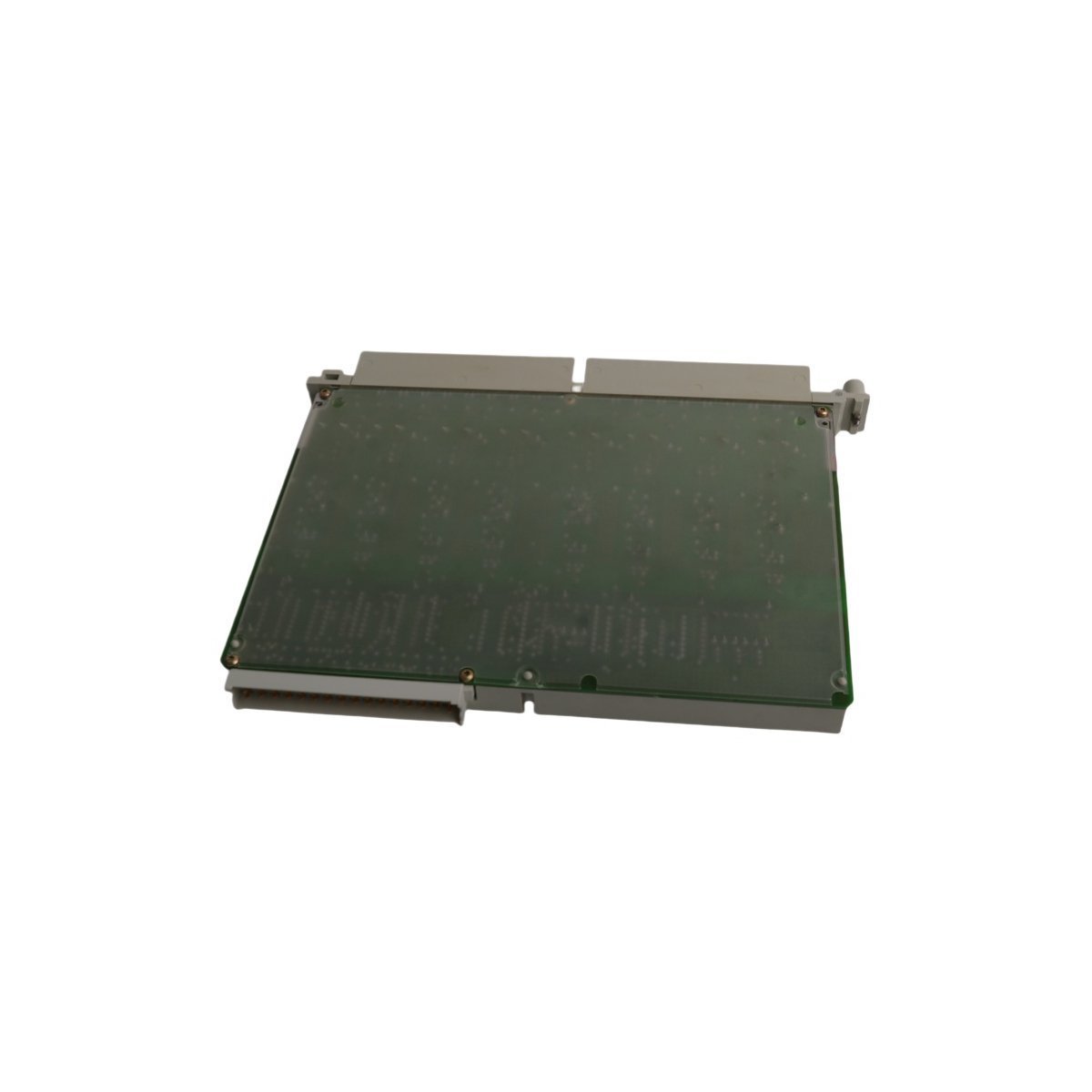

The Siemens 6ES5456-4UB12 is an 8-channel AC digital output module for SIMATIC S5 PLCs. It handles 115/240V AC at 2A per channel with floating isolation. This unit supports IMA adapters for easy migration to modern S7 systems without rewiring.
The Siemens 6ES5456-4UB12 is a specialized digital output module for the classic SIMATIC S5 automation series. This hardware manages high-voltage AC loads within industrial control environments. It features eight floating output channels to ensure electrical safety and signal separation. Engineers frequently utilize this module to drive heavy-duty relays and large AC contactors. Furthermore, its rugged construction supports the long-term operation of legacy manufacturing systems. This unit remains a critical component for maintaining existing factory infrastructure without complete system overhauls.
| Parameter | Specification |
| Model Number | 6ES5456-4UB12 |
| Brand | Siemens |
| Output Type | Digital AC (Floating) |
| Channel Count | 8 Outputs |
| Rated Voltage | 115V to 240V AC |
| Current Rating | 2A per channel |
| Weight | 0.65 kg |
| Dimensions | 2.1 x 23.9 x 25.5 cm |
This module offers a unique advantage for facilities planning future technology upgrades. It supports the Siemens Interface Module Adapter (IMA) system for easier transitions. Consequently, users can migrate to SIMATIC S7-300 or S7-400 platforms efficiently. The IMA system replaces the original front connector with a modern adapter. This process eliminates the need for expensive and time-consuming field rewiring. Therefore, plant managers can modernize their control architecture while protecting previous wiring investments. This capability significantly reduces the risks associated with automation system upgrades.
The 6ES5456-4UB12 delivers consistent switching performance in high-interference industrial settings. Each 2A channel provides sufficient power for demanding electrical loads. Moreover, the floating design prevents unwanted electrical noise from affecting the PLC backplane. This isolation increases overall system stability and prevents hardware damage during faults. The module also fits perfectly into standard SIMATIC S5 expansion racks. Because of its durable design, it withstands the thermal stress of continuous production cycles. This reliability makes it a trusted choice for legacy maintenance and strategic upgrades.
