Siemens 6ES7222-1HF22-0XA8 Digital Output Module

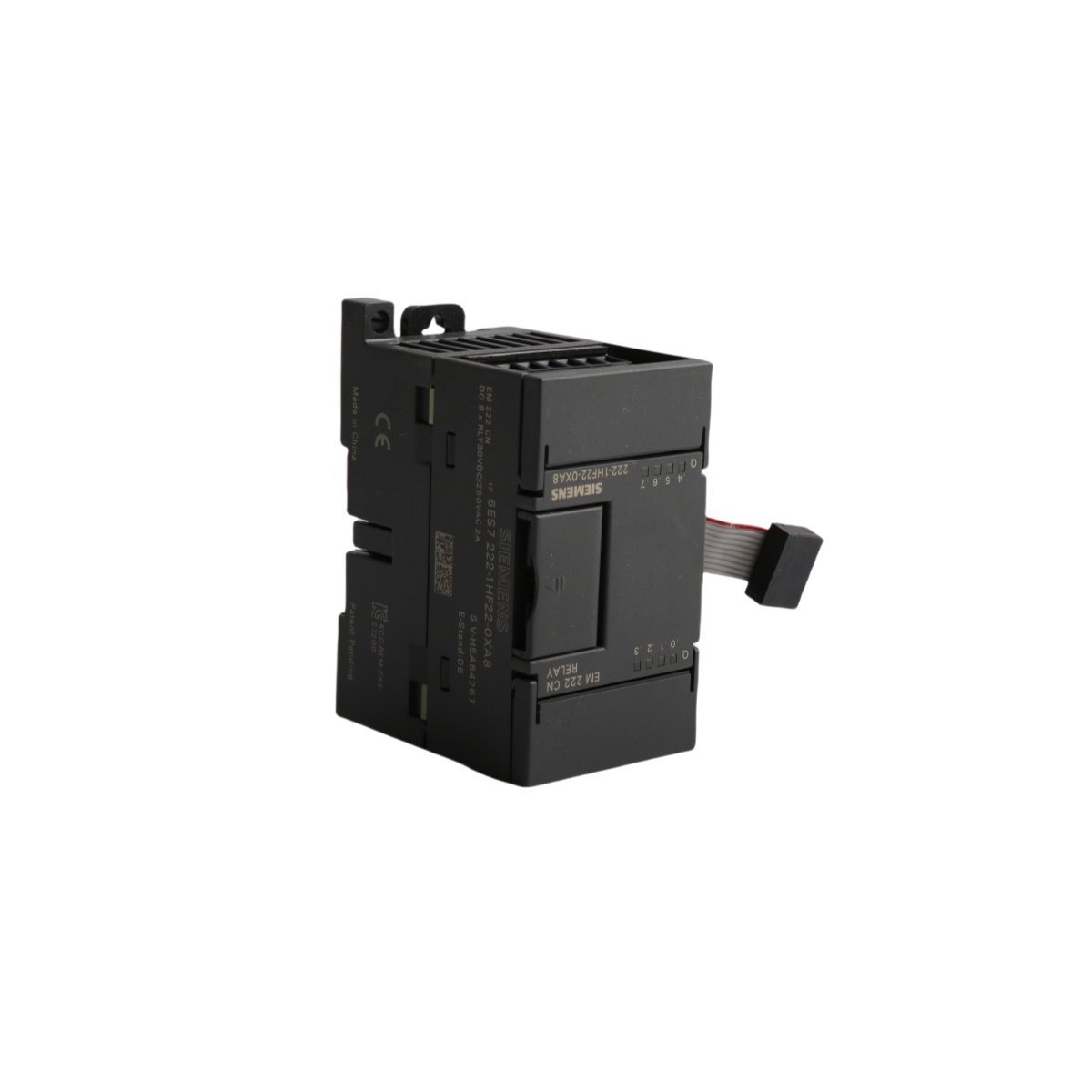

The Siemens 6ES7222-1HF22-0XA8 is a specialized EM 222 digital expansion module. This unit specifically supports the SIMATIC S7-200 CN controller series. It provides 8 discrete relay outputs for diverse switching tasks. Furthermore, the module interfaces seamlessly with S7-22X CPUs. Its compact design optimizes valuable rail space in control cabinets. Each output group handles either 24V DC or up to 250V AC loads. Consequently, this module offers high versatility for mixed voltage applications.

Specifications and Performance

Operational Logic and Safety

The EM 222 relay module serves as a robust bridge between logic and field devices. It uses dry contact relays to drive high-current actuators or valves. Additionally, integrated LEDs provide real-time status feedback for every channel. This visual aid simplifies troubleshooting on the factory floor. The internal circuitry limits power consumption to roughly 2 Watts. Moreover, the hardware design ensures high electromagnetic compatibility in noisy environments. Each relay channel supports up to 2 Amperes of continuous current. Therefore, the module reliably controls small motors and solenoid starters.

Programming and System Compatibility

• Automated manufacturing cells and assembly lines.
• Industrial process control and liquid handling systems.
• Building automation and climate control logic.
• Packaging machinery requiring frequent relay switching.
