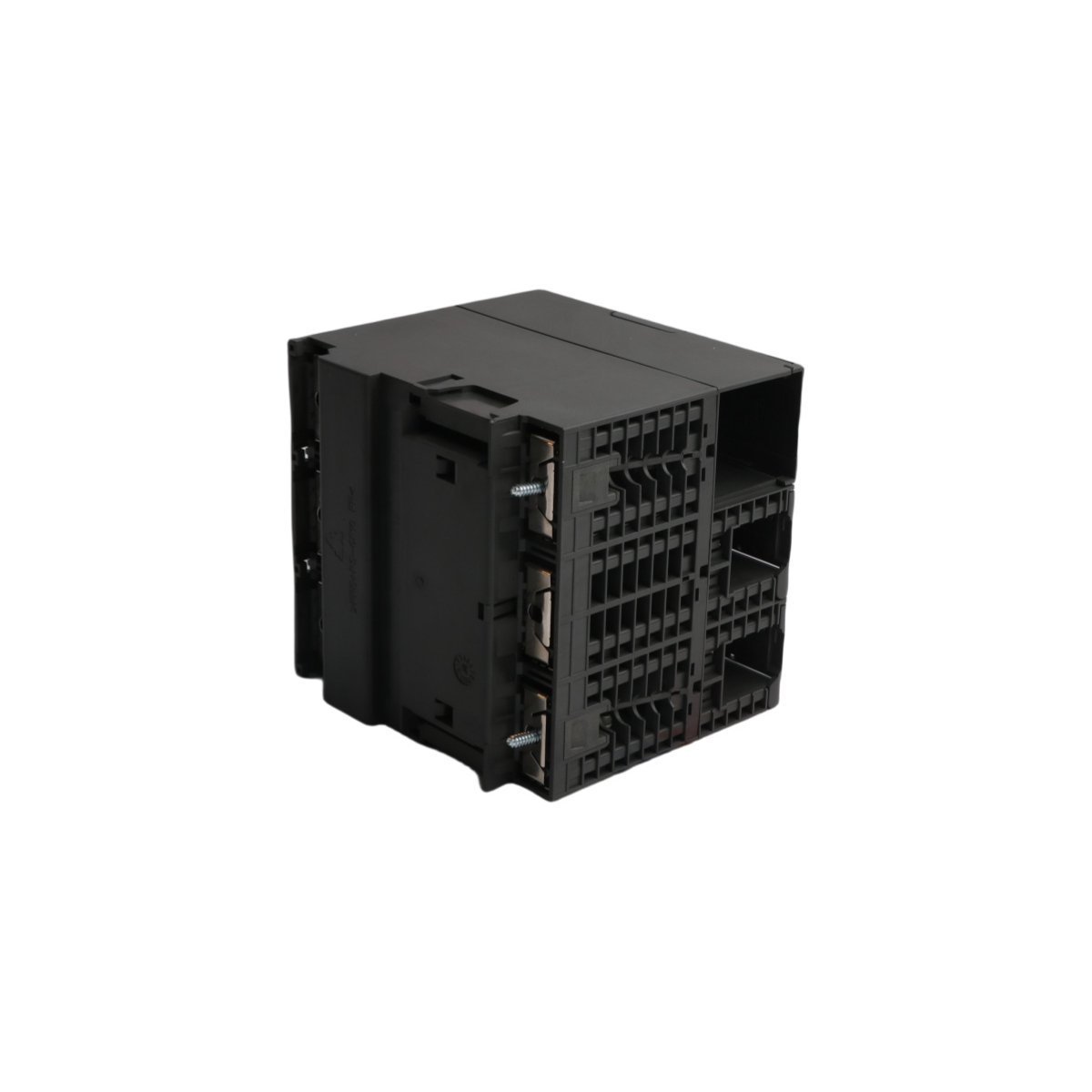

Siemens 6ES7313-5BE01-0AB0 CPU 313C Compact CPU

The Siemens 6ES7313-5BE01-0AB0 is a highly integrated compact controller belonging to the proven SIMATIC S7-300 product family. This CPU provides a comprehensive solution for applications requiring high-density I/O within a restricted installation space. It effectively combines processing power, communication interfaces, and diverse input/output channels into a single hardware unit.

Industrial operators utilize this module to manage medium-scale automation tasks without mounting multiple expansion cards. The CPU 313C features an MPI interface for networking with other controllers or HMI panels. Its robust design supports reliable operation in demanding factory environments. Furthermore, the integrated architecture simplifies wiring and reduces the overall footprint inside the control cabinet.

This controller supports various technological functions, including high-speed counting and PID control. It ensures high system availability and long-term part compatibility for existing S7-300 installations. The module requires a Micro Memory Card (MMC) for operation to store the user program and system data.

Technical Specifications and I/O Configuration

Core Functional Characteristics

Comprehensive Integrated I/O

The unit provides a balanced mix of 24 digital inputs and 16 digital outputs for discrete control. Additionally, five analog inputs and two analog outputs handle continuous process variables. A dedicated PT100 input allows for direct temperature sensing without external transmitters.

Advanced Technological Features

Three integrated high-speed counters support frequencies up to 30 kHz for positioning tasks. The CPU also manages complex frequency measurements and pulse width modulation directly. These onboard functions eliminate the cost of specialized function modules.

Reliable Communication and Programming

The built-in MPI port facilitates easy integration into multi-node industrial networks. The controller remains fully compatible with STEP 7 engineering software. This ensures a familiar programming environment for maintenance teams and system integrators.
