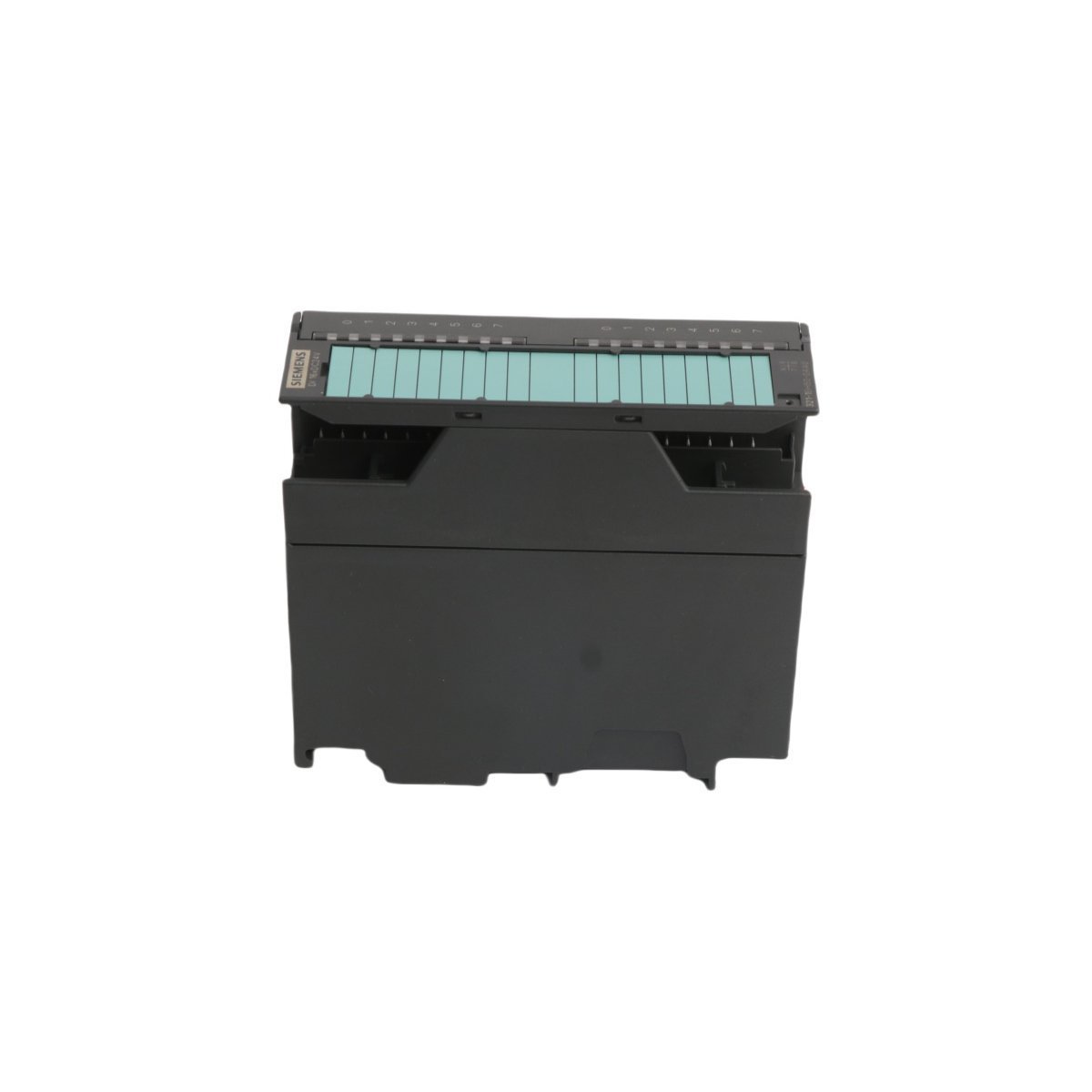

The Siemens 6ES7321-1BH50-0AA0 is a 16-channel digital input module for SIMATIC S7-300 PLCs. Operating at 24V DC, this isolated SM 321 module provides precise signal acquisition for industrial monitoring and control.
The Siemens 6ES7321-1BH50-0AA0 serves as a reliable interface for digital signal processing. This SM 321 module specifically captures binary signals from the field level. It features 16 digital inputs designed for source input (PNP) configurations. Consequently, it effectively bridges the gap between sensors and the central processor. Engineers utilize this module to monitor switches, proximity sensors, and auxiliary contacts. Its robust design ensures stable performance in high-speed manufacturing environments. Furthermore, the unit maintains high signal integrity even in electrically noisy settings.
The module operates on a nominal 24V DC power supply. It provides a wide functional voltage range from 20.4V to 28.8V DC. Because it features galvanic isolation, the hardware protects internal PLC logic from field surges. The unit exhibits a very low power loss of approximately 3.5 Watts. This thermal efficiency prevents overheating within crowded control cabinets. Additionally, the inputs offer a typical debounce delay to filter out mechanical contact chatter. These characteristics make it a cornerstone for precise automation sequences.
This digital input module fits perfectly into the SIMATIC S7-300 mounting rail. Its slim 40mm width allows for high-density I/O configurations. The front connector requires a standard 20-pole wiring block for quick setup. Moreover, the module supports the “Hot Swapping” function when used with active bus modules. This capability allows for maintenance without stopping the entire production line. The integrated LEDs provide immediate visual feedback for each input channel status. Therefore, technicians can perform rapid troubleshooting during routine inspections.
| Feature | Specification Details |
| Model Number | 6ES7321-1BH50-0AA0 |
| Input Channels | 16 Digital Inputs |
| Input Type | Source Input (PNP) |
| Rated Voltage | 24V DC |
| Power Consumption | 3.5 W (Typical) |
| Connection Method | 20-pole Front Connector |
| Galvanic Isolation | Yes (500V DC) |
| Module Weight | 0.20 kg |
The 6ES7321-1BH50-0AA0 excels in diverse industrial sectors globally. It frequently appears in automotive assembly lines and water treatment facilities. Because the hardware meets strict German manufacturing standards, it offers long-term durability. The module also integrates seamlessly into distributed I/O stations via ET 200M. This flexibility enables remote monitoring across large plant areas. By implementing this module, facilities achieve a scalable and cost-effective I/O solution. It remains a preferred choice for professional engineers requiring consistent digital feedback.
