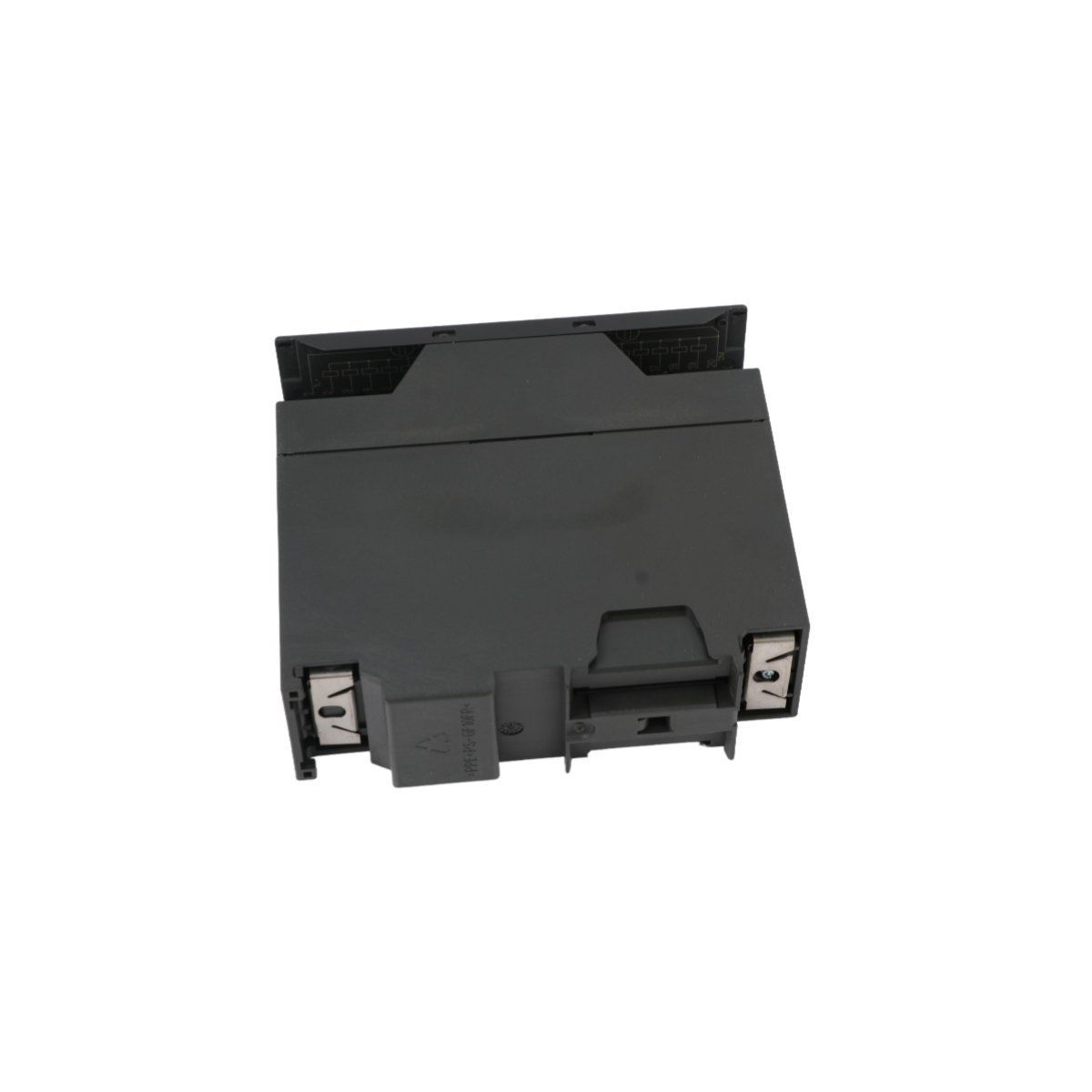

The Siemens 6ES7322-1BH01-0AA0 is a 16-channel digital output module for SIMATIC S7-300 systems. It provides 24V DC/0.5A transistor outputs with short-circuit protection and 500V AC isolation. This SM 322 unit ensures reliable control for industrial actuators and solenoid valves.
The Siemens 6ES7322-1BH01-0AA0 is a high-density digital output module for the SIMATIC S7-300 PLC family. This SM 322 module features 16 individual output channels designed for switching DC loads. It serves as the primary interface between the controller and industrial field devices. Automation engineers utilize this module to drive solenoid valves, DC contactors, and signaling lamps. Moreover, the slim housing design optimizes rack space in electrical control cabinets. This component ensures high availability and reliable signal processing for modern production lines.
| Parameter | Details |
| Model Number | 6ES7322-1BH01-0AA0 |
| Number of Outputs | 16 Channels (2 groups of 8) |
| Rated Load Voltage | 24V DC |
| Output Current | 0.5A per channel |
| Total Current | 4A per group / 8A per module |
| Isolation | 500V AC between bus and field |
| Power Loss | 4.9 Watts (maximum) |
| Connection Type | 20-pin front connector |
Each channel provides a rated output current of 0.5A for standard industrial switching tasks. This module includes built-in protection against short circuits to prevent hardware damage. Additionally, internal electronic fuses protect the circuitry from inductive voltage peaks during switching. The 16 outputs operate in two isolated groups of eight channels each. This configuration allows for flexible power distribution across different load types. Consequently, a fault in one group does not affect the operation of the other.
This digital output module integrates perfectly with any S7-300 CPU or ET 200M distributed I/O station. Configuration is straightforward within the STEP 7 or TIA Portal software environments. Furthermore, the 500V AC galvanic isolation protects the PLC backplane from external electrical noise. This feature is vital for maintaining signal integrity in heavy industrial environments. The unit handles high-speed switching requirements for packaging machinery and conveyor systems. Overall, the 6ES7322-1BH01-0AA0 provides a durable solution for precise and secure automation control.
