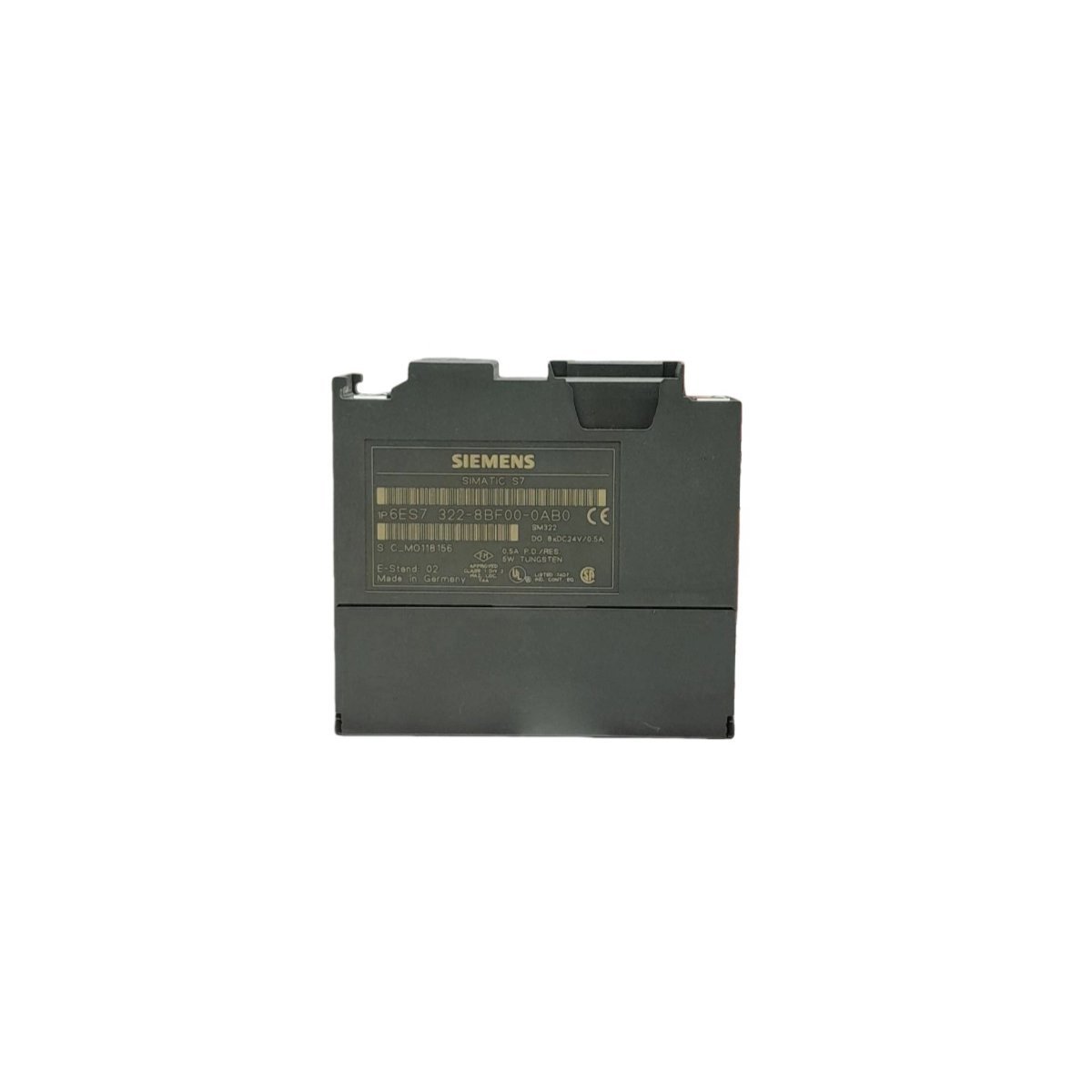

Siemens 6ES7322-8BF00-0AB0 Digital Output Module

The Siemens 6ES7322-8BF00-0AB0 belongs to the reliable SIMATIC S7-300 programmable logic controller family. This digital output module manages up to eight independent channels for industrial switching tasks. It primarily operates at 24V DC to drive actuators like solenoids and small contactors. Because it provides isolated signaling, it ensures high process safety across various manufacturing sectors. Engineers utilize this unit to bridge digital control logic with mechanical field operations. It serves as a cornerstone for both discrete manufacturing and continuous process plants.

Advanced Protection and Integrated Diagnostics

A central advantage of this module is its comprehensive diagnostic suite. The internal circuitry identifies short circuits, external power loss, and wire break conditions instantly. Consequently, maintenance teams can locate faults without performing manual circuit testing. The hardware also includes robust short-circuit protection for every individual output channel. Furthermore, internal electrical isolation separates the backplane bus from the field-side load. This design prevents electrical surges from damaging the central CPU or other rack components. High-speed switching capabilities improve overall machine responsiveness and operational throughput.

Mechanical Design and Installation

The 6ES7322-8BF00-0AB0 features a compact enclosure suitable for standard S7-300 rail mounting. Its physical build utilizes high-grade materials to withstand vibration and mechanical shock. Therefore, it remains stable in harsh environments such as automotive or chemical facilities. Wiring requires a standard 20-pole front connector to simplify the assembly process. This modular approach allows for rapid hardware replacement during system upgrades or repairs. Additionally, the unit draws minimal current from the backplane to optimize energy consumption.

Programming and Ecosystem Compatibility

Integration with the Siemens TIA Portal or Step 7 software remains seamless. Users can easily parameterize output behaviors to suit specific application needs via the interface. The module supports flexible configuration for distributed I/O via PROFINET or PROFIBUS networks. Moreover, it maintains full backward compatibility with older SIMATIC S7-300 hardware revisions. This flexibility makes it an ideal spare part for maintaining legacy automation infrastructure. It remains a globally trusted solution for high-integrity digital output management.
