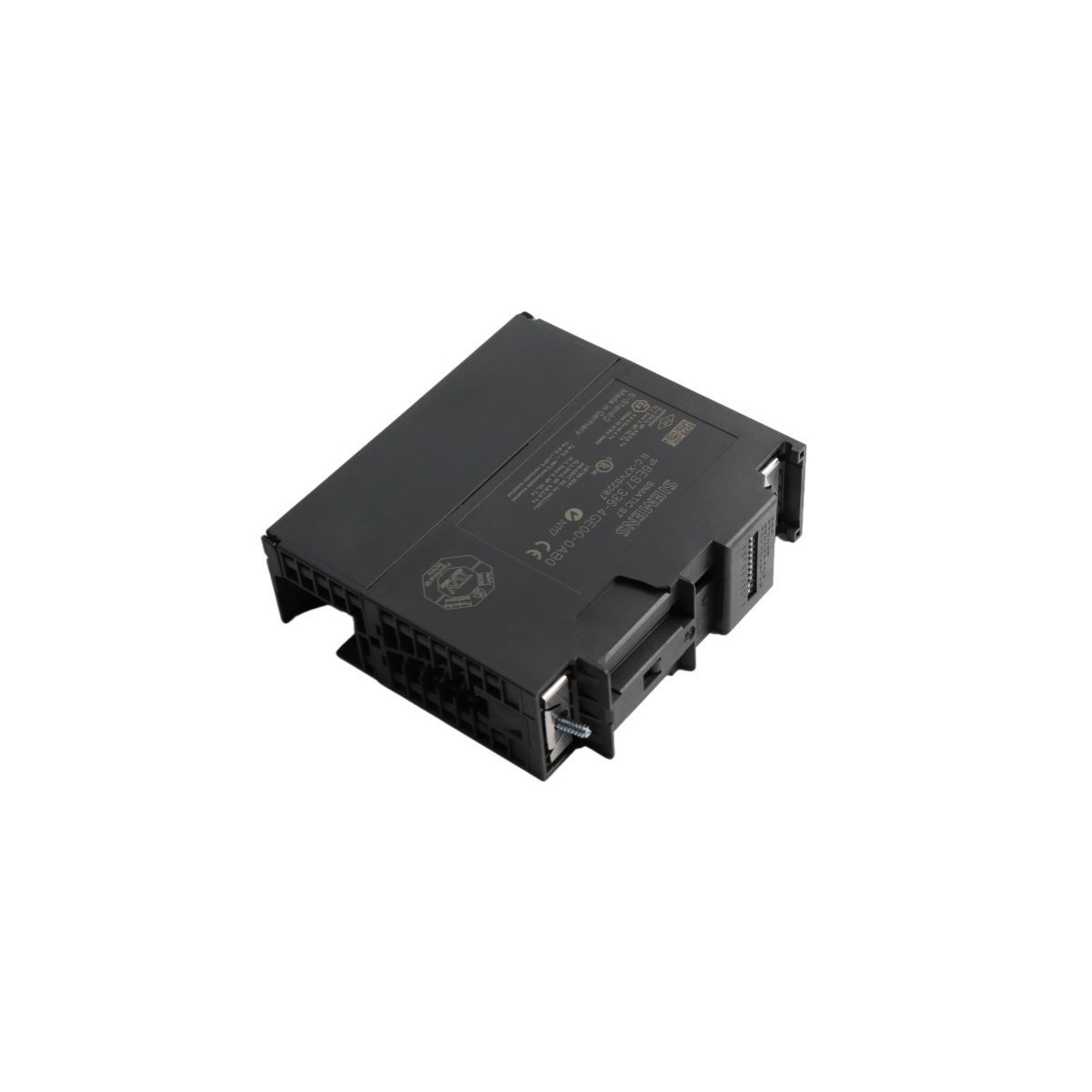

The Siemens 6ES7336-4GE00-0AB0 is a 6-channel fail-safe analog input module for S7-300 systems. It features 15-bit resolution and SIL3/PLe safety ratings. This HART-compatible module provides precise current measurement for safety-instrumented industrial applications.
The Siemens 6ES7336-4GE00-0AB0 is a specialized fail-safe analog input module for the SIMATIC S7-300 platform. This module features six isolated channels for current measurement in safety-related applications. It provides high-resolution 15-bit data conversion for precise process monitoring. Furthermore, the hardware supports the HART protocol for bidirectional communication with intelligent field instruments. Engineers integrate this unit into safety-instrumented systems to ensure functional reliability in hazardous environments. Consequently, it facilitates both safety control and advanced device diagnostics within a single compact footprint.
This analog module complies with the most stringent global safety requirements for industrial automation. It achieves Safety Integrity Level 3 (SIL3) according to IEC 61508 standards. Additionally, the unit meets Performance Level e (PLe) criteria under ISO 13849-1. Because of these certifications, the module is suitable for Category 4 safety architectures. The internal diagnostics continuously monitor hardware health and signal integrity during operation. This proactive monitoring prevents dangerous system failures and protects critical plant infrastructure.
| Feature | Specification |
| Model Number | 6ES7336-4GE00-0AB0 |
| Brand | Siemens |
| Input Channels | 6 Analog Inputs (Fail-Safe) |
| Resolution | 15 Bits + Sign |
| Signal Range | 0/4 to 20 mA (with HART) |
| Supply Voltage | 24V DC |
| Power Consumption | 150mA (typical) |
| Connection | 20-pole Front Connector |
The module operates efficiently with a low current draw from the backplane bus. Its compact housing saves valuable rail space in decentralized control cabinets. Since the unit originates from Siemens’ German manufacturing facilities, it offers superior build quality. Maintenance teams benefit from extensive diagnostic LEDs that indicate channel-specific faults. Moreover, the HART functionality allows for remote configuration of smart sensors without interrupting safety functions. This capability streamlines commissioning and reduces the need for manual field inspections.
Heavy industrial sectors like oil and gas processing utilize this module for safety-critical monitoring. It also performs reliably in chemical plants and power generation facilities. The robust design withstands the electrical interference common in large-scale automation projects. Transitioning between standard and safety tasks is seamless within the SIMATIC manager environment. Ultimately, the 6ES7336-4GE00-0AB0 serves as a dependable interface for high-precision, safety-mandated analog signal acquisition.
