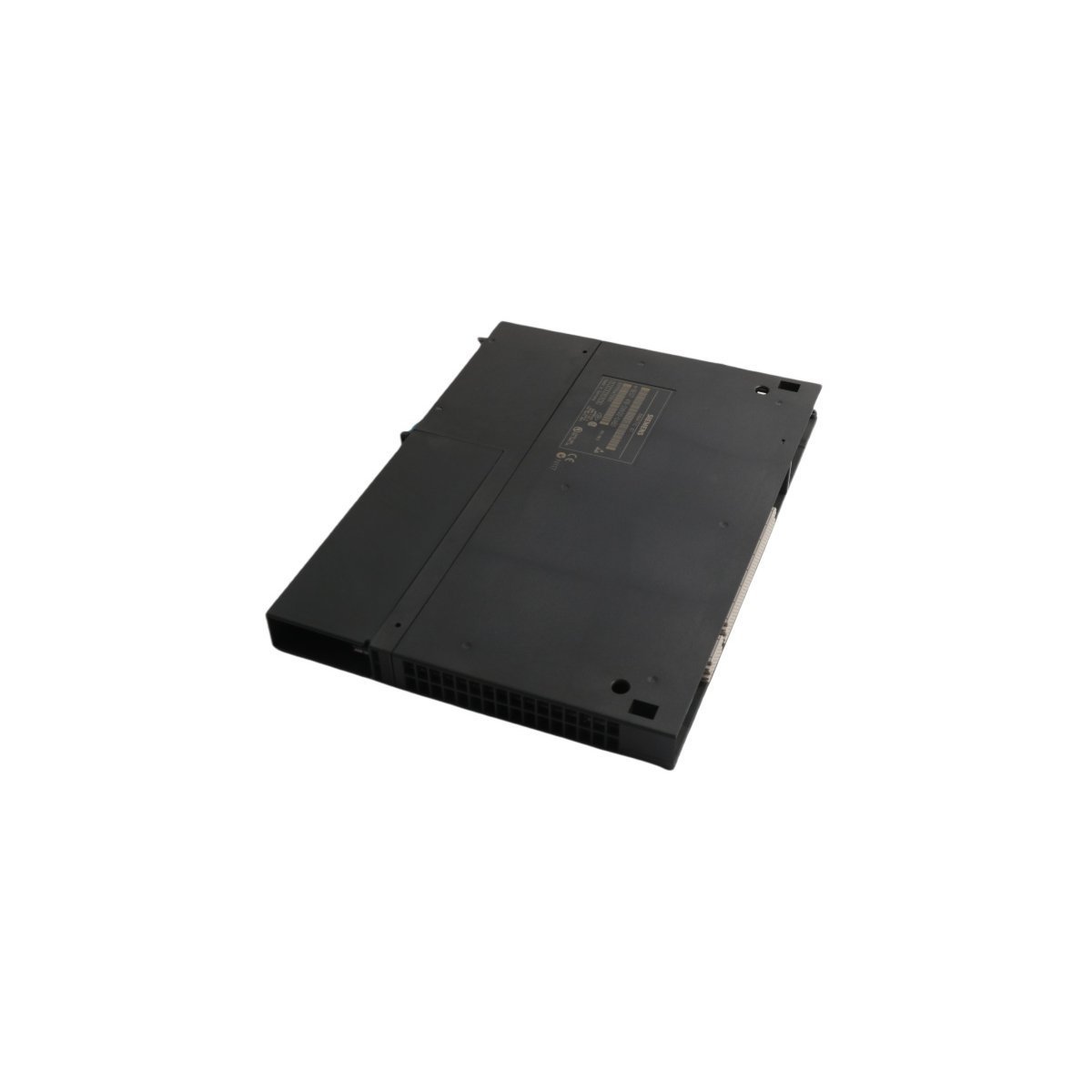

Siemens 6ES7416-2XK02-0AB0 CPU 416-2 DP Processor Module

The Siemens 6ES7416-2XK02-0AB0 represents a high-performance central processing unit within the SIMATIC S7-400 family. This module manages complex automation tasks with superior speed and efficiency. Specifically, it features 3.2 MB of integrated work memory to handle large user programs. The processor executes bit instructions in just 0.08 µs for rapid system response.

This controller excels in mid-to-high-end applications across the manufacturing and process sectors. It utilizes a robust design for continuous industrial operation. Furthermore, the unit supports extensive expansion for sophisticated machine control. It acts as the intelligent heart of a scalable automation architecture.

Technical Specifications and Data

Core Functional Capabilities

High-Speed Communication Interfaces

The module includes two integrated ports for versatile networking. The first port supports both MPI and PROFIBUS DP protocols. Meanwhile, the second interface serves as a dedicated PROFIBUS DP master or slave. These connections facilitate seamless data exchange between the CPU and distributed I/O. As a result, users achieve optimized synchronization across the entire plant floor.

Reliable Memory Management

The 6ES7416-2XK02-0AB0 organizes its 3.2 MB memory into separate code and data blocks. This structure prevents program interference and improves processing efficiency. Additionally, the CPU supports external memory cards for permanent data storage. This ensures that critical system parameters remain safe during power failures.

Sophisticated Diagnostic Features

Siemens integrated advanced diagnostic tools directly into the hardware. The CPU monitors system health and reports errors in real time. Maintenance teams can access detailed status information through the STEP 7 software. Consequently, plant operators identify and resolve technical issues with minimal production downtime.
