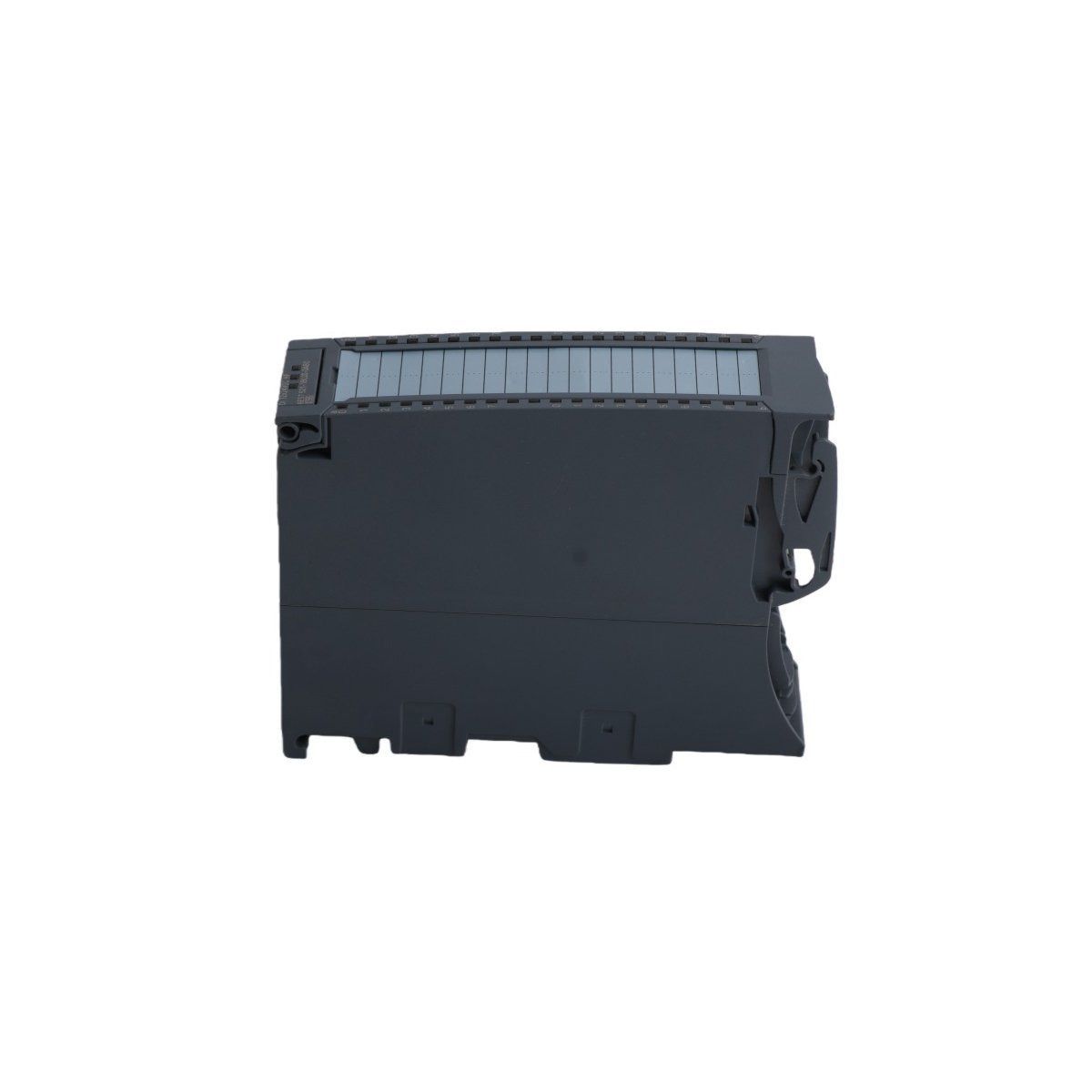

Siemens 6ES7521-1BL00-0AA0 Input Module

The Siemens 6ES7521-1BL00-0AA0 is a high-performance digital input module for the SIMATIC S7-1500 PLC series. This High Feature (HF) module provides 32 digital channels for interfacing field sensors with the controller. It utilizes 24V DC sink inputs and adheres to IEC 61131 Type 3 characteristics.

Engineers select this module for applications requiring high-density I/O and precise signal processing. The module supports isochronous mode for synchronized automation tasks. It also features integrated diagnostics and hardware interrupts to monitor system health in real-time.

Two channels can operate as high-speed counters for pulse detection up to 10 kHz. The hardware supports firmware updates to maintain compatibility with evolving industrial standards. It integrates seamlessly into the TIA Portal environment for streamlined configuration and maintenance.

Key Technical Specifications

Operational Features and Capabilities

• Diagnostic Functions: The module detects wire breaks and short circuits to the ground.
• Hardware Interrupts: It triggers immediate CPU responses based on specific input transitions.
• Isochronous Mode: This feature ensures constant bus cycle times for precision timing.
• Signal Filtering: Users can program input delays to suppress electrical noise.
• Compatibility: The module works with TIA Portal V13 SP1 or higher versions.
• Maintenance Support: Integrated I&M data allows for easy identification and asset management.

Industrial Applications

The 6ES7521-1BL00-0AA0 module excels in complex manufacturing environments. It manages high-speed packaging lines and synchronized motion control systems. Automated assembly plants use these modules for reliable sensor feedback. The High Feature designation makes it suitable for safety-monitored zones and critical process automation.
