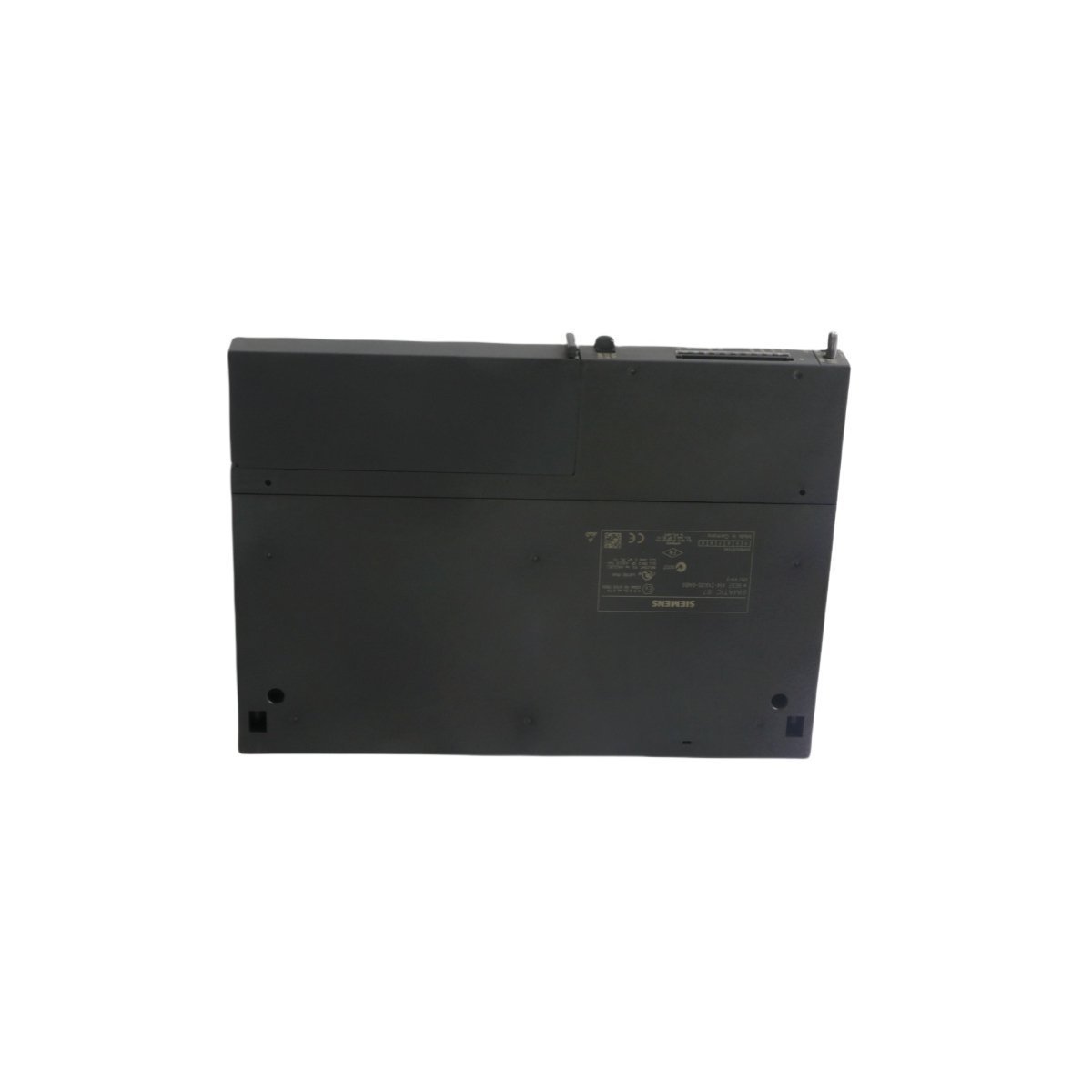

Siemens SIMATIC Central Processing Unit 6ES7414-2XK05-0AB0

Product Overview

The Siemens 6ES7414-2XK05-0AB0 serves as a high-performance central processing unit within the SIMATIC S7-400 controller family. This mid-range CPU addresses the rigorous demands of plant automation and process engineering by balancing computational power with extensive communication flexibility. It integrates seamlessly into complex architectures, providing the necessary logic and memory to manage medium-to-large scale industrial applications.

Technical Capabilities and Performance

This module utilizes a sophisticated architecture to execute control logic with high precision. It features a substantial work memory of 1.6 MB, divided equally between 512 KB for program code and 512 KB for data, which ensures rapid access to critical variables. The processor achieves a command execution time of approximately 0.045 µs for bit operations, significantly reducing cycle times in time-sensitive environments.

Communication and Networking Interfaces

Integration remains a core strength of the CPU 414-2. The hardware includes two onboard interfaces that facilitate diverse networking strategies:

• Combined MPI/DP Interface: Supports multi-point communication and can be configured as a PROFIBUS DP master or slave, reaching transmission rates up to 12 Mbit/s.
• Dedicated PROFIBUS DP Interface: Allows for the expansion of distributed I/O systems, ensuring deterministic data exchange with remote modules.
• S7 Communication Protocols: Enables the CPU to act as both a server and a client. It supports standardized functions such as BSEND/BRCV for large data packets and PUT/GET for simplified cross-platform data access.
• Network Agnostic Logic: Facilitates uniform programming across different physical layers, including Industrial Ethernet and PROFINET, through the use of System Function Blocks (SFBs).

Industrial Applications

Engineers typically deploy the 6ES7414-2XK05-0AB0 in sectors requiring high reliability and modularity. Common applications include:

• Automotive manufacturing assembly lines
• Large-scale chemical processing plants
• Water and wastewater treatment facilities
• Power distribution and monitoring systems

Technical Specifications

• Order Code: 6ES7414-2XK05-0AB0
• Product Series: SIMATIC S7-400
• Processing Speed: 0.045 µs per bit operation
• Integrated Work Memory: 1.6 MB (Total)
• Maximum Number of I/O: 65,536 (Digital) / 4,096 (Analog)
• Interface 1: MPI/PROFIBUS DP (RS 485)
• Interface 2: PROFIBUS DP (RS 485)
• Dimensions: 25 x 290 x 219 mm
• Net Weight: 0.700 kg
