SKU: 6ES7133-1BL11-0XB0

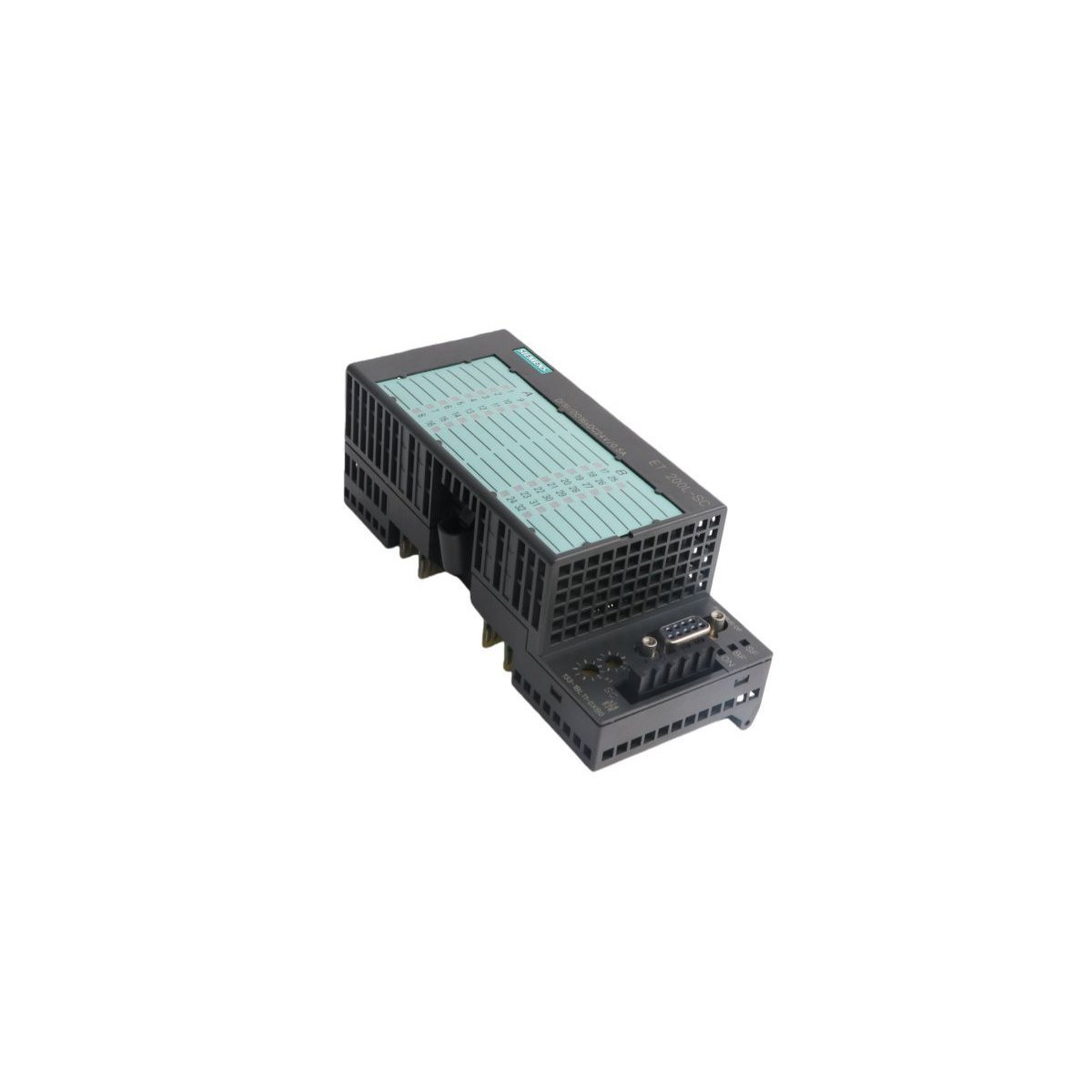

Siemens SIMATIC ET 200L Digital I/O Electronic Module 6ES7133-1BL11-0XB0

The Siemens 6ES7133-1BL11-0XB0 provides 16 digital inputs and 16 digital outputs for the SIMATIC ET 200L system. This compact PROFIBUS-DP electronic module features a pluggable design that allows for “permanent wiring,” simplifying maintenance and saving space in distributed automation architectures.

Product Overview

The Siemens 6ES7133-1BL11-0XB0 streamlines machine-level automation by integrating 16 digital inputs and 16 digital outputs into a single, high-density block. As a core component of the SIMATIC ET 200L distributed I/O system, this module functions as a stationary PROFIBUS-DP node. It optimizes cabinet space while delivering the rugged reliability essential for industrial environments where users prioritize a compact footprint over expansive modularity.

Core Functionality and System Integration

This electronic module serves as the central intelligence for its I/O station. Users create a robust interface for field sensors and actuators by mounting this electronic block onto a compatible terminal block.

Decentralize Control: The unit leverages PROFIBUS-DP communication to facilitate decentralized architectures, which significantly slashes wiring costs and simplifies system complexity.
Maximize Maintenance Efficiency: The two-part design separates the electronics from the terminal wiring to enable “permanent wiring.” Maintenance teams replace the electronic module without touching field cables, which drastically reduces the Mean Time to Repair (MTTR).
Simplify Configuration: System integrators define the PROFIBUS station address directly on the hardware via integrated rotary switches, ensuring rapid commissioning without the need for specialized software tools.

Technical Characteristics and Load Management

Siemens engineered the 6ES7133-1BL11-0XB0 to process diverse industrial signals with high precision and safety:

Execute Input Logic: The 16 digital inputs process 24 VDC signals. The module detects logic “1” between 13–30V and logic “0” between -30 and +5V, while an internal hardware delay of 2 ms to 4.5 ms filters out signal noise.
Drive High Performance: Each of the 16 digital outputs delivers 0.5A. Integrated electronic short-circuit protection actively safeguards the hardware against external field faults.
Adapt to Loads: The module manages various load types with ease. It supports switching frequencies up to 100 Hz for resistive loads and 0.5 Hz for inductive loads.
Extend Cable Reach: The hardware facilitates long-distance installations by supporting shielded cable runs up to 1000 meters for input signals.

Primary Industrial Applications

Manufacturers and engineers utilize this German-engineered module in demanding sectors that require high channel density:

Automate Conveyors: Controls material handling and sorting systems.
Power Packaging Machinery: Manages high-speed wrapping and bottling lines.
Regulate Process Skids: Provides reliable I/O for small-scale chemical or liquid processing.
Support Automotive Assembly: Interfaces with sensors and actuators in sub-assembly stations.
